ZFDC-20-4B-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFDC-20-4B-N

ZFDC-20-4B-N: DescriptionDirectional Coupler, 1MHz Min, 1000MHz Max, 1.5dB Insertion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size105KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFDC-20-4B-N Overview

Directional Coupler, 1MHz Min, 1000MHz Max, 1.5dB Insertion Loss-Max, CASE K18

ZFDC-20-4B-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	N
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	1.5 dB
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.1

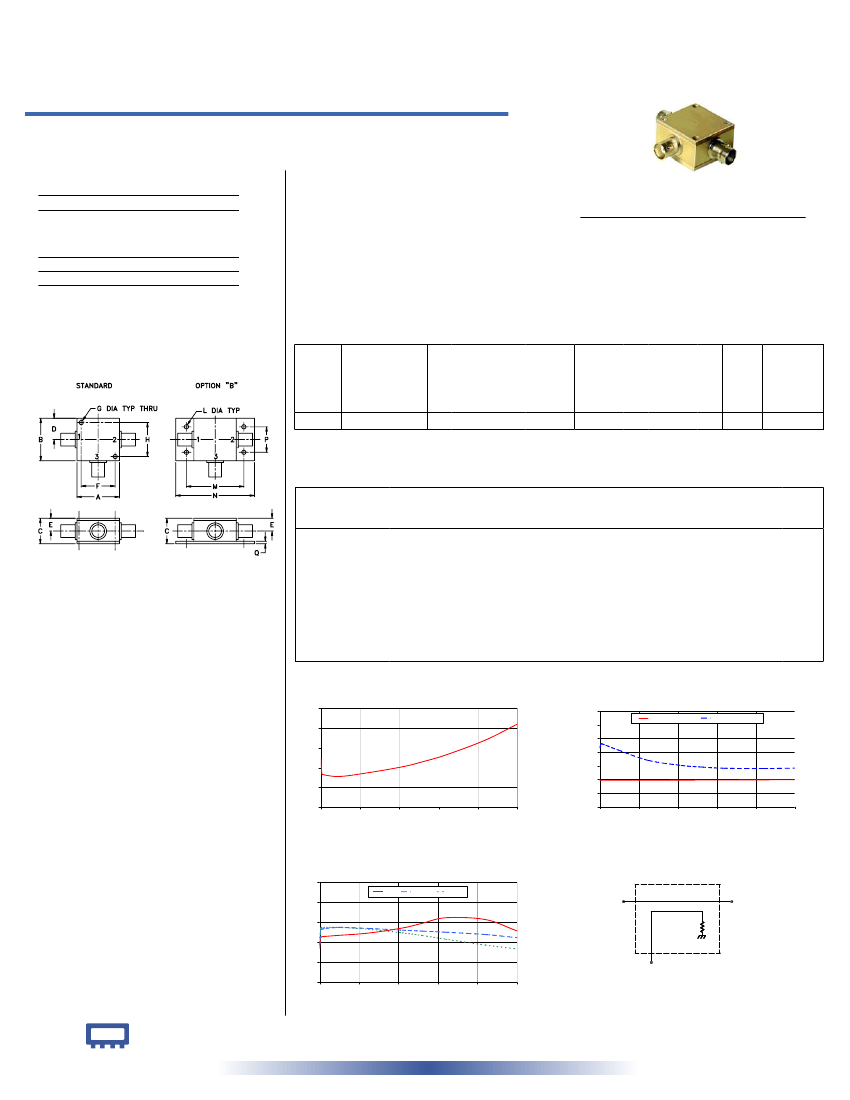

Preview

Download Datasheet

View All

Directional Coupler

50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Coaxial

ZFDC-20-4

1 to 1000 MHz

-55°C to 100°C

Features

Coaxial Connections

INPUT

OUTPUT

COUPLED

• wideband, 1 to 1000 MHz

• excellent directivity, 27 dB typ.

• excellent insertion loss, 0.4 dB typ.

• excellent VSWR, 1.1:1 typ.

• rugged shielded case

BNC version shown

CASE STYLE: K18

Connectors Model

BNC

ZFDC-20-4

SMA

ZFDC-20-4-S

N-TYPE

ZFDC-20-4-N

BRACKET (OPTION"B")

Price

$64.95

$69.95

$2.50

Qty.

(1-9)

(1+)

Applications

• VHF/UHF

• cellular

• instrumentation

• communication receivers & transmitters

Directional Coupler Electrical Speciﬁcations

Outline Drawing

FREQ.

RANGE

(MHz)

-f

1-1000

COUPLING

(dB)

Nom.

19.5±0.5

Flatness

±0.5

MAINLINE LOSS

DIRECTIVITY

(dB)

Min.

Typ.

Min.

Typ.

Min.

VSWR

(:1)

POWER

INPUT

(W)

Max.

2.0

Max.

0.5

Typ. Max. Typ. Max. Typ. Max. Typ.

0.4

1.2

0.4

0.8

1.5

Typ.

1.1

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

1. Mainline loss includes theoretical power loss at coupled port.

Typical Performance Data

Frequency

(MHz)

1.00

5.00

9.00

96.00

248.00

420.00

520.00

640.00

840.00

1000.00

Mainline Loss

(dB)

In-Out

0.49

0.34

0.33

0.31

0.35

0.41

0.46

0.53

0.68

0.84

Coupling

(dB)

In-Cpl

19.58

19.44

19.42

19.47

19.55

19.60

19.66

19.77

19.87

Directivity

(dB)

43.20

45.40

46.16

41.47

34.00

30.27

29.14

28.26

28.03

28.35

23.54

27.48

28.13

28.71

29.63

31.67

33.53

35.77

35.04

30.50

Return Loss

(dB)

Out

24.84

30.16

31.18

31.90

31.49

30.80

30.43

29.99

29.07

27.81

Cpl

24.95

30.85

31.81

31.89

31.18

29.73

28.67

27.20

24.87

23.33

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.63

16.00

.38

9.65

1.00

25.40

.125

3.18

1.000

25.40

.125

3.18

1.688

42.88

2.18

55.37

.75

19.05

.07 grams

70.0

1.78

ZFDC-20-4

MAINLINE LOSS

1.0

MAINLINE LOSS (dB)

0.8

0.6

0.4

0.2

0.0

200

400

600

FREQUENCY (MHz)

800

1000

at RF level of -10 dBm

ZFDC-20-4

COUPLING & DIRECTIVITY

(dB)

200

400

600

FREQUENCY (MHz)

800

1000

at RF level of -10 dBm

COUPLING

DIRECTIVITY

ZFDC-20-4

RETURN LOSS

RETURN LOSS (dB)

200

400

600

FREQUENCY (MHz)

800

1000

at RF level of -10 dBm

electrical schematic

CPL

OUT

INPUT

OUTPUT

COUPLED

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M93827

ZFDC-20-4

WZ/TD/CP

060803

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZFDC-20-4B-N Related Products

	ZFDC-20-4B-N	ZFDC-20-4B	ZFDC-20-4B-S
Description	Directional Coupler, 1MHz Min, 1000MHz Max, 1.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 1000MHz Max, 1.5dB Insertion Loss-Max, CASE K18	Directional Coupler, 1MHz Min, 1000MHz Max, 1.5dB Insertion Loss-Max, CASE K18
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknow
Other features	N	BNC	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm
Maximum insertion loss	1.5 dB	1.5 dB	1.5 dB
JESD-609 code	e0	e0	e0
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.1	1.1	1.1
