PRMA1A05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> PRMA1A05

PRMA1A05: DescriptionDry Reed Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size2MB，3 Pages; ManufacturerCOTO TECHNOLOGY; Websitehttp://www.cotorelay.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PRMA1A05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PRMA1A05	-	-	View	Buy Now

PRMA1A05 Overview

Dry Reed Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

PRMA1A05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COTO TECHNOLOGY
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	6.91 mm
body height	6.71 mm
Body length or diameter	19.61 mm
Maximum coil current (DC)	0.01 A
Coil operating voltage (DC)	3.75 V
Coil power	50 mW
Coil release voltage (DC)	0.8 V
Coil resistance	500 Ω
Maximum coil voltage (DC)	5 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated power R load	10W@200VDC
Contact (DC) maximum rated R load	.5A@200VDC
Contact resistance	150 mΩ
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1400 Vrms
Dielectric strength between breaking contacts	250 Vrms
Electrical life	300000000 Cycle(s)
End contact material	Ruthenium
Input switching control type	Random
Insulation resistance	1000000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8
operating hours	0.5 ms
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB hole count	8
physical size	19.61mm x 6.91mm x 6.71mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.5 ms
seal	EPOXY TERMINAL SEALED
surface mount	NO
Terminal length	0.003 inch
Termination type	SOLDER
weight	1.5 g

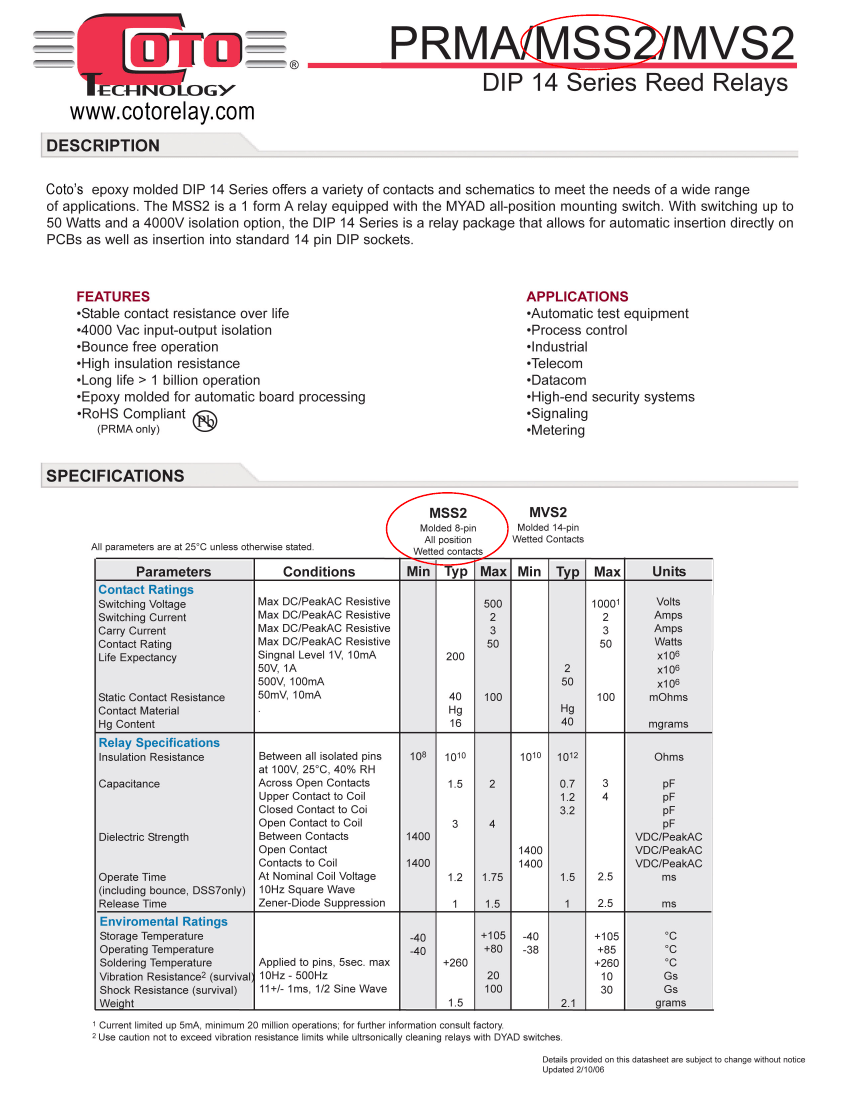

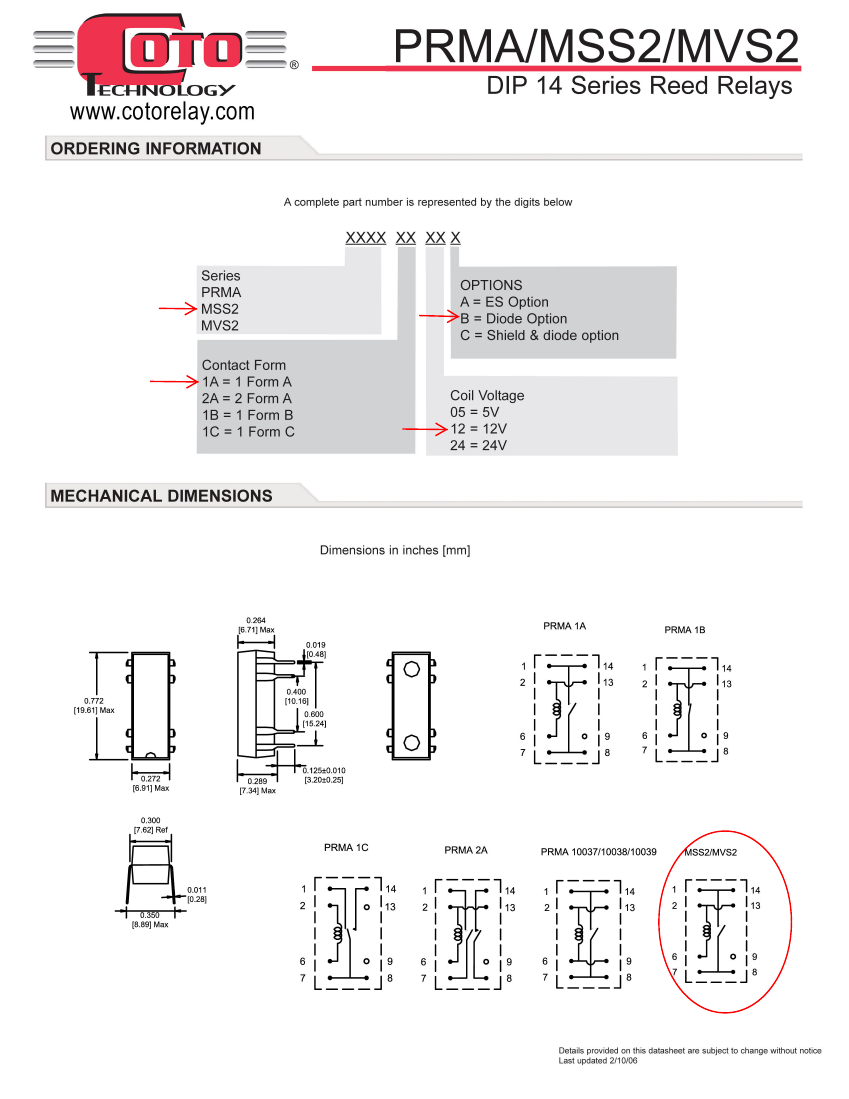

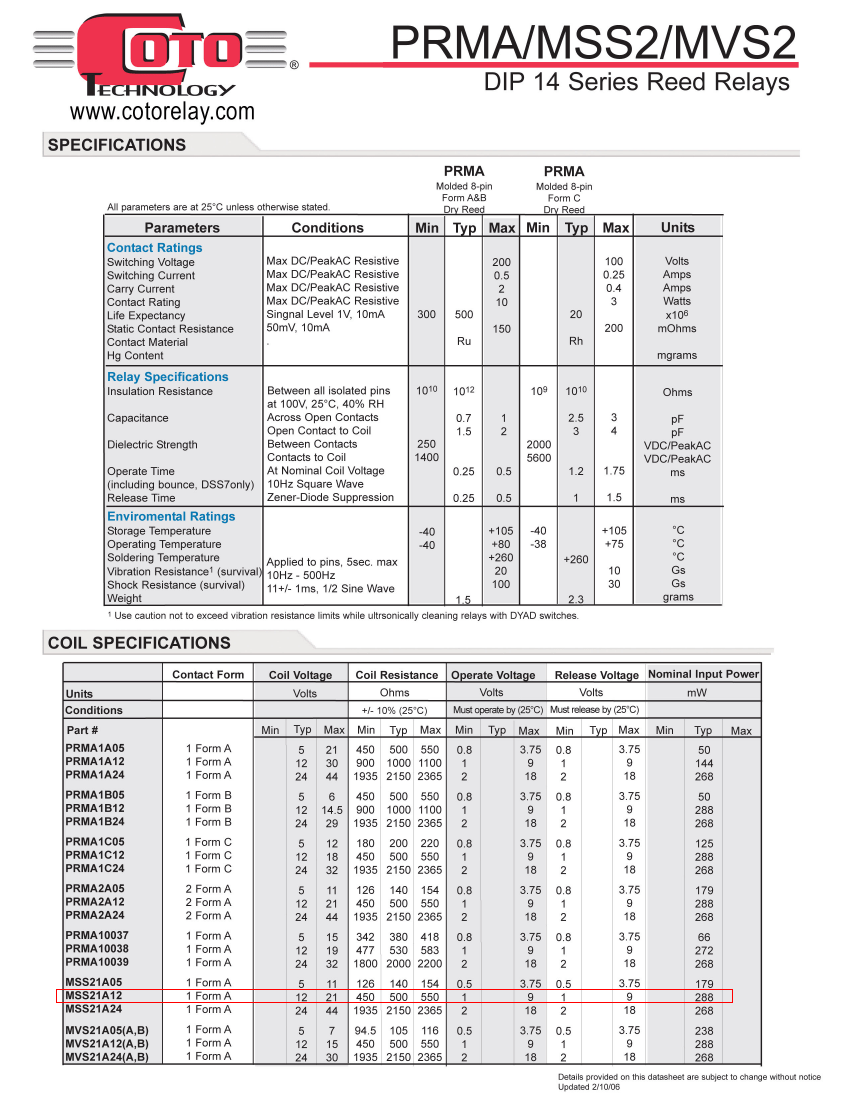

Preview

Download Datasheet

View All

PRMA1A05 Related Products

	PRMA1A05	MSS21A12	MSS21A12B	MSS21A24	PRMA10037	PRMA10038	PRMA10039	MVS21A05A	MVS21A12A
Description	Dry Reed Relay, 1 Form A, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Wet Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Wet Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Wet Reed Relay, SPST, Momentary, 0.011A (Coil), 24VDC (Coil), 268mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, SPST, Momentary, 0.013A (Coil), 5VDC (Coil), 66mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Dry Reed Relay, SPST, Momentary, 0.023A (Coil), 12VDC (Coil), 272mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Dry Reed Relay, SPST, Momentary, 0.011A (Coil), 24VDC (Coil), 268mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Wet Reed Relay, SPST, Momentary, 0.048A (Coil), 5VDC (Coil), 238mW (Coil), 2A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Wet Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY	COTO TECHNOLOGY
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	6.91 mm	6.91 mm	6.91 mm	6.91 mm	6.91 mm	6.91 mm	6.91 mm	6.91 mm	6.91 mm
body height	6.71 mm	6.71 mm	6.71 mm	6.71 mm	6.71 mm	6.71 mm	6.71 mm	6.71 mm	6.71 mm
Body length or diameter	19.61 mm	19.61 mm	19.61 mm	19.61 mm	19.61 mm	19.61 mm	19.61 mm	19.61 mm	19.61 mm
Maximum coil current (DC)	0.01 A	0.024 A	0.024 A	0.011 A	0.013 A	0.023 A	0.011 A	0.048 A	0.024 A
Coil operating voltage (DC)	3.75 V	9 V	9 V	18 V	3.75 V	9 V	18 V	3.75 V	9 V
Coil power	50 mW	288 mW	288 mW	268 mW	66 mW	272 mW	268 mW	238 mW	288 mW
Coil release voltage (DC)	0.8 V	1 V	1 V	2 V	0.8 V	1 V	2 V	0.5 V	1 V
Coil resistance	500 Ω	500 Ω	500 Ω	2150 Ω	380 Ω	530 Ω	2000 Ω	105 Ω	500 Ω
Maximum coil voltage (DC)	5 V	12 V	12 V	24 V	5 V	12 V	24 V	5 V	12 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	.5A@200VAC	2A@500VAC	2A@500VAC	2A@500VAC	.5A@200VAC	.5A@200VAC	.5A@200VAC	2A@1000VAC	2A@1000VAC
Maximum contact current (AC)	0.5 A	2 A	2 A	2 A	0.5 A	0.5 A	0.5 A	2 A	2 A
Maximum contact current (DC)	0.5 A	2 A	2 A	2 A	0.5 A	0.5 A	0.5 A	2 A	2 A
Contact (DC) maximum rated R load	.5A@200VDC	2A@500VDC	2A@500VDC	2A@500VDC	.5A@200VDC	.5A@200VDC	.5A@200VDC	2A@1000VDC	2A@1000VDC
Maximum contact voltage (AC)	200 V	500 V	500 V	500 V	200 V	200 V	200 V	1000 V	1000 V
Maximum contact voltage (DC)	200 V	500 V	500 V	500 V	200 V	200 V	200 V	1000 V	1000 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms	1.75 ms	1.75 ms	1.75 ms	0.5 ms	0.5 ms	0.5 ms	2.5 ms	2.5 ms
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-38 °C	-38 °C
physical size	19.61mm x 6.91mm x 6.71mm	19.61mm X 6.91mm X 6.71mm	19.61mm x 6.91mm x 6.71mm	19.61mm x 6.91mm x 6.71mm	19.61mm x 6.91mm x 6.71mm	19.61mm x 6.91mm x 6.71mm	19.61mm x 6.91mm x 6.71mm	19.61mm X 6.91mm X 6.71mm	19.61mm X 6.91mm X 6.71mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Relay type	DRY REED RELAY	WET REED RELAY	WET REED RELAY	WET REED RELAY	DRY REED RELAY	DRY REED RELAY	DRY REED RELAY	WET REED RELAY	WET REED RELAY
release time	0.5 ms	1.5 ms	1.5 ms	1.5 ms	0.5 ms	0.5 ms	0.5 ms	2.5 ms	2.5 ms
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Electrical life	300000000 Cycle(s)	200000000 Cycle(s)	-	200000000 Cycle(s)	300000000 Cycle(s)	300000000 Cycle(s)	300000000 Cycle(s)	2000000 Cycle(s)	2000000 Cycle(s)
