PP-015

Description
1.0 x 3.3 mm, Hexagonal Cover, Strain Relief, Modular, Dc Power Plug Connector
CategoryThe connector    The connector
File Size284KB,3 Pages
ManufacturerCUI Devices
Environmental Compliance
Download Datasheet Parametric View All

PP-015 Online Shopping

Suppliers Part Number Price MOQ In stock
PP-015 - - View Buy Now

PP-015 Overview

1.0 x 3.3 mm, Hexagonal Cover, Strain Relief, Modular, Dc Power Plug Connector

PP-015 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCUI Devices
Objectid4004454864
Reach Compliance Codecompliant
compound_id318839067
Body/casing typePLUG
Connector typeCIRCULAR DC POWER CONENCTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
DIN complianceNO
IEC complianceNO
MIL complianceNO
OptionsGENERAL PURPOSE
Pin diameter1 mm
Rated current (power)6 A
Rated voltage24 V
Additional Resources:
Product Page
|
3D Model
date
page
06/10/2020
1 of 3

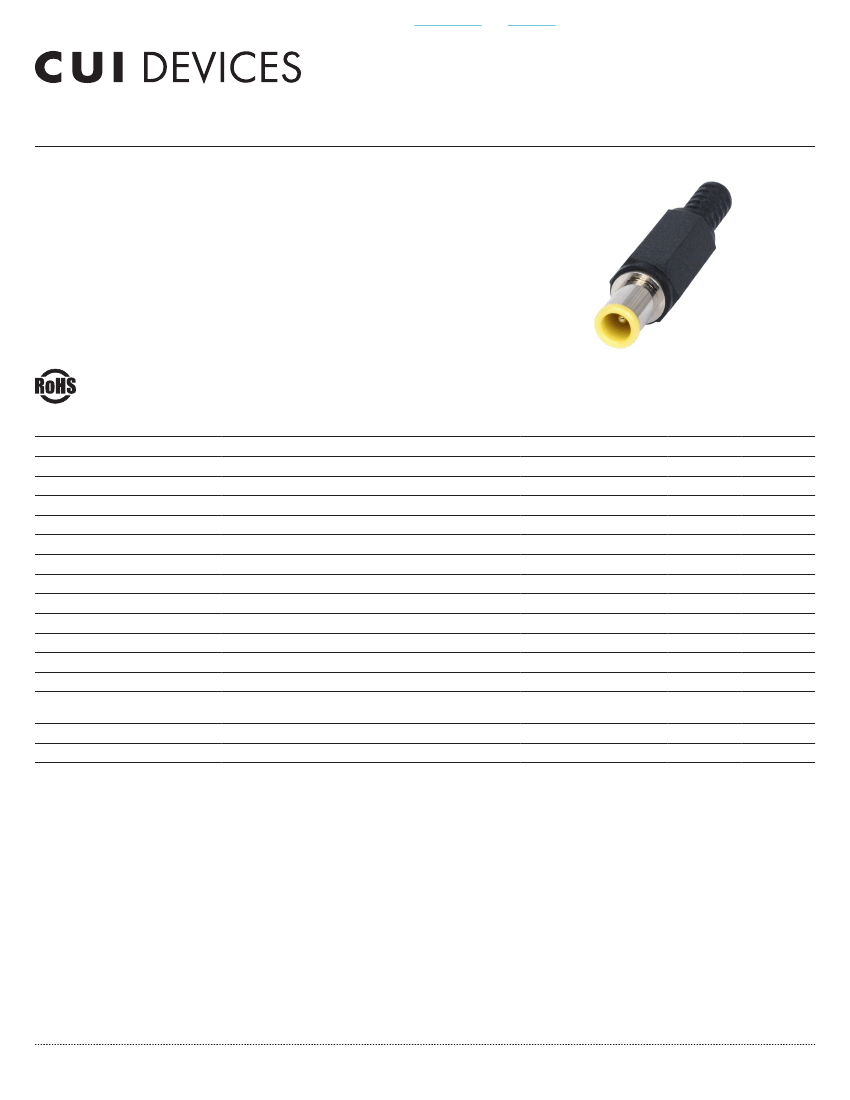

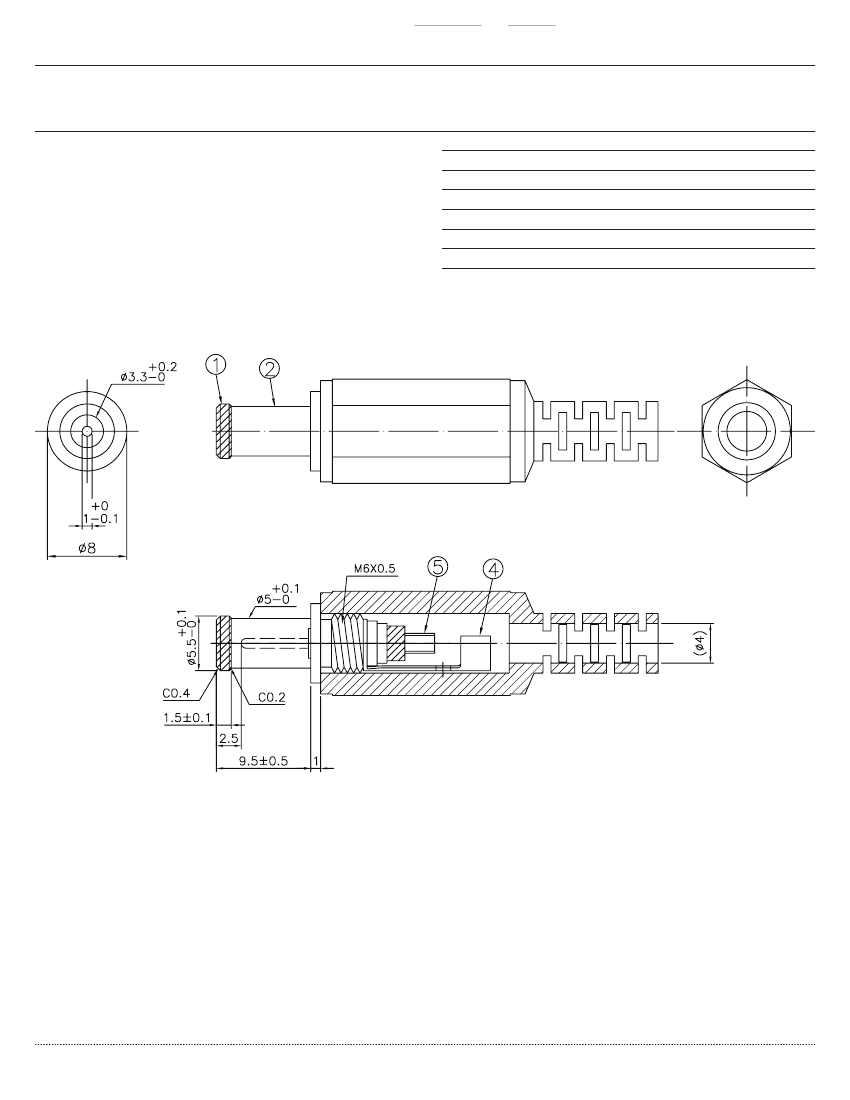

MODEL:
PP-015
DESCRIPTION:
DC POWER PLUG
FEATURES
• cable mount
• 5 A current rating
• hexagonal cover
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
insulation resistance
voltage withstand
insertion force
withdrawal force
operating temperature
operating humidity
life
flammability rating
RoHS
see material table
yes
5,000
between plug and jack
at 500 Vdc
for 1 minute
when mating with a standard jack
when mating with a standard jack
0.3
0.3
-25
100
500
3.0
3.0
70
85
conditions/description
min
typ
24
5
30
max
units
Vdc
A
mΩ
MΩ
Vac
kgf
kgf
°C
%
cycles
SOLDERABILITY
parameter
hand soldering
conditions/description
for maximum 1 second
min
380
typ
400
max
420
units
°C
