HFR-PAT3042SC-10-C-T(1)

Description
Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE-3
CategoryWireless rf/communication    Radio frequency and microwave
File Size151KB,3 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

HFR-PAT3042SC-10-C-T(1) Overview

Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE-3

HFR-PAT3042SC-10-C-T(1) Parametric

Parameter NameAttribute value
MakerTT Electronics plc
Reach Compliance Codeunknown
Nominal attenuation10 dB
Characteristic impedance50 Ω
structureCOMPONENT
Maximum operating frequency3000 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Maximum voltage standing wave ratio1.2
High Frequency
Surface Mount Attenuators
PAT Series
Frequency operation to 10 GHz
Industry standard 0805, 1206, 1612 chip sizes
Low parasitic capacitance and inductance
Thin film stability over time and temperature
IRC Advanced Film Division

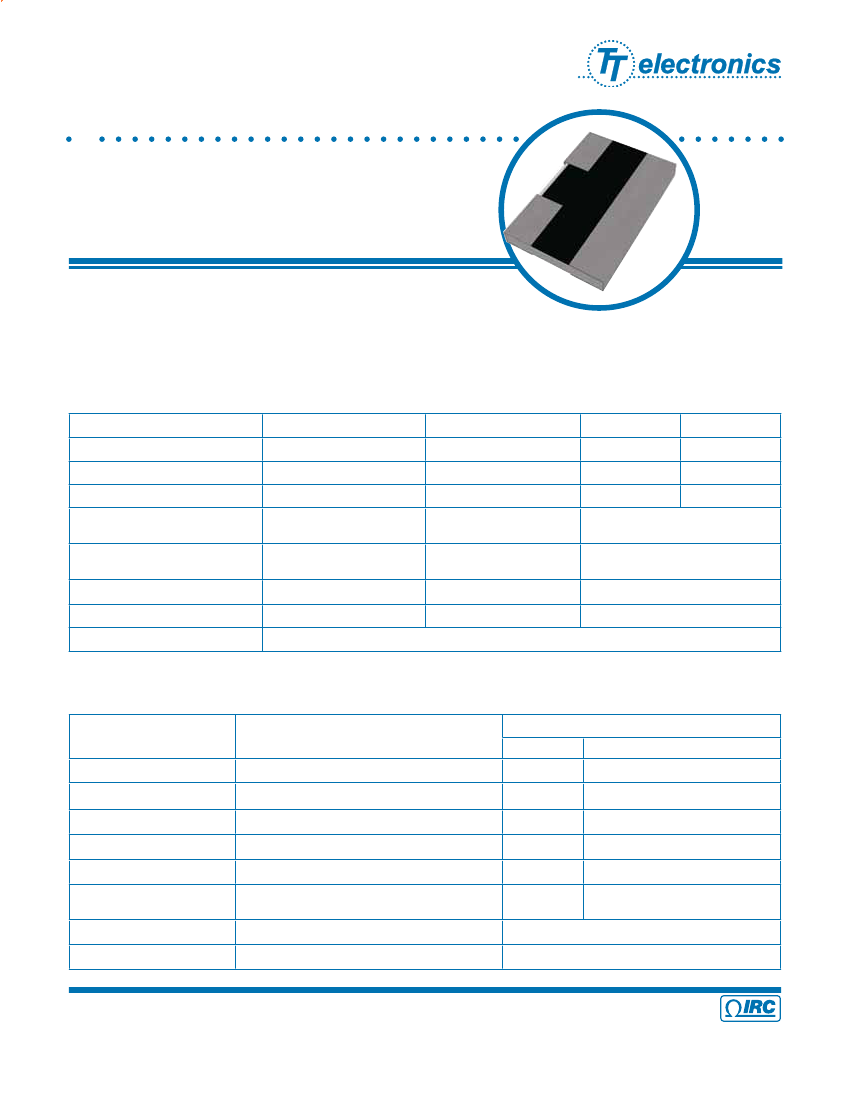

The PAT chip attenuator series are available in a wide range of power
ratings from 100mW to 250mW. The surface mount package is ideal for
applications where parasitic capacitance and inductance are concerns. Typical applications include wireless
communication receivers and transmitters.
Electrical Data
PAT1220
Impedance
Frequency Range
VSWR
Attenuation
Attenuation Tolerance
TCR
Power Rating
Operating Temperature Range
50
DC to 10 GHz
1.3
0, 1, 2, 3, 4, 5, 6,
7, 8, 9, 10dB
±0.3dB
±50ppm/°C
100mW
PAT1632
50
DC to 3GHz
1.3
0, 1, 2, 3, 4, 5,
6, 7, 8, 9, 10, 16dB
0 to 10dB: ±0.3dB
16dB: ±0.5dB
±50ppm/°C
125mW
-55°C to +125°C
PAT3042SC
50
DC to 3GHz
1.2
PAT3042SD
75
DC to 2GHz
1.3
0, 1, 2, 3, 4, 5,
6, 7, 8, 9, 10, 16, 20dB
0 to 10dB: ±0.3dB
16, 20dB: ±0.5dB
±25ppm/°C
250mW
Environmental Data
Test Condition
Attenuation
Short Time Overload
Load Life
Moisture Resistance
Temperature Cycle
Resistance to Solder Heat
Terminal Strength
Solderability
Insulation Resistance
2.5 x rated voltage, 5 sec
1000 Hours, 70°C
1000 Hours, 60°C, 95%
5 Cycles, 125°C High, -55 Low
260°C, 10 sec.
Fulcrum dist: 90mm, Bending width: 3mm
Substrate: Glass epoxy t=1.6mm
235°C, 3 sec.
500V, 1 minute
±0.02dB
±0.04dB
±0.04dB
±0.02dB
±0.02dB
±0.02dB
Tolerance
Impedance
±0.2%
±0.5%
±0.5%
±0.2%
±0.2%
±0.2%
>95% coverage
>1000M
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
37
A subsidiary of
TT electronics plc
PAT Series Issue October 2006 Sheet 1 of 3
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
