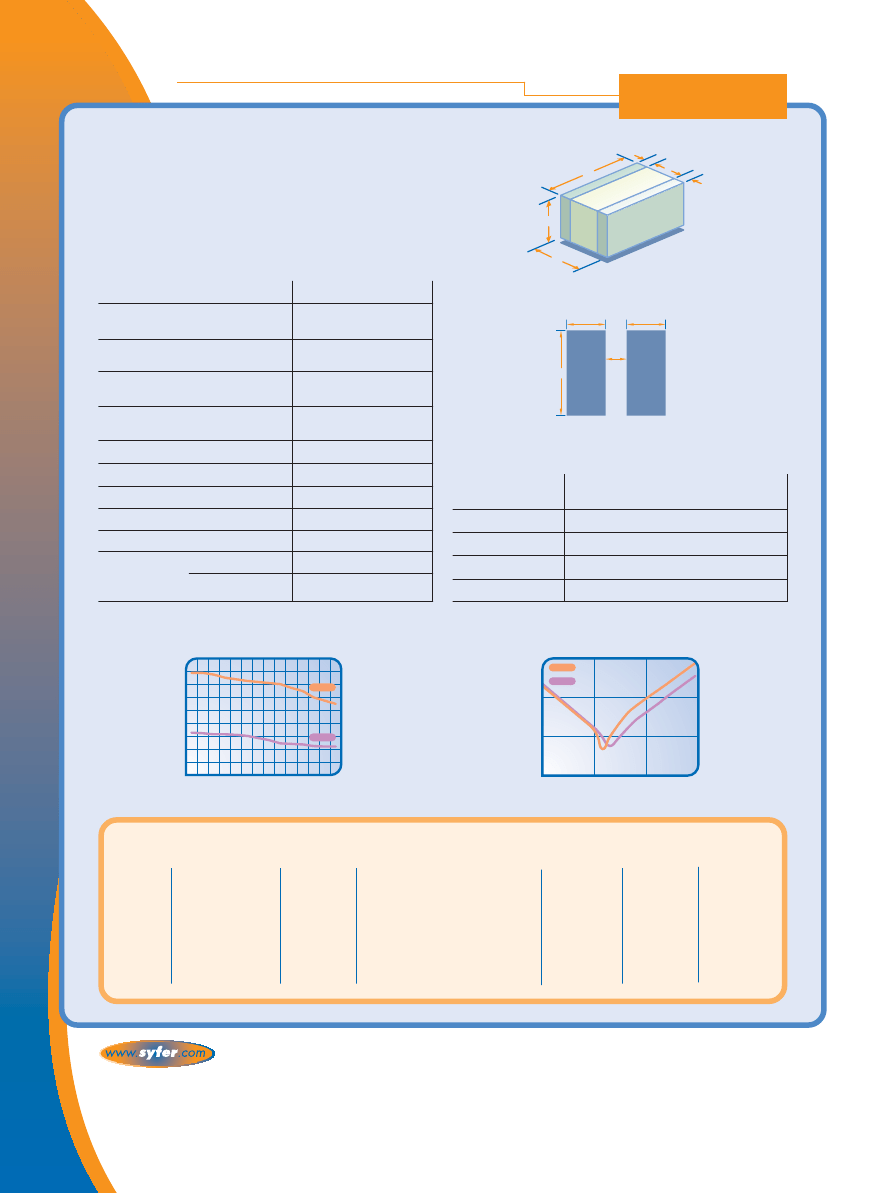

Surface Mount
Chip Capacitors
Low Inductance Chip
X7R
The total inductance of a chip capacitor is determined both by its
length to width ratio and by the mutual inductance coupling
between its electrodes. Thus a 1210 chip size has lower inductance
than a 1206 chip. This design improvement is the basis of Syfer’s
low inductance chip capacitors, where the electrodes are terminated
on the long side of the chip instead of the short side. This results in
a reduction in inductance to only 500pH for the 0612. This range is
designed for use in high speed circuits.
L2
L3
W
L2
T
Specifications
Size mm (inches)
Length (L1)
Width (W)
Thickness (T) max
Termination Bands (L2)
Band Gap (L3)
A
B
Termination Material
Solderability
Reeled Quantity
0612
1.6±0.3
(0.06±0.012)
3.2±0.2
(0.126±0.008)
1.4 max
(0.055 max)
0.2 - 0.4
(0.008 - 0.016)
0.5 min (0.02)
0.75 (0.03)
3.2 (0.126)
Nickel Barrier
IEC 68-2-20
L1
0612 Chip Size
Recommended Solder Lands
0.35"
0.35"
A
B
Available Range
D.C. Rated
Voltage
100V
50V
25V
16V
Capacitance
Range
100nF max.
330nF max.
470nF max.
680nF max.
178mm (7” reel)
330mm (13” reel)
2500
10000
Typical Chip Inductance
1800
1600
Impedance vs Frequency
0612 vs 1206 0.1µF - X7R
10
1206
0612
1.0
Inductance (pH)
1206
1200
1000
800
600
400
200
0
0
1 2.2 4.7 6.8 10 22 33 47 100 150 220 330 470 680
0612
Impedance (Ohms)
1400
.1
.01
1.0
10
100
1000
Capacitance (nF)
Frequency (Mhz)
Ordering Information
0612
Chip Size
0612
J
Termination
J = Nickel Barrier
100
Voltage
100 = 100V
050 = 50V
025 = 25V
016 = 16V
0333
Capacitance
Expressed in picofarads (pF).
First digit is 0.
Second and third digits are significant
figures of capacitance code.
The fourth digit is number of zeros
following.
eg: 0104 = 100µF.
M
Tolerance
M = ±20%
X
Dielectric
X = X7R
T
Packaging
T =178mm
(7”) reel
R =330mm
(13”) reel
B =Bulk
SMHIQLOWINDUCT.ver1
