DESCRIPTION
ECN 3253: UPDATE DWG FORMAT
2
REVISIONS
4/2/08
1
DATE
APPROVED
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
LENGTH
6.0
ALUMINUM HOOD
3
1
4
2
MALE MINI DIN
4 CONNECTOR
D
C
MOLDED
STRAIN RELIEF
2X RCA PHONO
PLUG
MD4M
C
COAX #1 (Y)
3
1
4
2
YELLOW
RCA PLUG
TWO 75 OHM COAX CABLES
(ONE YELLOW, ONE BLACK)
STRANDED CONDUCTORS
COPPER SPIRAL SHIELDS
HIGH FLEX BLACK PVC OUTER JACKET
B
BLACK
COAX#2 (C)
RCA PLUG
B
Y = INTENSITY (LUMINANCE)
C = COLOR (CHROMINANCE)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
APPROVALS
DRAWN BY
DATE
09/13/01
09/13/01
09/14/01
CATEGORY
A
NOTE:
CABLE ASSEMBLY SHALL BE TESTED TO FOR CONTINUITY
INDIVIDUALLY PACKAGE IN A POLYBAG
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2[51] / -0
>60 [1524] ≤120 [3048] = +4 / -0
>120 [3048] ≤300 [7620] = +6 / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
MCCORMICK
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
ENG
APPROVED BY
R.CARRICK
AUDIO VIDEO
PRODUCT DESCRIPTION
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR

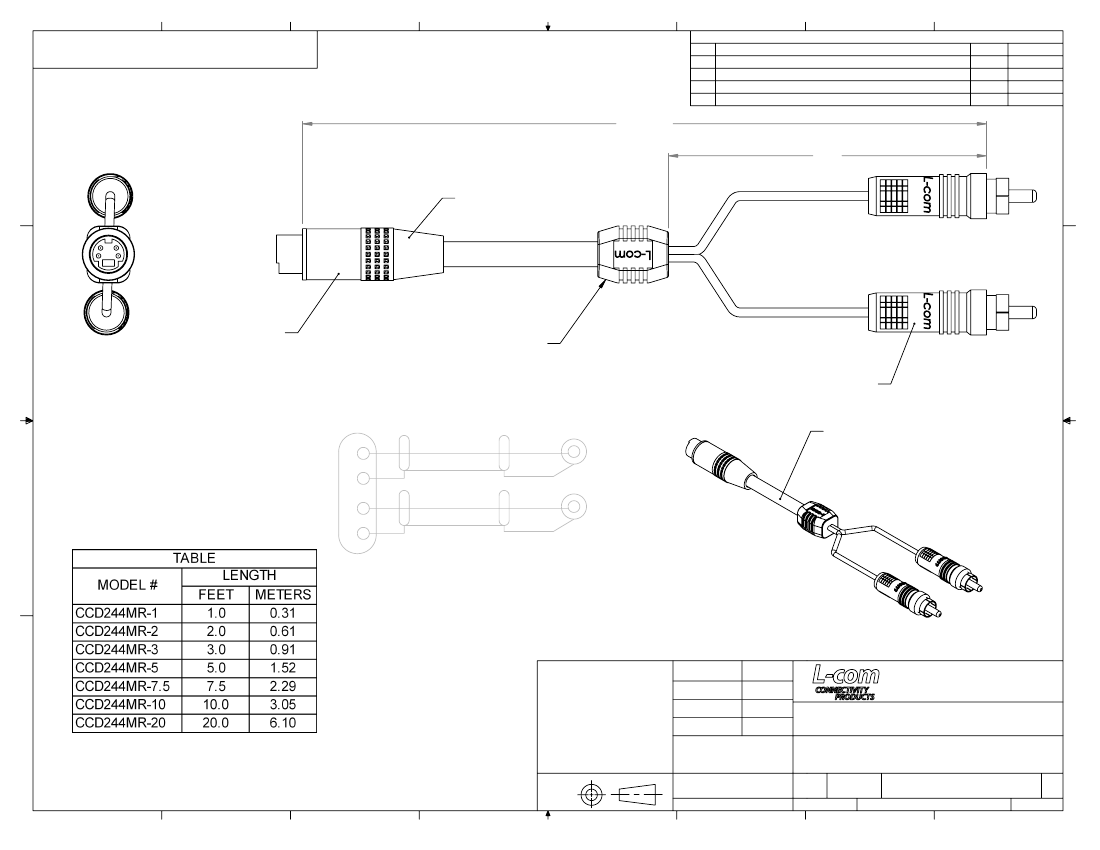

CA SVHS M/DUAL RCA M ASMBL
SIZE
A
43321
2
FSCM NO.
DWG. NO.
CCD244MR
1
REV.
SHEET 1 OF 1
SCALE: NONE
CAD FILE:
CCD244MR.SLDDRW
E
8
7
6
5
4
3
