RN732ELTD1691B25 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RN732ELTD1691B25

RN732ELTD1691B25: DescriptionFixed Resistor, Thin Film, 0.25W, 1690ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1210, CHIP; CategoryPassive components The resistor; File Size76KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RN732ELTD1691B25 Overview

Fixed Resistor, Thin Film, 0.25W, 1690ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1210, CHIP

RN732ELTD1691B25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
Objectid	2039504675
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
compound_id	539482
Other features	ULTRA PRECISION
structure	RECTANGULAR PACKAGE
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	3.2 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, PUNCHED PAPER, 7 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	1690 Ω
Resistor type	FIXED RESISTOR
size code	1210
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

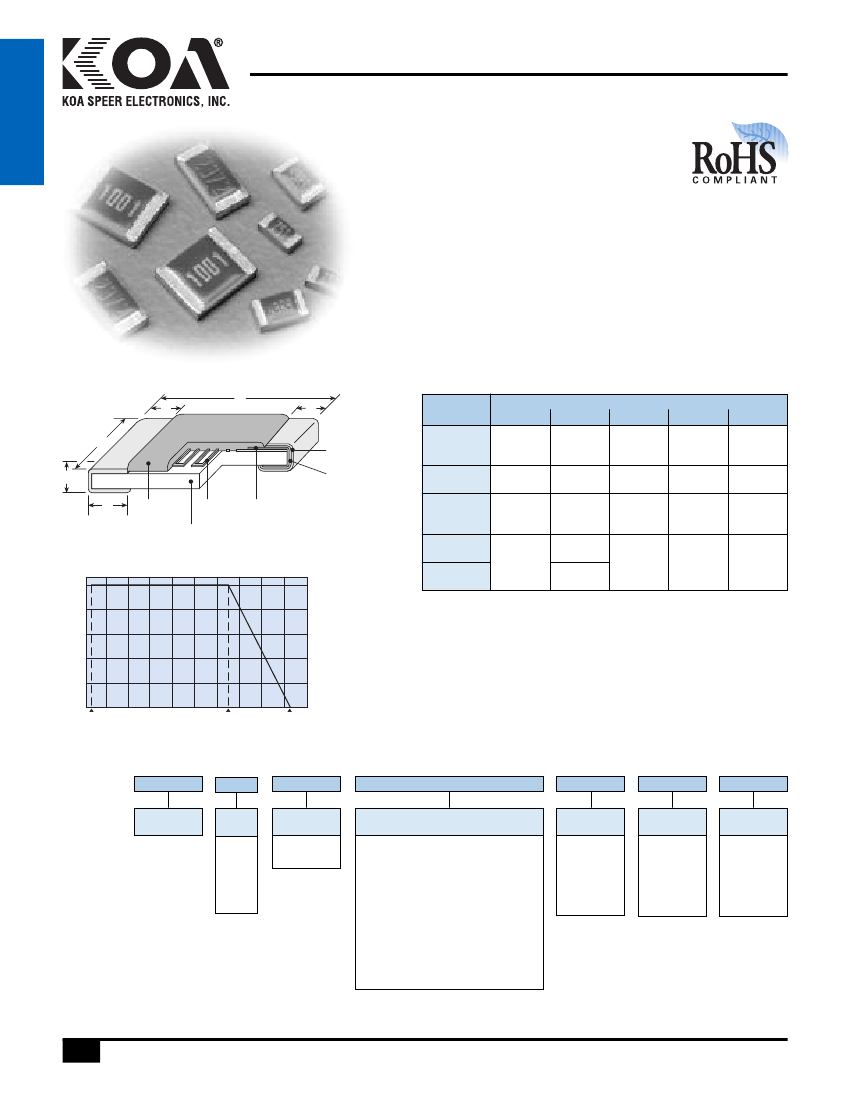

RN73

resistors

ultra precision 0.05%, 0.1%, 1% tolerance

thin film chip resistor

features

•

Nickel chromium thin film resistor element

Anti-leaching nickel barrier terminations

Meets or exceeds EIA 576, MIL-R-55342F

Marking: Four-digit, distinctive color identifiers

Products with lead-free terminations meet

EU RoHS requirements

dimensions and construction

Type

(Inch Size Code)

.039

+.004

-.002

+0.1

)

(1.0

-0.05

Dimensions

inches

(mm)

.02±.002 .008±.004

(0.5±0.05) (0.2±0.1)

.01

+.002

-.004

(0.25

+0.05

)

-0.1

.014±.002

(0.35±0.05)

Solder

Plating

RN73 1E

(0402)

RN73 1J

(0603)

RN73 2A

(0805)

RN73 2B

(1206)

RN73 2E

(1210)

Protective

Coating

Resistive Inner

Film

Electrode

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1) (0.45±0.1)

(0.3±0.1)

.079±.008 .049±.008 .016±.008

(2.0±0.2) (1.25±0.2) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.098±.008

(2.5±0.2)

.02±.012

(0.5±0.3)

.012

(0.3

.016

(0.4

+.008

-.004

+0.2

)

-0.1

+.008

-.004

+0.2

)

-0.1

.02±.004

(0.5±0.1)

.024±.004

(0.6±0.1)

Ceramic

Substrate

Derating Curve

100

% Rated Power

-60 -40

-55

-20

Ambient Temperature

(°C)

100 120

140

125

ordering information

New Part #

RN73

Type

Size

Termination

Material

T: Sn

L: SnPb

Packaging

TP: 0402, 0603, 0805:

7" 2mm pitch punch paper

TD: 0603, 0805, 1206, 1210:

7" 2mm pitch punched paper

TDD: 0603, 0805, 1206, 1210:

10" paper tape

TE: 0805, 1206, 1210:

7" punched plastic

TED: 0805, 1206, 1210:

10" punched plastic

For further information on packaging,

please refer to Appendix A

1002

Nominal

Resistance

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

Tolerance

A: ±0.05%

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1.0%

T.C.R.

(ppm/°C)

100

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

7/31/09

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
