RF Driver Amplifier,
50 - 5000 MHz
Features
•
•
•
•
•
Low Cost Plastic SOT-89 Package
Broadband Operation
Output Intercept Point of up to +45 dBm
Excellent ACPR performance
High Efficiency
MAAMSS0026
V6P
Functional Schematic
Description
M/A-COM’s MAAMSS0026 RF driver amplifier is a
GaAs MMIC which exhibits exceptional linearity
performance as well as featuring high gain in a
low-cost miniature SOT-89 surface mount plastic
package. The device runs off a single +5 volt supply
and draws 160 mA typically.
The MAAMSS0026 is fabricated using M/A-COM’s
iHBT process to realize low current and high power
functionality. The process features full passivation
for increased performance and reliability.
The MAAMSS0026 has been designed to be a
functional driver amplifier from 50 MHz to 5.0 GHz.
Pin 1
RF In
RF Out
Pin Configuration
Pin No.
1
2
Function
RF In
GND
Pin No.
3
Function
RF Out/Bias
Ordering Information
Part Number
MAAMSS0026
MAAMSS0026SMB-01
MAAMSS0026SMB-02
MAAMSS0026SMB-03
MAAMSS0026TR
MAAMSS0026TR-3000
1.
1
Absolute Maximum Ratings
2,3
Parameter
Package
Bulk Packaging
RF Input Power
Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+2 dBm
6.5 volts
-40 °C to +85 °C
-65 °C to +150 °C
800-1000 MHZ Configuration
1800-2000 MHz Configuration
2100-2200 MHz Configuration
1000 piece reel
3000 piece reel
Reference Application Note M513 for reel size information.
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. This amplifier has been designed to operate optimally in linear
mode and will not function reliably in compressed or saturated
mode.
This PRELIMINARY Data Sheet contains information regarding a product M/A-COM has under development. Performance is based
on measured results and target specifications. Commitment to produce in volume is not guaranteed.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RF Driver Amplifier,
50 - 5000 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50 Ohms
4,5,6,7
Parameter
Gain
Return Loss
Output IP3
4
ACPR IS-95
5
ACPR IS-95
6
ACPR UMTS
7
Output P1dB
Noise Figure
Supply Voltage
Supply Current
4.
5.
6.
7.
MAAMSS0026
V6P
Test Conditions
800 - 1000 MHz
1800 - 2200 MHz
800 - 1000 MHz
1800 - 2200 MHz
900 MHz
1900 MHz
900 MHz P
OUT
@ ACPR = 45 dBc
1960 MHz P
OUT
@ ACPR = 45 dBc
2150 MHz P
OUT
@ ACPR = 45 dBc
800 - 1000 MHz
1800 - 2200 MHz
800 - 2200 MHz
—
No RF Applied
Units
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dB
V
mA
Min
—
—
—
—
Typ
18.5
15.5
-15
-14
43
44
21
22
22
24
24
4
5
160
Max
—
—
—
—
—
—
—
—
—
—
—
—
Output IP3 measured at a P
OUT
of +16 dBm per tone and 1 MHz tone spacing.
IS-95A, 9 Channels Forward (1.23 MHz Channel Bandwidth, 30 KHz Adjacent Channel Bandwidth, 900 KHz Offset)
IS-95A, 9 Channels Forward (1.23 MHz Channel Bandwidth, 30 KHz Adjacent Channel Bandwidth, 1.25 MHz Offset)
UMTS 3GPP, Test Model 1, 64 DPCH (3.84 MHz Channel Bandwidth, 5 MHz Channel Spacing)
Shown in the plot below is the available gain of the
device without any matching circuitry.
Available Gain
5V data
25
20
6V data
Gain (dB)
15
10
5
0
0
1000
2000
3000
4000
5000
Frequency (MHz)
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RF Driver Amplifier,
50 - 5000 MHz

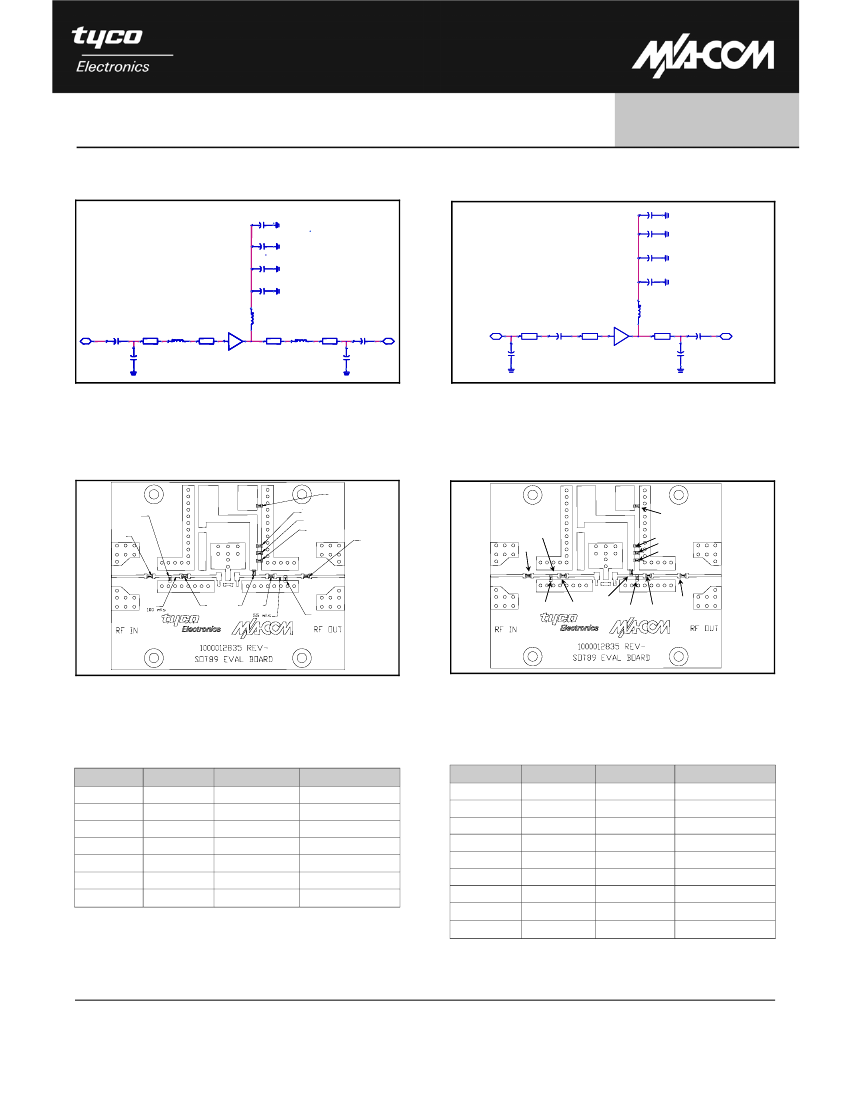

800 - 1000 MHz Schematic
C8
C7
C6
MAAMSS0026
V6P
1700 - 2050 MHz Schematic
C8
C7
C6
C5
C5
L3
C1
50
Ω
5
o
L1
L1
50
Ω
8
o
50
Ω
8
o
L2
50
Ω
2
o
C4
50
Ω
2
o
C2
50
Ω
8
o
50
Ω
7
o
C4
C2
C3
C1
C3
800-1000 MHz PCB Layout
C8
C2
C1
C7
C6
C5
C4
1700 - 2050 MHz PCB Layout
C8
55 mils
R1
C7
C6
C5
L1
L2
L3
C3
C1
C2
L1
C3
C4
R2
800-1000 MHz Component List
Part
C1, C4, C6
C2, C3
C5
C7,C8
L1
L2
L3
1700 - 2050 MHz Component List
Part
C1
C2
C3
C4
C5
C6
C7,C8
L1
R1, R2
Value
1000 pF
6 pF
100 pF
0.1 µF
3.9 nH
5.6 nH
1 nH
Case Size
0402
0402
0402
0402
0402
0402
0402
Manufacturer
Murata
Murata
Murata
Murata
Coilcraft
Coilcraft
Coilcraft
Value
2 pF
12 pF
1.8 pF
39 pF
15 pF
1000 pF
0.1 µF
7.5 nH
0 Ohms
Case Size
0402
0402
0402
0402
0402
0402
0402
0402
0402
Manufacturer
Murata
Murata
Murata
Murata
Murata
Murata
Murata
Coilcraft
Panasonic
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RF Driver Amplifier,
50 - 5000 MHz

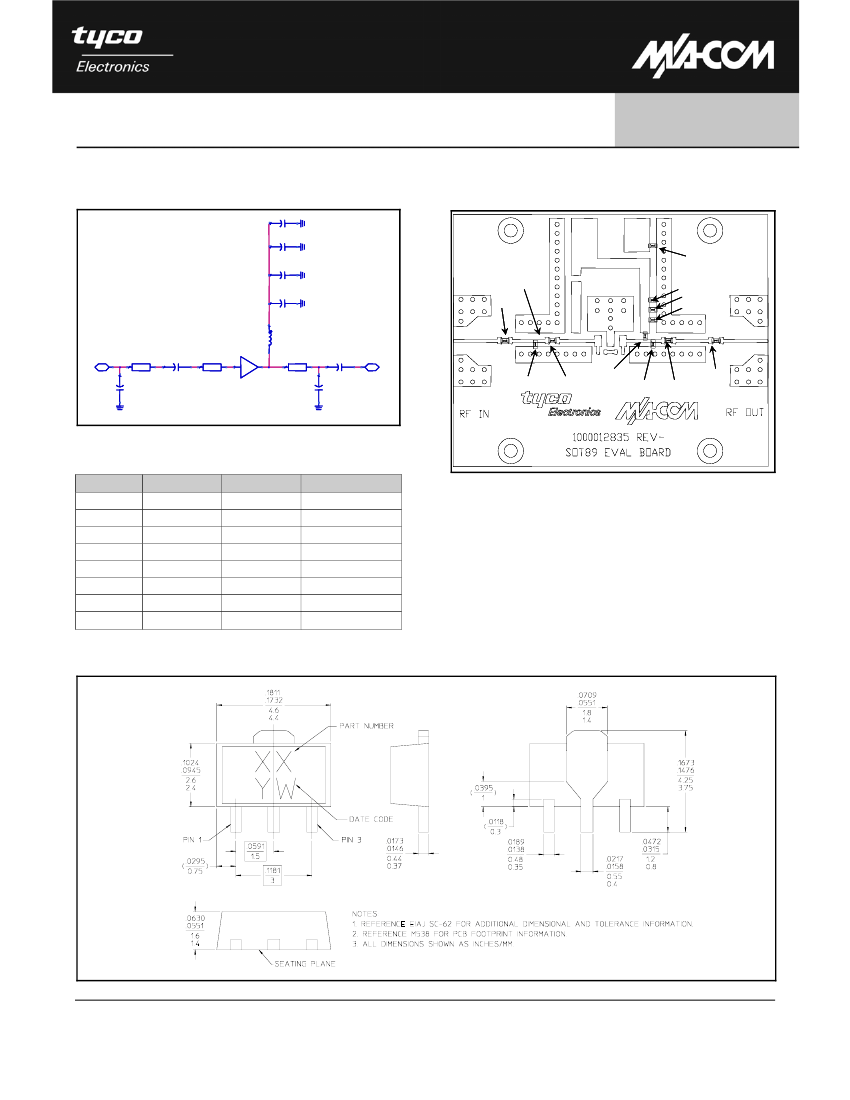

2100 - 2200 MHz Schematic
C8
C7
MAAMSS0026
V6P
2100 - 2200 MHz PCB Layout
C8
C6
55 mils
C5
R1
C7
C6
C5
L1
50
Ω
2
o
C2
50
Ω
8
o
50
Ω
7
o
L4
C1
C3
C2
L1
C1
C3
C4
R2
2100 - 2200 MHz Component List
Part
C1
C2
C3
C4
C5
C6
C7,C8
L1
Value
1.5 pF
5 pF
1.8 pF
39 pF
15 pF
1000 pF
0.1 µF
7.5 nH
Case Size
0402
0402
0402
0402
0402
0402
0402
0402
Manufacturer
Murata
Murata
Murata
Murata
Murata
Murata
Murata
Coilcraft
SOT-89 Plastic Package
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RF Driver Amplifier,
50 - 5000 MHz

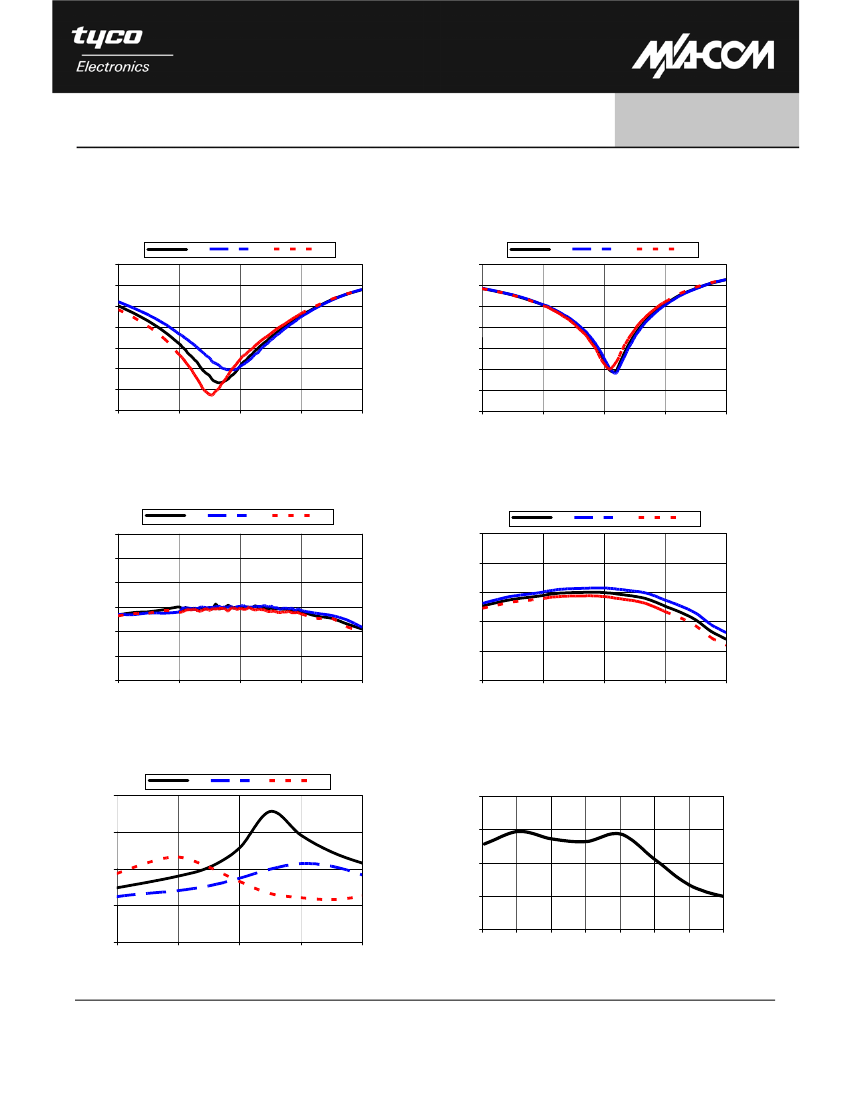

Typical Performance Curves, 800 - 1000 MHz Configuration
