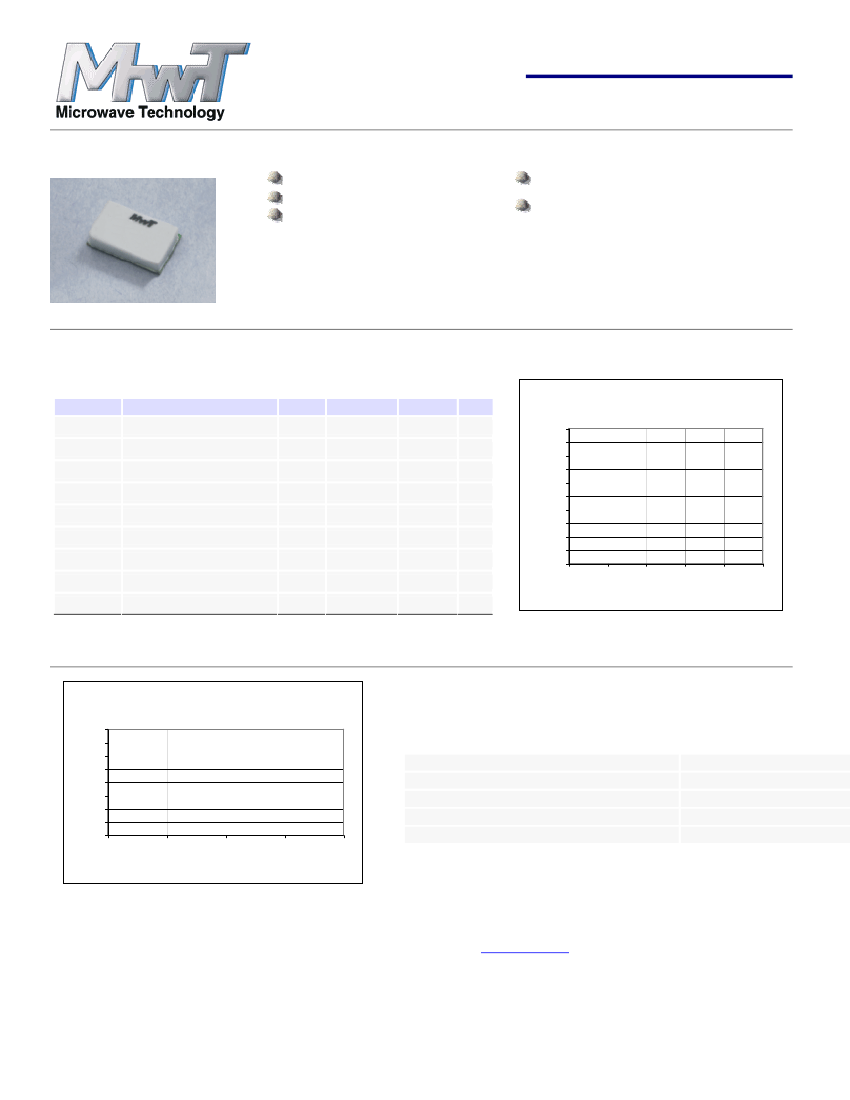

MPS-090917N-02
920 to 965 MHz Linear Amplifier
Preliminary Data Sheet
Features:
MP
S- 0
909
0.8 dB NF
13.5 dB Gain
+23 dBm P1dB
17N
-0 2
Single Positive Bias
Leadless Surface Mount Package
The MPS-090917N-02
is a low cost high linearity modular amplifier designed to meet the
ultra-linear transmitter driver requirements for commercial 2G, 2.5G, 3G, GSM, TDMA,
EDGE, UMTS, WCDMA, CDMA2000, and TD-SCDMA applications. Key advantages are
low intermodulation performance for multi-carrier and CDMA systems and exceptionally
low input/output return loss for ease of integration.
Electrical Specifications
@ 25°C, Vdd = 7.5 V, Zo = 50 ohms
P1dB @ 25C
SYMBOL PARAMETERS
Freq.
SSG
P1 dB
IP3
NF
VSWR
GOF
GOT
Idd
Frequency Range
Small Signal Gain
Pout at 1 dB Comp Point
Third-Order Intercept
Noise Figure
VSWR (Input/Output)
Gain Var. over Frequency
Gain Var. over Temp
DC Current
Min
920
12.0
Typical
13.5
+23.0
36.0
0.8
2.0:1
± 0.2
-0.015
180
Max
965
Unit
MHz
dB
P1dB (dBm)
24
23.8
23.6
23.4
23.2
23
22.8
22.6
22.4
22.2
dBm
dBm
1.1
dB
± 0.5
dB
dB/°C
22
800
810
820
830
840
850
250
mA
Freq. (MHz)
IP3 @ 25C
48
47
46
45
44
43
42
41
40
800
825
850
875
900
Absolute Maximum Ratings
Maximum Bias Voltage
Maximum Continuous RF Input Power
Maximum Peak Input Power
Maximum Case Operating Temperature
Maximum Storage Temperature
7.0 V
+25 dBm
+27 dBm
+85 °C
- 65 to + 150 °C
IP3 (dBm)
Freq. (MHz)
MicroWave Technology, Inc. an IXYS Company, 4268 Solar Way, Fremont, CA 94538
510-651-6700
FAX
510-651-2208
EMAIL
info@mwtinc.com
Preliminary data contained herein is subject to change without notice. All rights reserved © February 2005
MPS-090917N-02
920 to 965 MHz Linear Amplifier
Gain @ 25C
16
15.5
1.2
1
Return Losses @ 25C
Gain (dB)
15
14.5
14
13.5
13
800
Return Loss (dB)
0.8
0.6
0.4
0.2
S11
S22
825
850
875
900
825
850
875
900
Freq. (MHz)
0
800
Freq. (MHz)
Outline Diagram
.430
INPUT SIDE DOT
.270
.024 TYP. 10 PLCS.
OUTPUT PAD
GROUND PAD
INPUT PAD
.040 TYP. 2 PLCS.
.15 MAX.
.050 TYP. 2 PLCS.
.250
.050 TYP. 8 PLCS.
GAP. .003 TYP.
Application Circuit
RF
IN
C1
C2
L1
CR1
100 pF
22 uF
160 nH
7.0 V
Chip Capacitor
Capacitor
Printed or Wound Coil
Zener Diode
50 ohm Microstrip Line
MicroWave Technology, Inc. an IXYS Company, 4268 Solar Way, Fremont, CA 94538
510-651-6700
FAX
510-651-2208
EMAIL
info@mwtinc.com
Preliminary data contained herein is subject to change without notice. All rights reserved © February 2005
