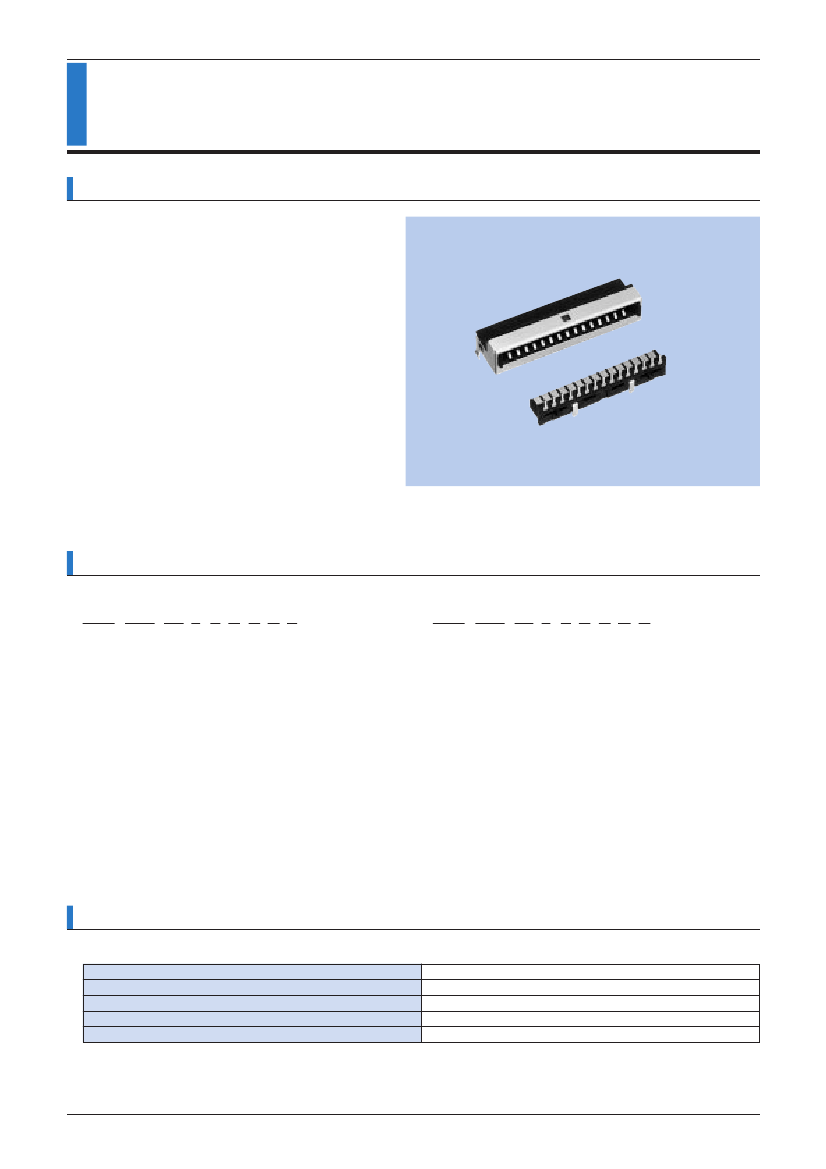

MITSUMI
Ditouch Connectors
CAM-B10, B11 Series
Connectors
FEATURES
1. This connector allows for dismounting and
remounting of the front panel of car audio
equipment mainly to prevent burglary.
It is also suitable to the circuit connection between
various electronic units.
2. A fitting positioning guide provided on socket side
can absorb the play when fitting.
3. Socket connector which can be mounted directly
on the main circuit board reduces the cost of the
connector proper. Anti-static metal cover
provided.
HOW TO ORDER
1. CAM-B10 Series
2. CAM-B11 Series
B10-015-05 0-B G G A H
1
2
3
4
5
6
7
8
9
1
2
3 4 5 6 7 8 9
Series No. (B10)
No. of contacts (015 : 15pins)
Housing Material (02 : PBT resin, 05 : 46 Nylon)
Housing UL grade (0 : UL94V-0)
Contact finish
(B : Contacts/Gold plating, Read pin/Solder plating)
Contact pin plating thickness (G : 0.3µ)
Contact read style (A : Straight, G : Angle SMT)
Socket accessories (A : Non, M : Shielded case)
Plug accessories (A : Non, H : Wing)
B11-015-05 0-B G A M A
1
2
3
4
5
6
7
8
9
1
2
3 4 5 6 7 8 9
Series No. (B11)
No. of contacts (015 : 15pins)
Housing Material (02 : PBT resin, 05 : 46 Nylon)
UL grade (0 : UL94V-0)
Contact finish
(B : Contacts/Gold plating, Reads/Solder plating)
Contact pin plating thickness (G : 0.3µ)
Contact read style (A : Straight, G : Angle SMT)
Socket accessories (A Non, M : Shielded case)
Plug accessories (A : Non, H : Wing)

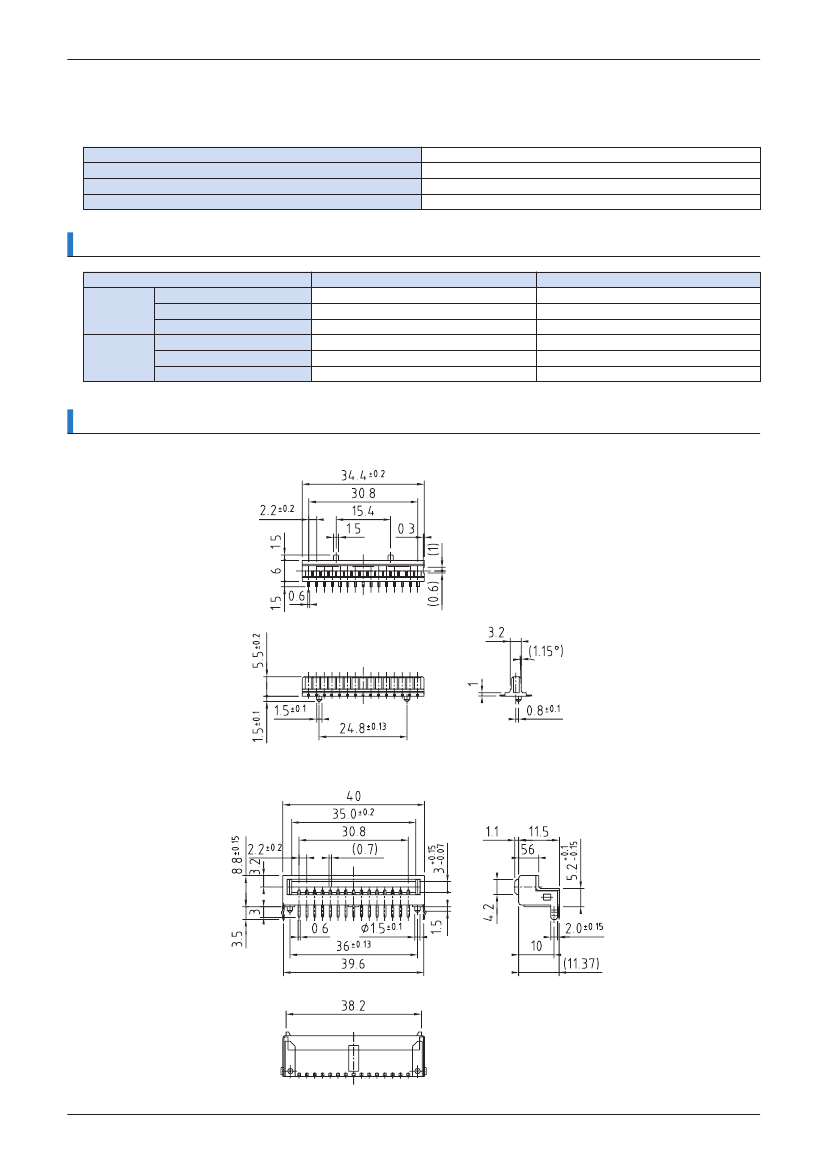

SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Voltage Rating
Current Rating
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
50mΩ max.
