SC5022FH-2R7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> SC5022FH-2R7

Preview

SC5022FH-2R7: DescriptionGeneral Purpose Inductor, 2.7uH, 30%, 1 Element, SMD, 8864, CHIP; CategoryPassive components inductor; File Size229KB，1 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

SC5022FH-2R7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC5022FH-2R7	-	-	View	Buy Now

SC5022FH-2R7 Overview

General Purpose Inductor, 2.7uH, 30%, 1 Element, SMD, 8864, CHIP

SC5022FH-2R7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bel Fuse
package instruction	CHIP
Reach Compliance Code	compliant
uppercase and lowercase codes	8864
structure	Rectangular
DC Resistance	0.008 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Package height	8 mm
Package length	22.35 mm
Package form	SMT
Package width	16.26 mm
Maximum rated current	10 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

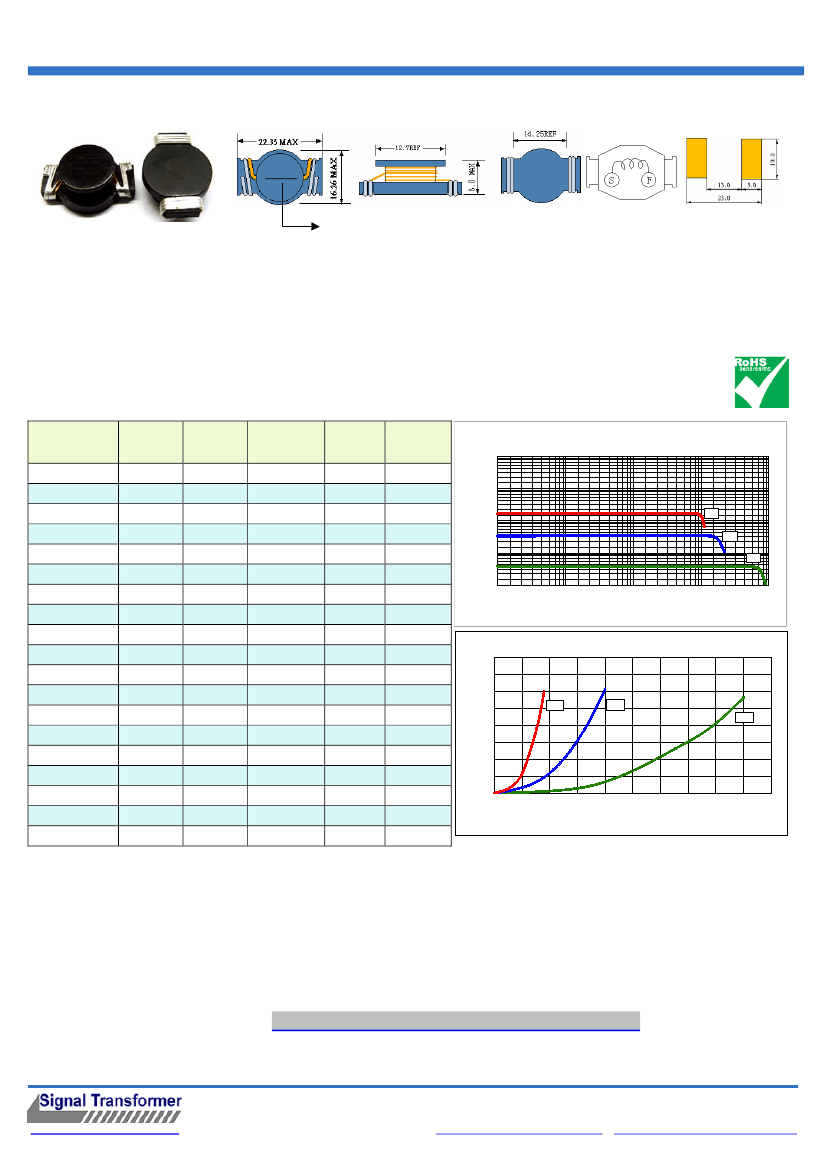

SC5022FH

SMD POWER INDUCTORS

XXX

MARKING

●

Features

1. Open frame construction

2 Excellent Power Density

3 Engineered to Provide High Efficiency

ELECTRICAL CHARACTERISTICS

Part Number

Inductance

(uH)

(1)

Test

Frequency

DCResistance

(Ω

MAX)

(2)

Saturation

(3)

Current

(A)

Temperature

(4)

Current

(A)

I

Inductance (µH)

)

nduct ance( uH

BC5022FH I nduct ance decr ease by cur r ent

SC5022FH Inductance decrease by current

1000

SC5022FH-R47

SC5022FH-R82

SC5022FH-1R5

SC5022FH-2R2

SC5022FH-2R7

SC5022FH-3R3

SC5022FH-3R9

SC5022FH-4R7

SC5022FH-6R8

SC5022FH-100

SC5022FH-150

SC5022FH-220

0.47

0.82

1.5

2.2

2.7

3.3

3.9

4.7

6.8

10

15

22

100KHZ

2.0m

2.6m

4.0m

6.1m

8.0m

9.0m

10m

14m

18m

26m

32m

50m

40

30

25

20

18

17

15

13

12

10

8.0

7.6

20.0

17.0

14.2

12.0

10.0

9.4

9.0

8.0

6.5

6.0

4.8

3.6

100

220

3R9

1

R47

10

0. 1

10

100

1000

10000

100000

DC cur r ent ( m

A)

DC current (mA)

SC5022FH Temperature rise

cur r ent

BC

5022FH Tem at ur e r i se by

by current

per

Temperature

r i

°C

Tem at ur e

rise

se ℃

per

80

70

60

50

40

30

20

10

0

3000

6000

9000

12000

15000 18000

21000 24000

27000 30000

220

3R

9

R

47

D cur r ent ( m

C

DC current (mA)

A)

(1). Inductance tolerance for 0.47uH~4.7uH:

±30%,

for 6.8uH~220uH:

±20%.

Tested at 0.25V, 0ADC and 25℃.

(2). DCR measured at 25℃.

(3). The DC current at which the inductance decreases by 10% from its initial value.

(4). The DC current that results in a 40℃ temperature rise from 25℃ ambient.

Click here for

QUANTITY PER REEL & PACKING INFORMATION

Custom versions available upon request.

www.signaltransformer.com

©

2011 Signal Transformer –Specification subject to change without notice. 07.11

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208

Sales@signaltransformer.com

•

techhelp@signaltransformer.com

91

SC5022FH-2R7 Related Products

	SC5022FH-2R7	SC5022FH-100	SC5022FH-R47	SC5022FH-220	SC5022FH-1R5	SC5022FH-2R2	SC5022FH-150
Description	General Purpose Inductor, 2.7uH, 30%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 0.47uH, 30%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 22uH, 20%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 2.2uH, 30%, 1 Element, SMD, 8864, CHIP	General Purpose Inductor, 15uH, 20%, 1 Element, SMD, 8864, CHIP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
package instruction	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
uppercase and lowercase codes	8864	8864	8864	8864	8864	8864	8864
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
DC Resistance	0.008 Ω	0.026 Ω	0.002 Ω	0.05 Ω	0.004 Ω	0.0061 Ω	0.032 Ω
Nominal inductance(L)	2.7 µH	10 µH	0.47 µH	22 µH	1.5 µH	2.2 µH	15 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Package height	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Package length	22.35 mm	22.35 mm	22.35 mm	22.35 mm	22.35 mm	22.35 mm	22.35 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	16.26 mm	16.26 mm	16.26 mm	16.26 mm	16.26 mm	16.26 mm	16.26 mm
Maximum rated current	10 A	6 A	20 A	3.6 A	14.2 A	12 A	4.8 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	20%	30%	20%	30%	30%	20%
