50950095109D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 50950095109D

50950095109D: DescriptionStrip Terminal Block,; CategoryThe connector; File Size563KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

50950095109D Overview

Strip Terminal Block,

50950095109D Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Pin Strip |

Spacing 5.0 mm

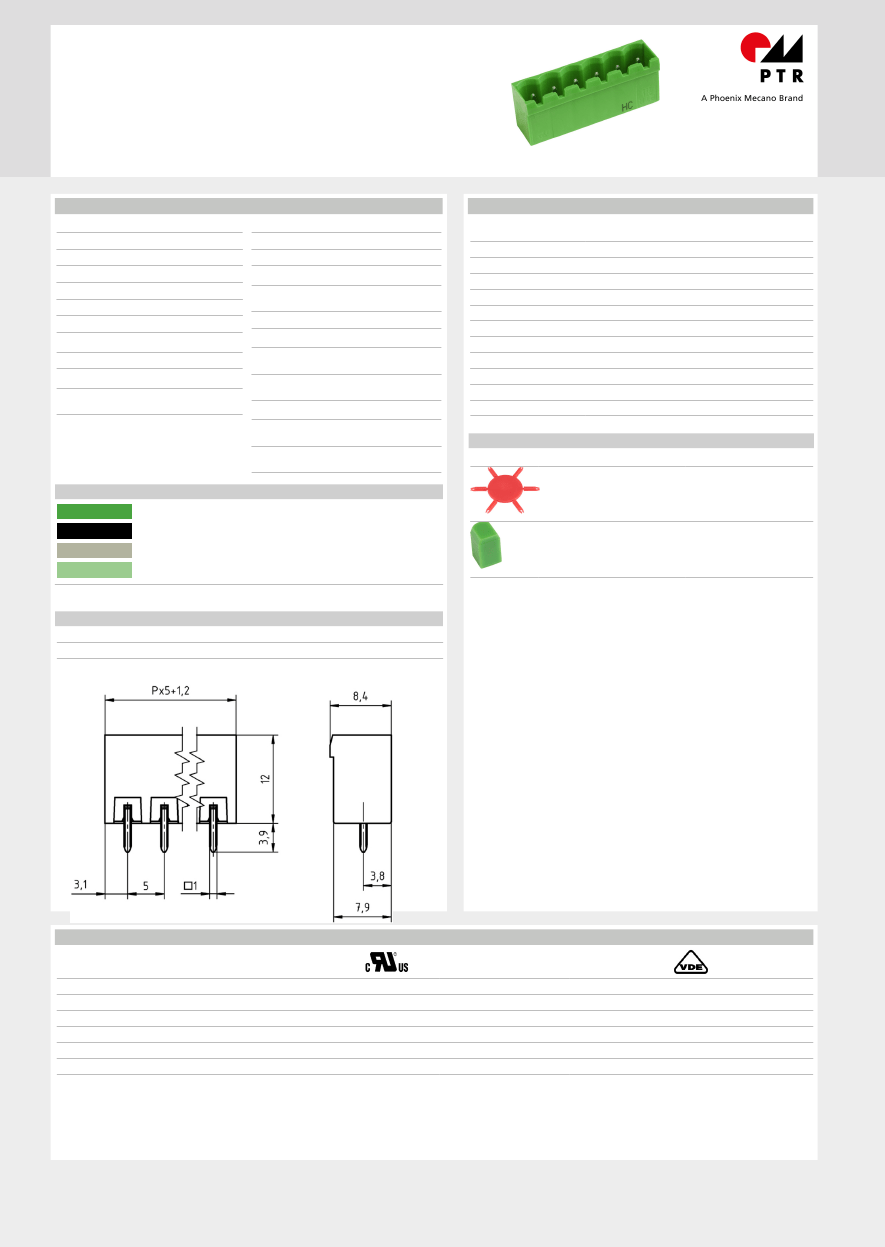

STL950/..G-5.0-V-GREEN-HC

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

Order Data (Spacing 5.0 mm)

Insulating Material

Material

Flammability Class

PA 6.6

11.20

16.20

21.20

26.20

31.20

36.20

41.20

46.20

51.20

56.20

61.20

STL950/2G-5.0-V-GREEN-HC

STL950/3G-5.0-V-GREEN-HC

STL950/4G-5.0-V-GREEN-HC

STL950/5G-5.0-V-GREEN-HC

STL950/6G-5.0-V-GREEN-HC

STL950/7G-5.0-V-GREEN-HC

STL950/8G-5.0-V-GREEN-HC

STL950/9G-5.0-V-GREEN-HC

STL950/10G-5.0-V-GREEN-HC

STL950/11G-5.0-V-GREEN-HC

STL950/12G-5.0-V-GREEN-HC

Poles

Width (mm)

Article Designation

Article

Number

50950025109 F

50950035109 F

50950045109 F

50950055109 E

50950065109 E

50950075109 E

50950085109 D

50950095109 D

50950105109 D

50950115109 D

50950125109 D

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

PCB Hole Diameter

1.4 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Contact Pin

Copper

Alloy

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Accessoires

Figure

Designation

Coding Star CS2-5.0/5.08-RED

Article Number

Order Data: 50000000024

Colours

GREEN, RAL 6018

BLACK, RAL 9011

PEBBLE GREY, RAL 7032

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Separating Element

SE-STL950-GREEN

Order Data: 50950000002

Counterparts (Spacing 5.0 mm)

Terminal Block

AK950

In combination of connectors with different admission data, the lower value is valid.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Test Voltage

Pollution Degree

300 V

16 A

150 V

16 A

300 V

10 A

250 V

16 A

III

1.60 kV

1.30 kV

1.60 kV

4.0 kV

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

50950095109D Related Products

	50950095109D	STL950/3G-5.0-V-GREEN-HC	STL950/4G-5.0-V-GREEN-HC	50950025109F	50950085109D	50950075109E	50950065109E
Description	Strip Terminal Block,	Strip Terminal Block,	Strip Terminal Block,	Strip Terminal Block,	Strip Terminal Block,	Strip Terminal Block,	Strip Terminal Block,
Maker	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
