50086-10081-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 50086-10081-001

Preview

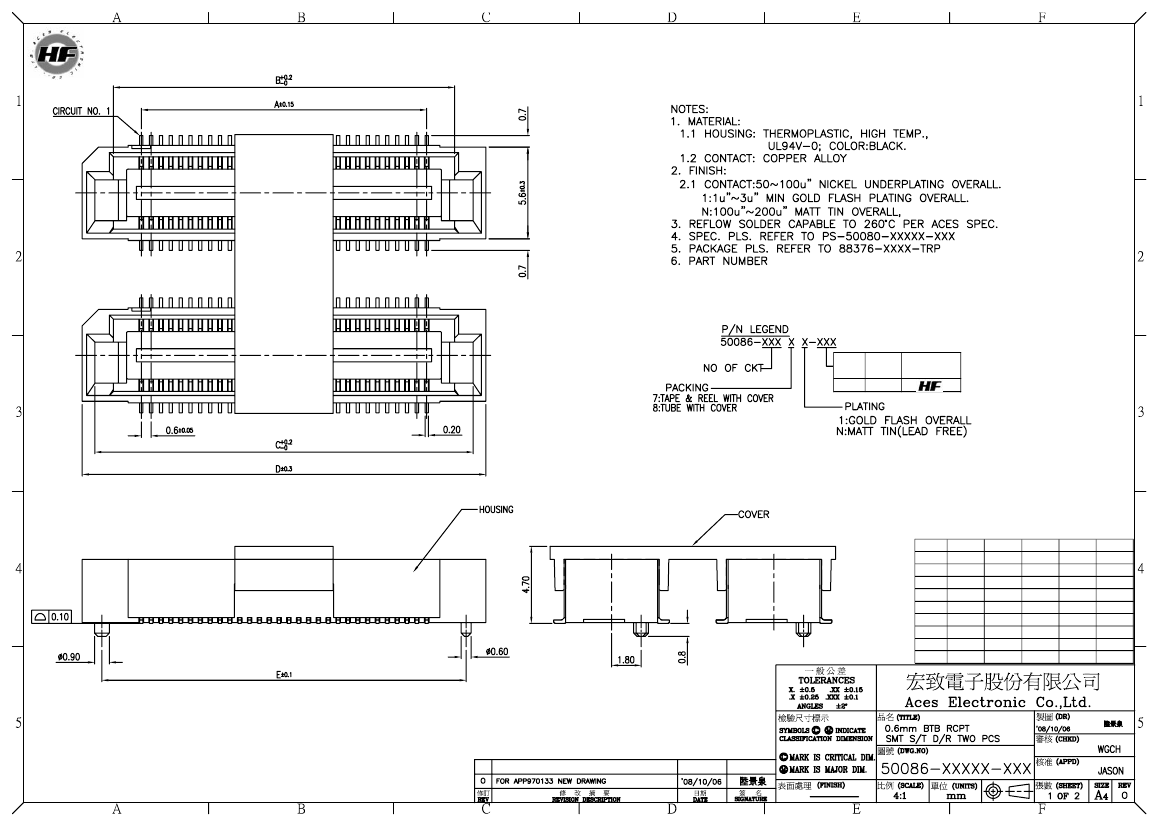

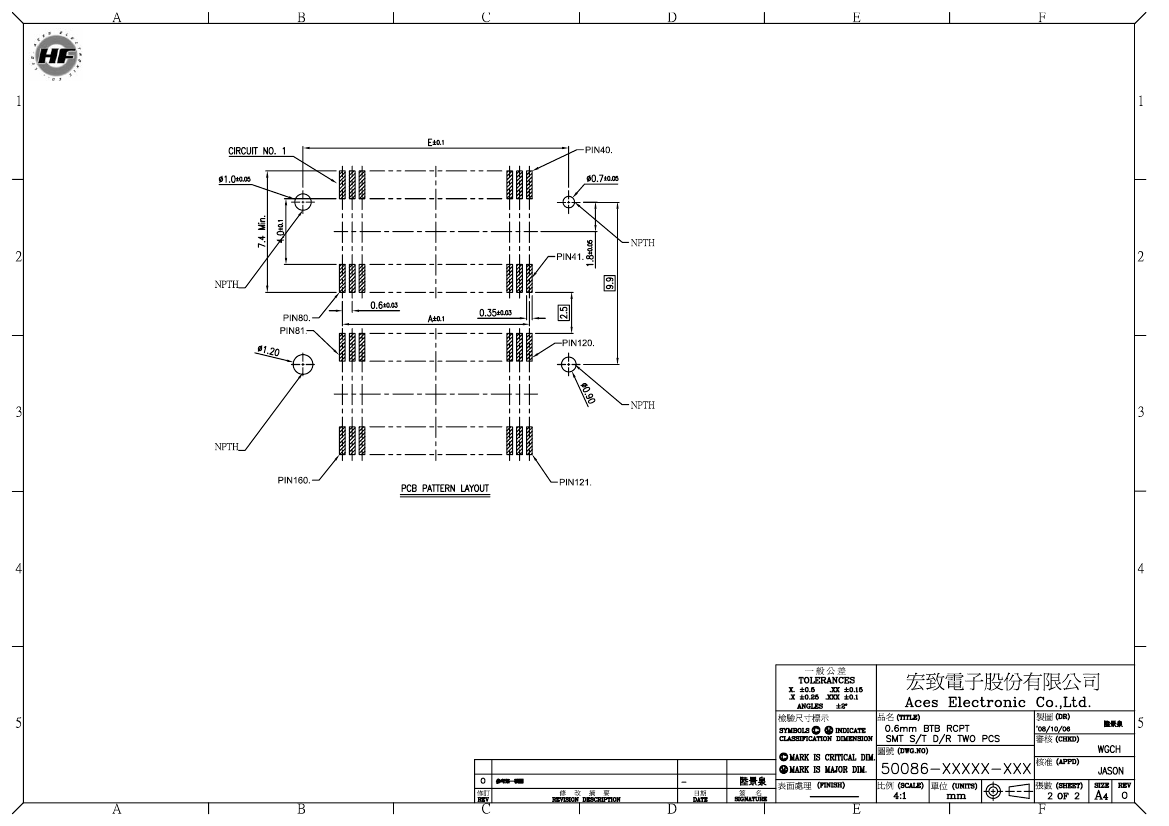

50086-10081-001: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size249KB，2 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50086-10081-001 Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50086-10081-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Objectid	305554843
Reach Compliance Code	unknown
compound_id	179101433
Board mount options	PEG
body length	1.441 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	50086
Plug contact pitch	0.024 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Evacuation force-minimum value	.1112 N

Preview

Download Datasheet

View All

XXX

001

Housing

Halogen Free

Color

Black

CKT

20

30

60

80

90

100

120

140

160

Dim A

5.4

8.4

17.4

23.4

26.4

29.4

35.4

41.4

47.4

Dim B

8.8

11.8

20.8

26.8

29.8

32.8

38.8

44.8

50.8

Dim C

11.05

14.05

23.05

29.05

32.05

35.05

41.05

47.05

53.05

Dim D

12.6

15.6

24.6

30.6

33.6

36.6

42.6

48.6

54.6

Dim E

10.2

13.2

22.2

28.2

31.2

34.2

40.2

46.2

52.2
