BS-A35X1RI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BS-A35X1RI

BS-A35X1RI: DescriptionSmart/Normal 7 Seg Numeric LED Display, High Efficiency Green, 8mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size143KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BS-A35X1RI Overview

Smart/Normal 7 Seg Numeric LED Display, High Efficiency Green, 8mm, ROHS COMPLIANT PACKAGE-10

BS-A35X1RI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	unknown
color	HIGH EFFICIENCY GREEN
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	8 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

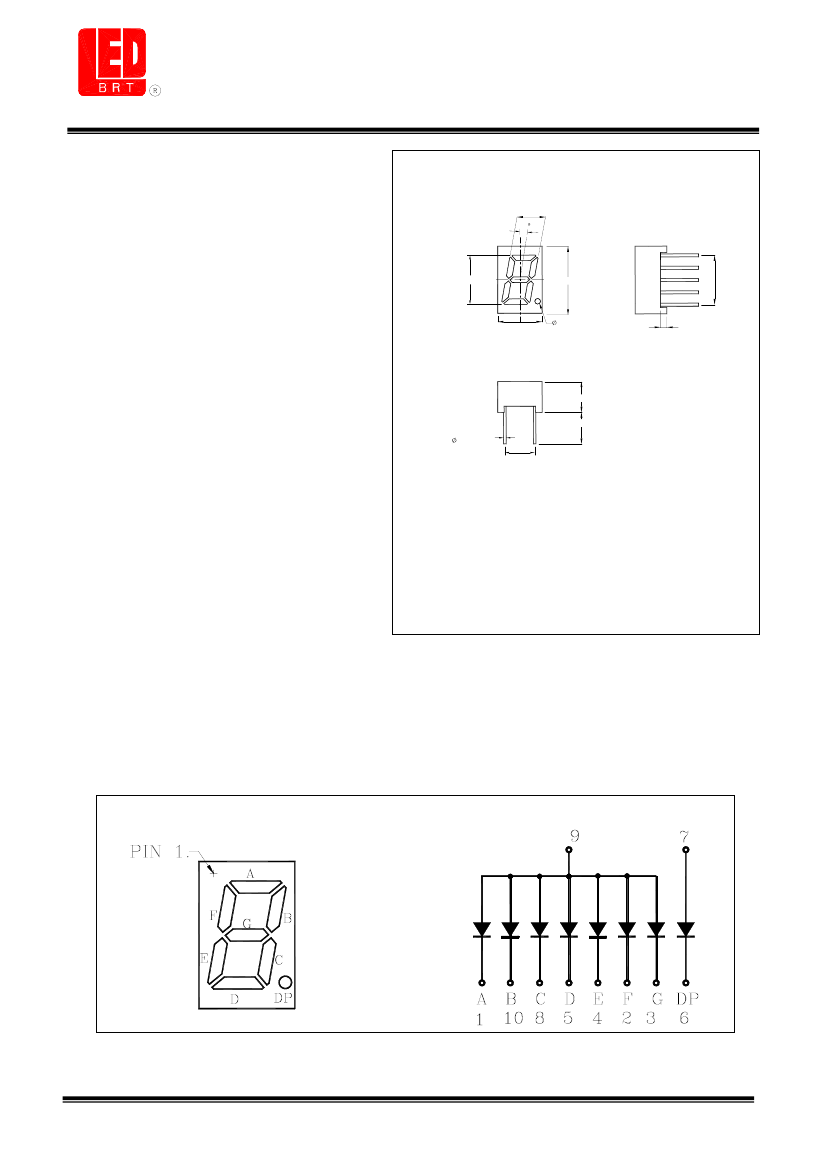

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BS-A35X1RI

●

Features :

0.31 inch (8.00mm) Digit Height.

Continuous uniform segments.

Low power requirement.

Excellent characters appearance.

Solid state reliability.

●

Package Dimensions :

4.0(.157)

8.00(.310)

11.0(.433)

7.0(.276)

0.9(.035)

1.0(.039)

Categorized for luminous intensity.

Direct drive common anode.

5.0(.197)

●

Description :

0.45(.018)

5.3±0.5(.209±020)

The BS-A35X1RI is a 8.00mm(0.31")

high single digit seven segments display.

This product use hi-eff green chips, which

are made from GaP on GaP substrate..

This product have a gray face and white

segments.

This product doesn't contain restriction

substance, comply ROHS standard.

5.08(.200)

Notes:

1. All dimensions are in millimeters(inches).

2. Tolerance is ±0.25mm(.01")unless otherwise

specified.

3. Specifications are subject to change without

notice.

●

Internal Circuit Diagram :

Ver.1.0 Page 1 of 3

2.0x4=8.0(.315)
