FEDK14N5101/S35A datasheet, PDF

Datasheet> All Categories > The sensor> FEDK14N5101/S35A

FEDK14N5101/S35A: DescriptionThrough Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR; CategoryThe sensor; File Size70KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

FEDK14N5101/S35A Overview

Through Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR

FEDK14N5101/S35A Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	14.8 mm
body height	43 mm
Body length or diameter	31 mm
shell	PLASTIC
Maximum measuring range (mm)	15 mm
Minimum measuring range (mm)	15 mm
Installation features	BOARD MOUNT
Maximum working current	20 mA
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Output interface type	4-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	1200 µs
Sensor/temperature sensor type	LINEAR POSITION SENSOR,PHOTOELECTRIC,THROUGH BEAM
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CABLE

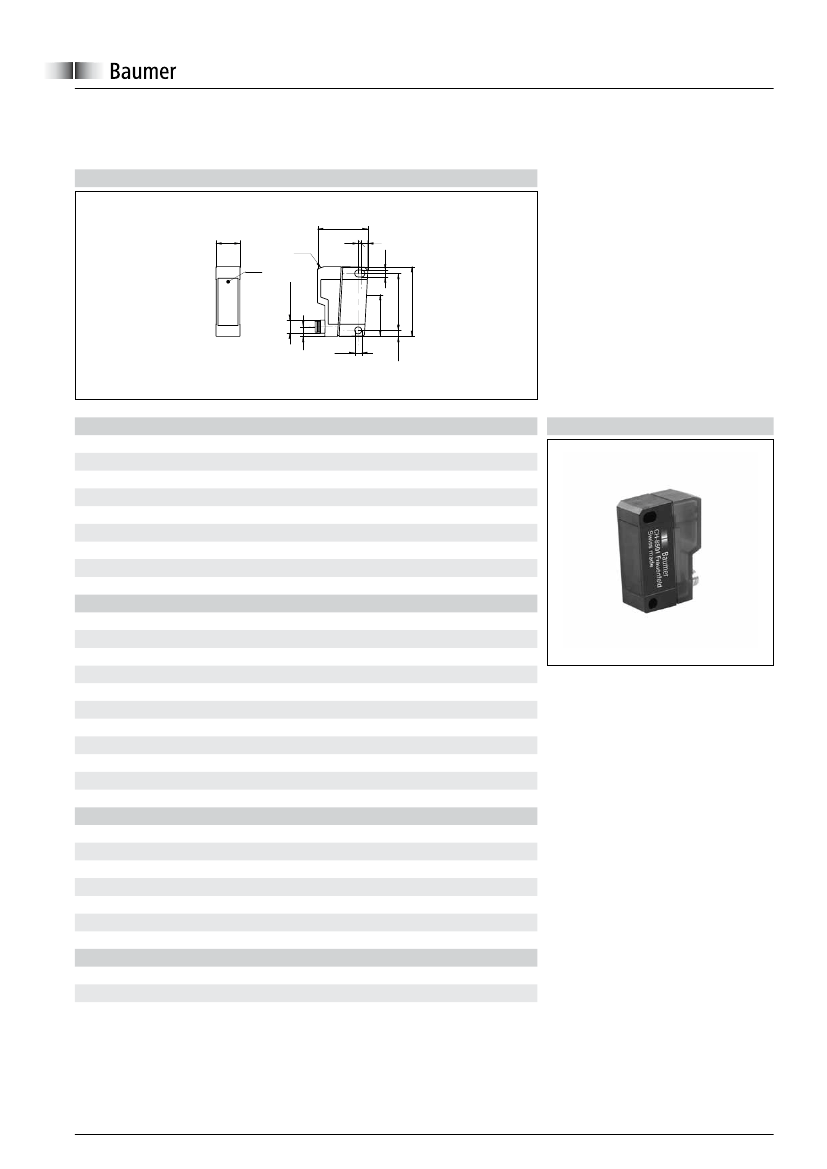

FEDK14N5101/S35A Preview

Photoelectric sensors

Through beam sensors

sample drawing

FEDK 14 (Receiver)

14,8

LED

M 8 x1

4,3

3,75

4,3

* receiver axis

general data

type

emitter / receiver

actual range Sb

nominal range Sn

alignment / soiled lens indicator

light indicator

sensitivity adjustment

through beam sensor

receiver

12 m

15 m

flashing light indicator

LED yellow

* 25,8

sample picture

electrical data

response time / release time

voltage supply range +Vs

current consumption max. (no load)

current consumption typ.

voltage drop Vd

output function

output current

short circuit protection

reverse polarity protection

< 1,2 ms

10 ... 30 VDC

20 mA

< 1,8 VDC

light / dark operate

< 100 mA

yes

mechanical data

width / diameter

height / length

depth

type

housing material

front (optics)

ambient conditions

operating temperature

protection class

-25 ... +65 °C

IP 67

14,8 mm

43 mm

31 mm

rectangular

plastic (ASA, MABS)

PMMA

www.baumer.com

7/1/2014

Photoelectric sensors

Through beam sensors

order reference

FEDK 14N5101

FEDK 14N5101/S14

FEDK 14N5101/S35A

FEDK 14P5101

FEDK 14P5101/S14

FEDK 14P5101/S35A

connection types

cable 4 pin, 2 m

connector M12 4 pin

connector M8 4 pin

cable 4 pin, 2 m

connector M12 4 pin

connector M8 4 pin

output circuit

NPN

PNP

FEDK 14 (Receiver)

www.baumer.com

7/1/2014

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FEDK14N5101/S35A Related Products

	FEDK14N5101/S35A	FEDK14P5101/S14	FEDK14N5101	FEDK14N5101/S14
Description	Through Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR	Through Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR	Through Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR	Through Beam Photoelectric Sensor, 15mm Min, 15mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR
Maker	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	14.8 mm	14.8 mm	14.8 mm	14.8 mm
body height	43 mm	43 mm	43 mm	43 mm
Body length or diameter	31 mm	31 mm	31 mm	31 mm
shell	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Maximum measuring range (mm)	15 mm	15 mm	15 mm	15 mm
Minimum measuring range (mm)	15 mm	15 mm	15 mm	15 mm
Installation features	BOARD MOUNT	BOARD MOUNT	BOARD MOUNT	BOARD MOUNT
Maximum working current	20 mA	20 mA	20 mA	20 mA
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Output interface type	4-WIRE INTERFACE	4-WIRE INTERFACE	4-WIRE INTERFACE	4-WIRE INTERFACE
Output range	100mA	100mA	100mA	100mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Response time	1200 µs	1200 µs	1200 µs	1200 µs
Maximum supply voltage	30 V	30 V	30 V	30 V
Minimum supply voltage	10 V	10 V	10 V	10 V
surface mount	NO	NO	NO	NO
Termination type	CABLE	CONNECTOR	CONNECTOR	CONNECTOR
Sensor/temperature sensor type	LINEAR POSITION SENSOR,PHOTOELECTRIC,THROUGH BEAM	-	LINEAR POSITION SENSOR,PHOTOELECTRIC,THROUGH BEAM	LINEAR POSITION SENSOR,PHOTOELECTRIC,THROUGH BEAM
