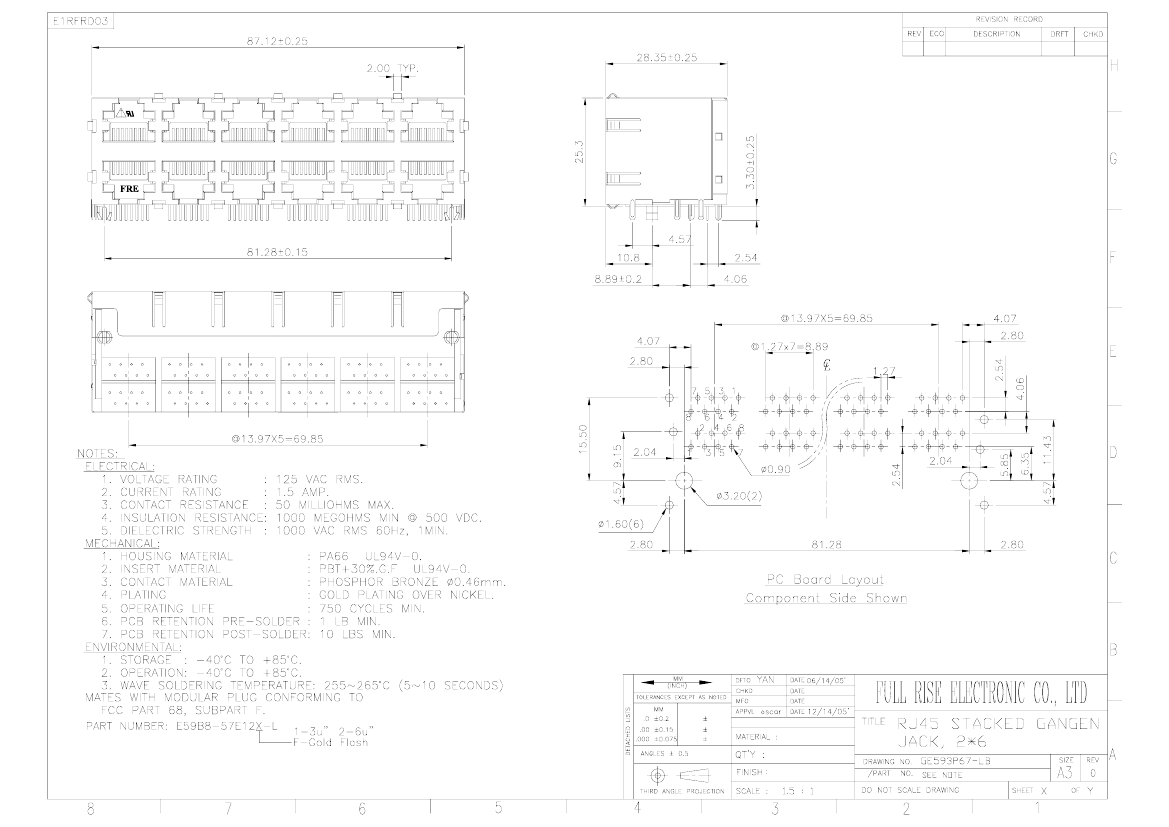

Preview

E59B8-57E122-L: DescriptionTelecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

E59B8-57E122-L Overview

Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack

E59B8-57E122-L Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RJ45, OTHER STACKING CONNECTOR: 48 CONTACTS
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	E59B8
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE66
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

E59B8-57E122-L Related Products

	E59B8-57E122-L	E59B8-57E121-L	E59B8-57E12F-L
Description	Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 48 Contact(s), Female, Right Angle, Solder Terminal, Jack
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	RJ45, OTHER STACKING CONNECTOR: 48 CONTACTS	RJ45, OTHER STACKING CONNECTOR: 48 CONTACTS	RJ45, OTHER STACKING CONNECTOR: 48 CONTACTS
Body/casing type	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD FLASH
Contact completed and terminated	GOLD (6) OVER NICKEL	GOLD (3) OVER NICKEL	GOLD FLASH
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	E59B8	E59B8	E59B8
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE66	POLYAMIDE66	POLYAMIDE66
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	48	48	48
UL Flammability Code	94V-0	94V-0	94V-0
