https://www.phoenixcontact.com/us/produkte/0710222

Base strip - DFK-MSTB 2,5/ 7-GF-5,08 - 0710222

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5.08 mm,

Connection method: Solder/Slip-on connection, Color: green, Contact surface: Tin, Assembly: Direct mounting

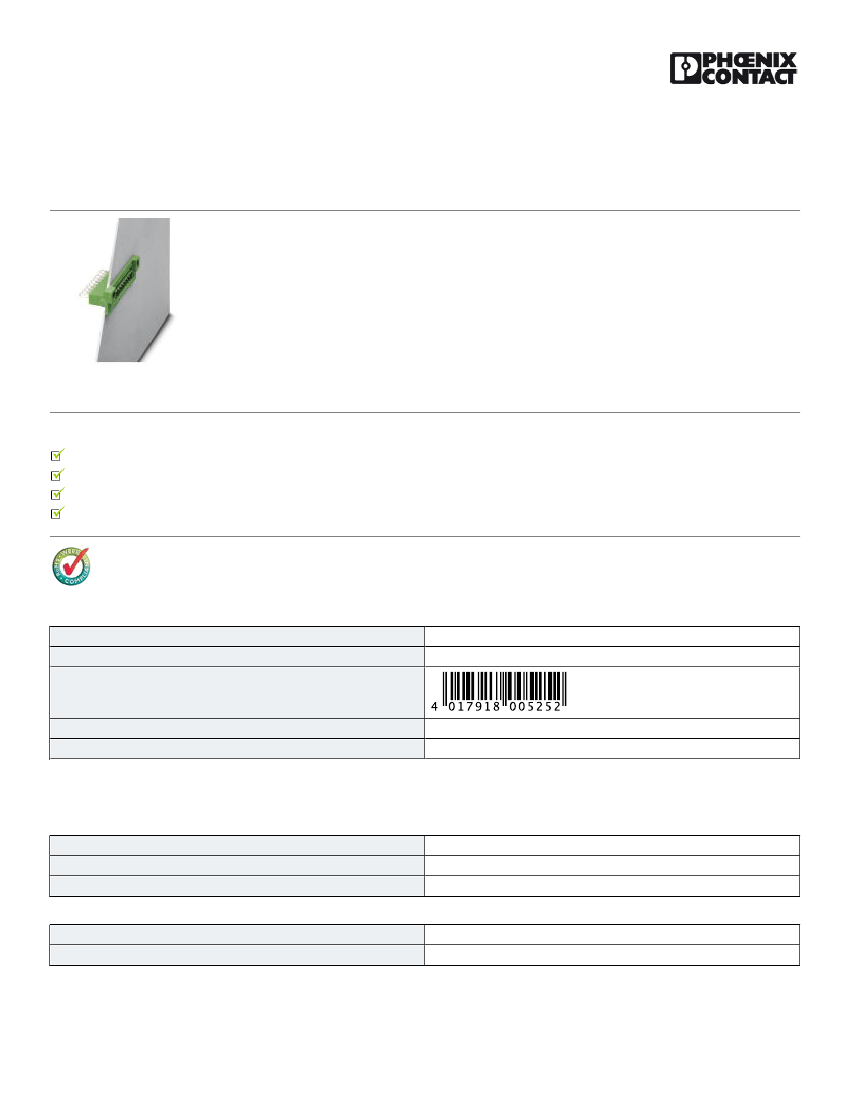

The figure shows a 10-position

version of the product

Product Features

Can be fixed in housing panels up to 6 mm thick using two M3 x 10 screws

Outside: plug-in connection for corresponding MSTB 2,5 or FKC 2,5 plugs

Headers for assembly in a device/housing panel

Inside: solder or 2.8 mm slip-on plug-in connection that can be combined

Key commercial data

Packing unit

Minimum order quantity

GTIN

Custom tariff number

Country of origin

85366990

GERMANY

1 PCE

50 PCE

Technical data

Dimensions / positions

Pitch

Dimension a

Number of positions

5.08 mm

30.48 mm

Technical data

Range of articles

Insulating material group

DFK-MSTB 2,5/..-GF

14.05.2013 Page 1 / 8
