DCMC8P8SVA197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DCMC8P8SVA197

DCMC8P8SVA197: DescriptionD Subminiature Connector, 8 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DCMC8P8SVA197 Overview

D Subminiature Connector, 8 Contact(s), Female, Solder Terminal, Receptacle,

DCMC8P8SVA197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: DM53744-107, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DCMC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

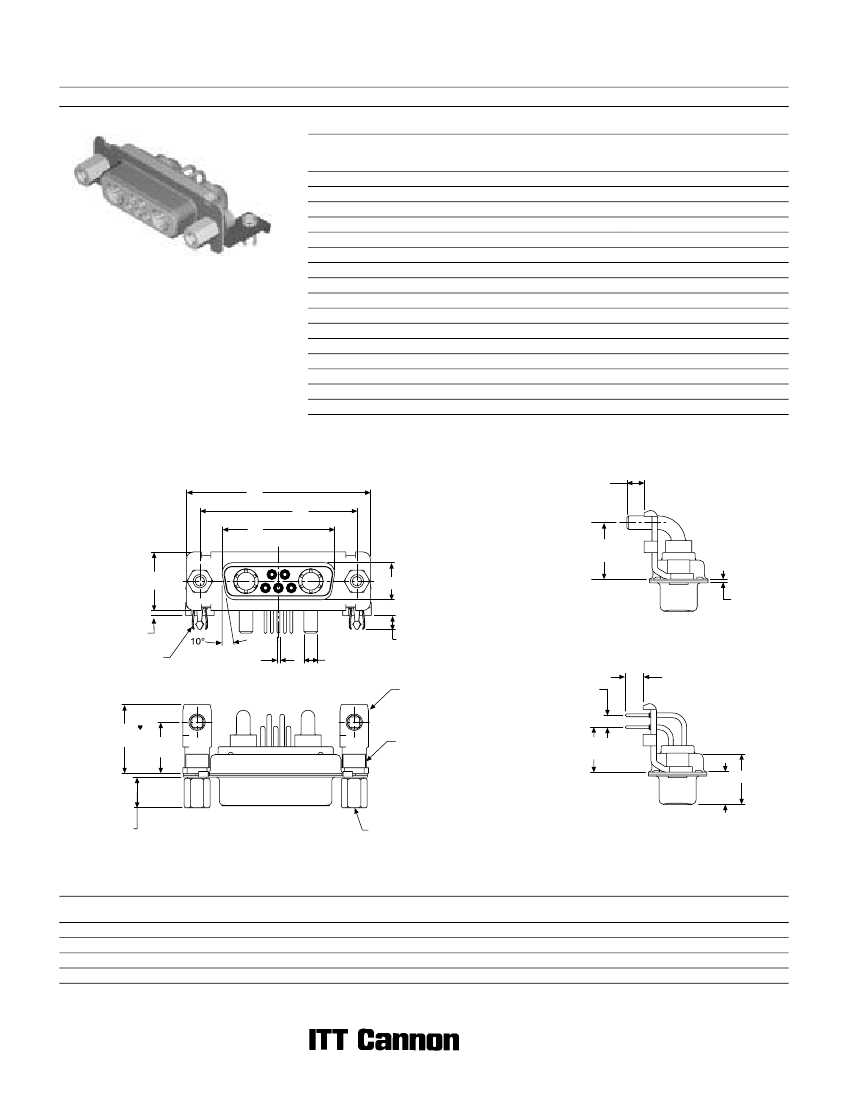

D Subminiature

40 A High Power 90° — European Footprint 10,2 or 9,4 mm

Receptacle

Combo D



(Sizes DE-DC)

Part Number

Without Screw Locks

With Boardlocks

DEMC5P1SVA197

DAMC7P2SVA197

DAMC11P1SVA197

DAMC3P3SVA197

DAMC3PK3SVA197TM

DBMC5P5SVA197

DBMC9P4SVA197

DBMC13P3SVA197

DBMC17P2SVA197

DBMC21P1SVA197

DCMC8P8SVA197

DCMC13P6SVA197

DCMC17P5SVA197

DCMC21PA4SVA197

DCMC25P3SVA197

DCMC27P2SVA197

Part Number

With Screw Locks

Without Boardlocks

DEMD5P1SVA197

DAMD7P2SVA197

DAMD11P1SVA197

DAMD3P3SVA197

DAMD3PK3SVA197TM

DBMD5P5SVA197

DBMD9P4SVA197

DBMD13P3SVA197

DBMD17P2SVA197

DBMD21P1SVA197

DCMD8P8SVA197

DCMD13P6SVA197

DCMD17P5SVA197

DCMD21PA4SVA197

DCMD25P3SVA197

DCMD27P2SVA197

Part Number

With Screw Locks

With Boardlocks

DEMG5P1SVA197

DAMG7P2SVA197

DAMG11P1SVA197

DAMG3P3SVA197

DAMG3PK3SVA197TM

DBMG5P5SVA197

DBMG9P4SVA197

DBMG13P3SVA197

DBMG17P2SVA197

DBMG21P1SVA197

DCMG8P8SVA197

DCMG13P6SVA197

DCMG17P5SVA197

DCMG21PA4SVA197

DCMG25P3SVA197

DCMG27P2SVA197

Part Numbers with Metal Bracket and Rivnut #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMP5P1SVA197

DAMP7P2SVA197

DAMP11P1SVA197

DAMP3P3SVA197

DAMP3PK3SVA197TM

DBMP5P5SVA197

DBMP9P4SVA197

DBMP13P3SVA197

DBMP17P2SVA197

DBMP21P1SVA197

DCMP8P8SVA197

DCMP13P6SVA197

DCMP17P5SVA197

DCMP21PA4SVA197

DCMP25P3SVA197

DCMP27P2SVA197

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see pages 252-253.

For panel cutouts, see page 221.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

For M3 threads replace MP with MS, MC with ML, MD with MO, MG with MJ.

Notes: For performance class 2 substitute K126 for A197. Example: DEMP5P1SVK126

Keyed.

Engaging Face

3,30 (.130)

MIN.

11,94

0,25

(.470

.010)

1,00 (.039)

BOARDLOCK

Ø 0,60

(.024)

Ø 2,90

(.114)

BRACKET,

METAL

14,55

(.573)

2,54

(.100)

4,00 (.157)

2,92

(.115)

Screw lock, boardlock, and signal contacts

removed for clarity

10,85

(.427)

RIVNUT

#4-40 UNC

9,40

0,20

(.370

.008)

6,50

0,25

(.256

.010)

Note:

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0.76 (.030)

0,76 (.030)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)

Dimensions subject to change

Recommended Resources

Application circuit diagram of IGBT in CO2 gas shielded welding power source

Diode spark suppression circuit a

Isolated zero-crossing AC switch circuit

Negative pressure and voltage doubler conversion circuit diagram

Adjustable symmetrical triangle wave generator circuit diagram

Circuit using Hall device as limiter
