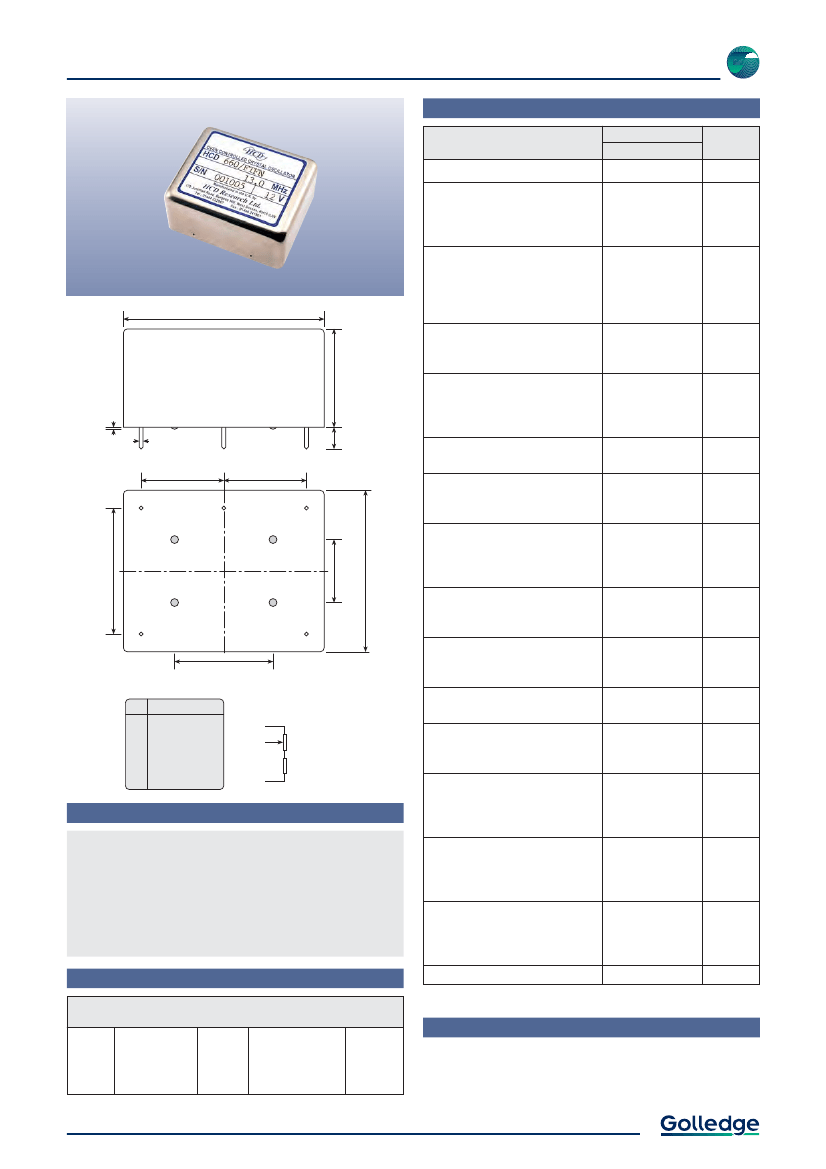

OCXO Sine Output High Performance
Specifications
HCD660
Product
HCD660
Parameters
Frequency range:
5.0 ~ 20.0MHz
Ageing per day (at despatch):
< 1x10
-9
< 5x10
-10
< 2x10
-10
Frequency stability:
< 1x10
-7
per year (option D)
< 2x10
-8
per year (option F)
< 1x10
-9
per 10% change in V
DD
< 5x10
-10
per 10% change in load
Temperature stability:
< 1x10
-8
< 5x10
-9
< 3x10
-9
Option
Codes
D
E
F
51.00 (max)
R
S
T
C
F
G
24.50
(max)
0.50
1.00Ø
21.00
21.00
5.60
Operating temperature range:
-10 to +60°C
-20 to +70°C
-40 to +70°C
Storage temperature range:
-40 to +90°C
Output waveform:
Sine wave, 7dBm (±1dBm) into 50
Other options to +13dBm max
Frequency adjustment:
±5x10
-7
(typ) over +0.5 to +7.0V
(sufficient for 10 years ageing min)
Stabilised +7.0V supply provided
Supply voltage (V
DD
):+12V
(±0.5V)
+15V (±0.5V)
Other options from 12~30V
Power consumption:
5.0W max at switch on
1.2W typ when stabilised at 25°C
3
2
1
specify
32.00
16.00
41.00
(max)
4
5
N
P
specify
25.00
BOTTOM VIEW
PIN
1
2
3
4
5
CONNECTION
Ground
Freq adjustment
Ref voltage out
Supply
RF output
1
3
2
1k
VOLTAGE CONTROL
10k multi-turn
Warm up:
< 1x10
-8
after 8mins at +20°C
Allan deviation (ADEV), 1 sec:
< 5x10
-13
(5.0MHz)
< 1x10
-12
(10.0MHz)
Scale 1:1
Close-in phase noise (@ 5.0MHz):
< -110 dBc/Hz @ 1Hz, <-135 @ 10Hz
< -123 dBc/Hz @ 1Hz, <-140 @ 10Hz
< -150 dBc/Hz @ 100Hz
Close-in phase noise (@ 10.0MHz):
< -95 dBc/Hz @ 1Hz, <-130 @ 10Hz
< -108 dBc/Hz @ 1Hz, <-135 @ 10Hz
< -145 dBc/Hz @ 100Hz
Far-out phase noise (all freqs):
< -155 dBc/Hz @ 1kHz
< -157 dBc/Hz @ 10kHz
< -157 dBc/Hz @ 100kHz
Harmonics:
< -30dB wrt carrier
Optional - Please specify required code(s) when ordering
Features
Z
«
«
«
«
Freq
5.0MHz
5.0MHz
10.0MHz
10.0MHz
Temperature stability down to 3ppb
Single 12V supply (12V ~ 30V optional)
Standard European pin-out
Custom options available
Z
Standard Models
Specification
HCD660/DRFN
HCD660/FTFN
HCD660/DRFN
HCD660/FTFN
Ageing
per day
< 1x10
-9
< 2x10
-10
< 1x10
-9
< 2x10
-10
Temperature
stability
< 1x10
-8
-20+70°C
< 3x10
-9
-20+70°C
< 1x10
-8
-20+70°C
< 3x10
-9
-20+70°C
Part No
MS06938
MS06940
MS06937
MS06939
Standard.
Ordering Information
Part No, or product name + option codes + frequency
eg:
HCD660/FTFN 10.0MHz
Option code X (eg HCD660/X) denotes a custom specification.
Web:
www.golledge.com
Tel:
+44 1460 256 100
01 Jun 2011
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
