V52C8128Z70: DescriptionVideo DRAM, 128KX8, 70ns, CMOS, PZIP40, 0.475 INCH, PLASTIC, ZIP-40; Categorystorage storage; File Size1MB，51 Pages; ManufacturerMosel Vitelic Corporation ( MVC ); Websitehttp://www.moselvitelic.com

Download Datasheet Parametric Compare View All

V52C8128Z70 Overview

Video DRAM, 128KX8, 70ns, CMOS, PZIP40, 0.475 INCH, PLASTIC, ZIP-40

V52C8128Z70 Parametric

Parameter Name	Attribute value
Maker	Mosel Vitelic Corporation ( MVC )
Parts packaging code	ZIP
package instruction	ZIP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT
JESD-30 code	R-PZIP-T40
length	51.2064 mm
memory density	1048576 bit
Memory IC Type	VIDEO DRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	40
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	12.065 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
width	2.794 mm

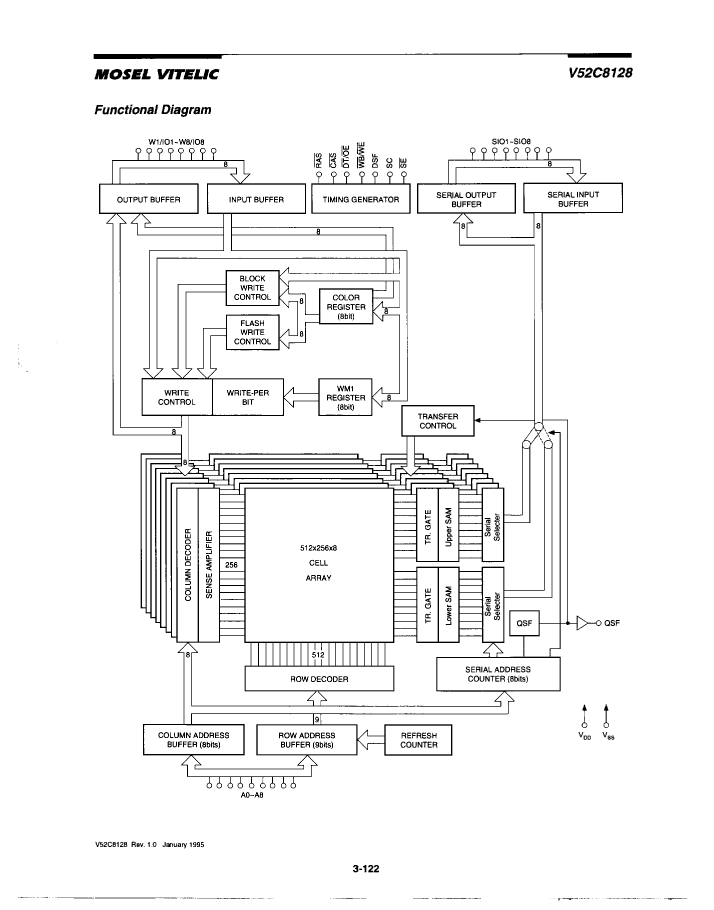

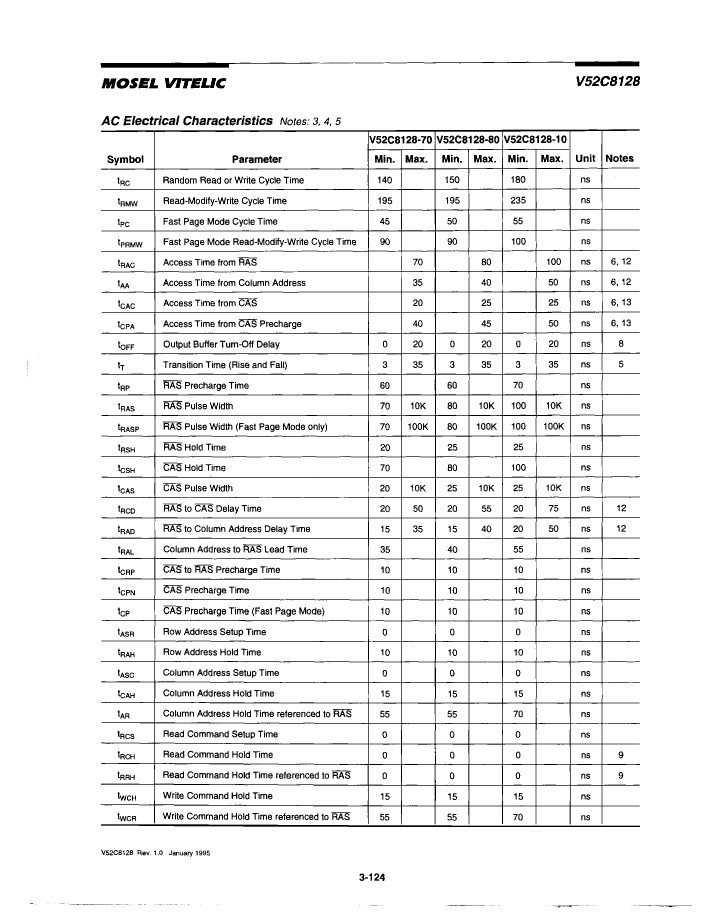

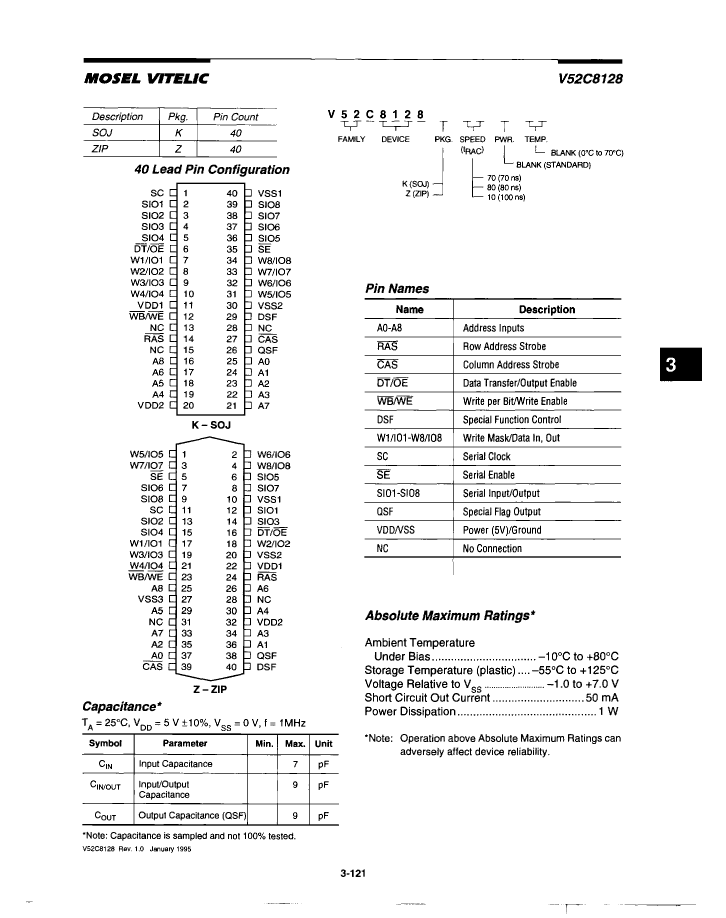

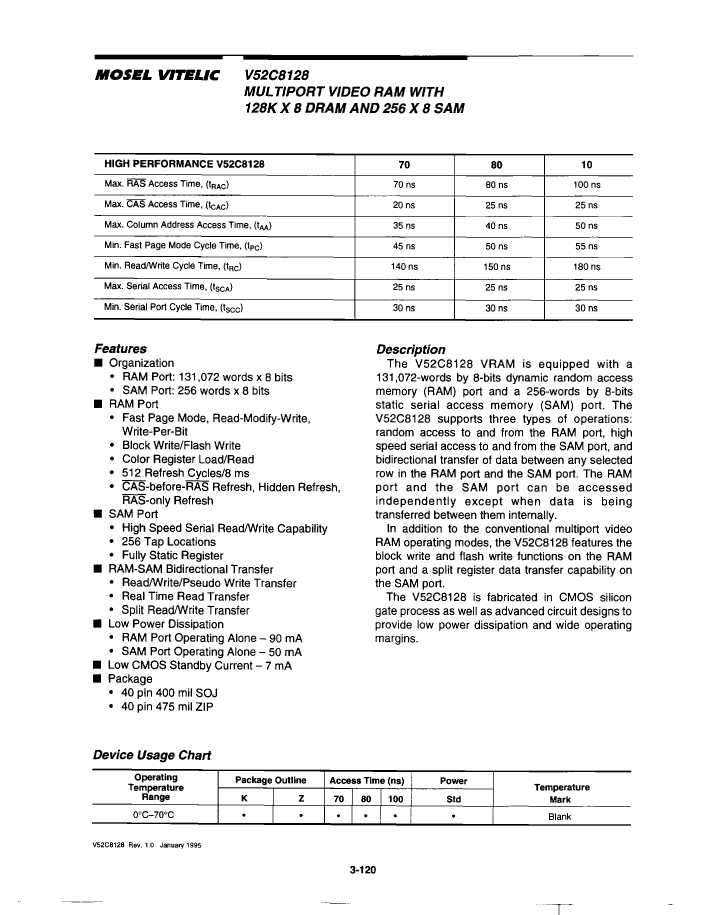

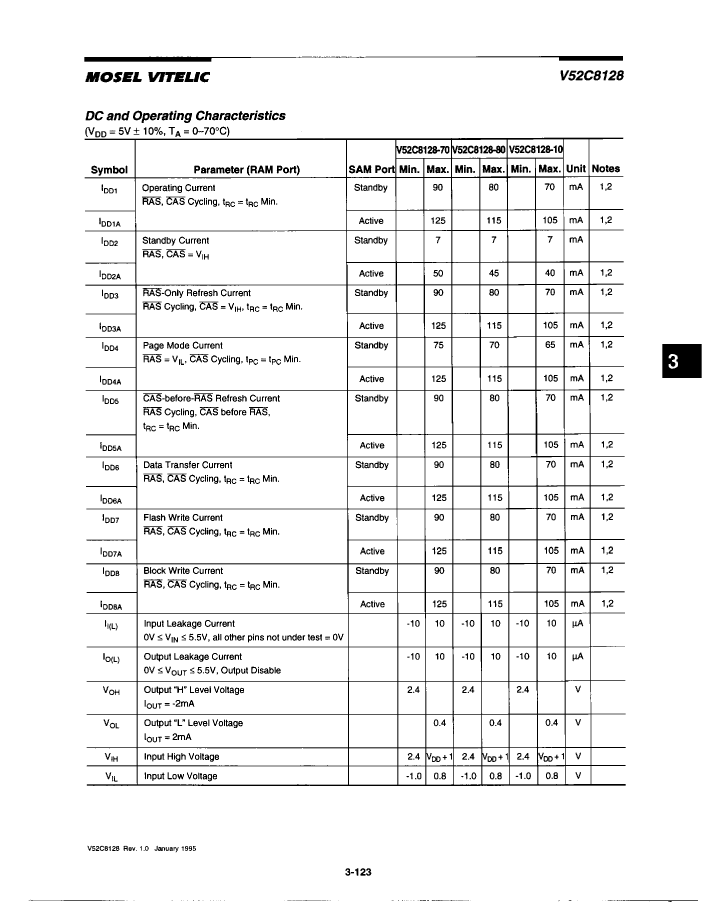

V52C8128Z70 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

V52C8128Z70 Related Products

	V52C8128Z70	V52C8128K70	V52C8128K10	V52C8128K80	V52C8128Z80	V52C8128Z10
Description	Video DRAM, 128KX8, 70ns, CMOS, PZIP40, 0.475 INCH, PLASTIC, ZIP-40	Video DRAM, 128KX8, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 128KX8, 100ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 128KX8, 80ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Video DRAM, 128KX8, 80ns, CMOS, PZIP40, 0.475 INCH, PLASTIC, ZIP-40	Video DRAM, 128KX8, 100ns, CMOS, PZIP40, 0.475 INCH, PLASTIC, ZIP-40
Maker	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )
Parts packaging code	ZIP	SOJ	SOJ	SOJ	ZIP	ZIP
package instruction	ZIP,	SOJ,	SOJ, SOJ40,.44	SOJ, SOJ40,.44	ZIP, ZIP40,.1	ZIP, ZIP40,.1
Contacts	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	70 ns	100 ns	80 ns	80 ns	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 256 X 8 SAM PORT
JESD-30 code	R-PZIP-T40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PZIP-T40	R-PZIP-T40
length	51.2064 mm	26.035 mm	26.035 mm	26.035 mm	51.2064 mm	51.2064 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	40	40	40	40	40	40
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	SOJ	SOJ	ZIP	ZIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512	512
Maximum seat height	12.065 mm	3.6576 mm	3.6576 mm	3.6576 mm	12.065 mm	12.065 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG
width	2.794 mm	10.16 mm	10.16 mm	10.16 mm	2.794 mm	2.794 mm
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	-	e0	e0	e0	e0
Encapsulate equivalent code	-	-	SOJ40,.44	SOJ40,.44	ZIP40,.1	ZIP40,.1
power supply	-	-	5 V	5 V	5 V	5 V
Maximum standby current	-	-	0.007 A	0.007 A	0.007 A	0.007 A
Maximum slew rate	-	-	0.115 mA	0.13 mA	0.13 mA	0.115 mA
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
