MB818253-70PFTN: DescriptionVideo DRAM, 256KX8, CMOS, PDSO40; Categorystorage storage; File Size2MB，56 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB818253-70PFTN Overview

Video DRAM, 256KX8, CMOS, PDSO40

MB818253-70PFTN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
Parts packaging code	TSOP
package instruction	TSOP, TSOP40/44,.46,32
Contacts	44
Reach Compliance Code	compliant
Maximum access time	70 ns
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
memory density	2097152 bit
Memory IC Type	VIDEO DRAM
memory width	8
Number of terminals	40
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP40/44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.002 A
Maximum slew rate	0.19 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL

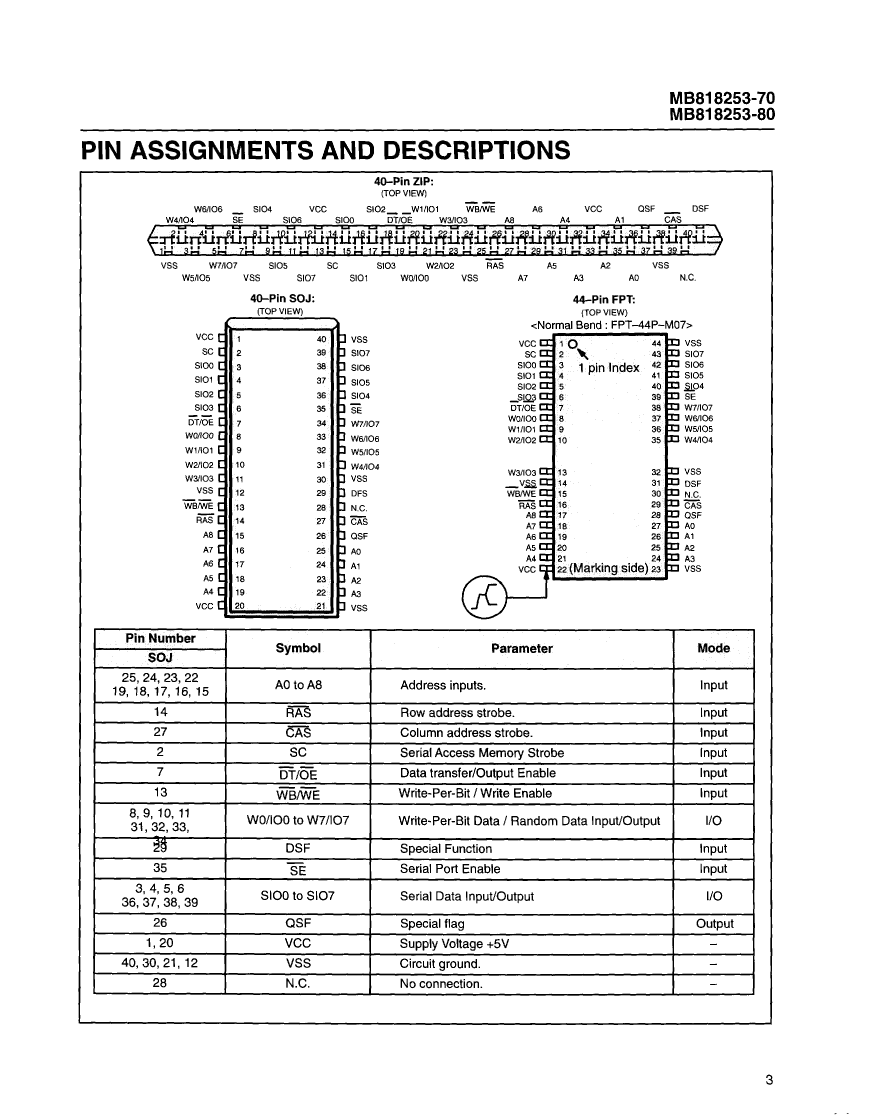

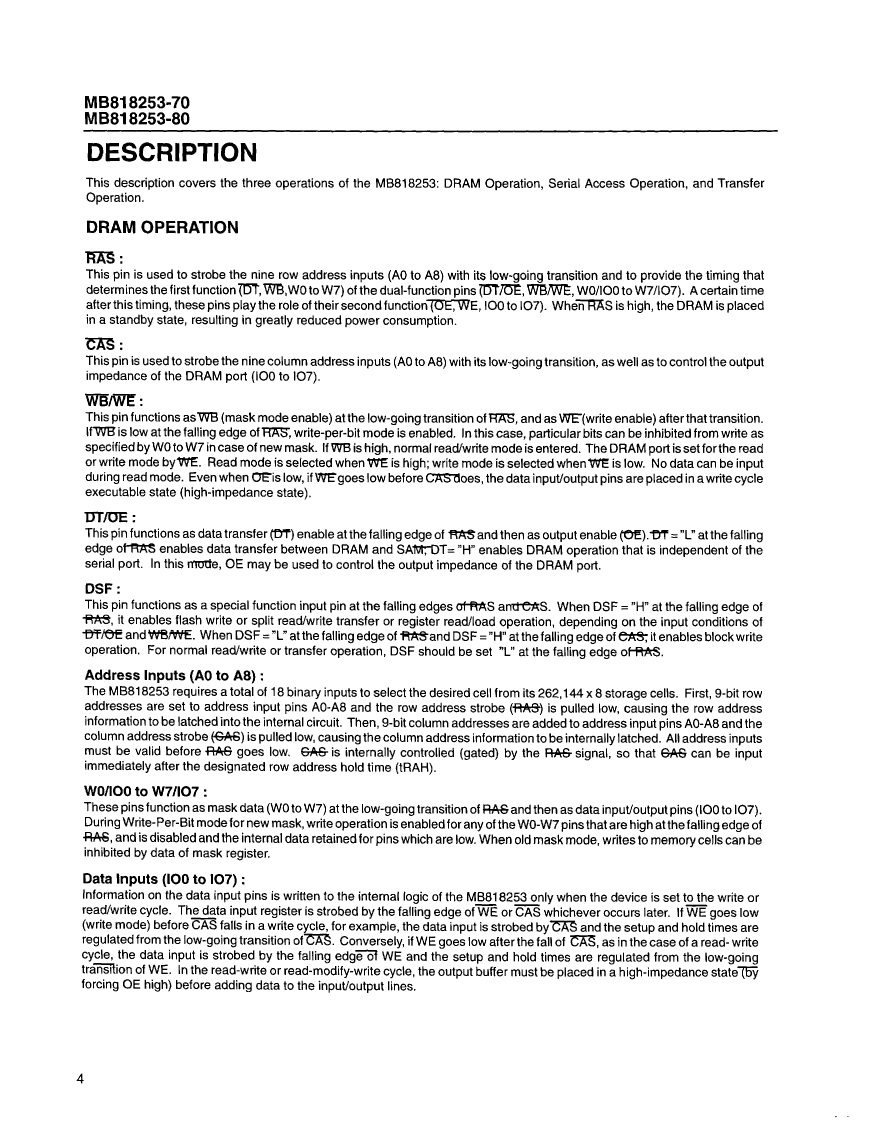

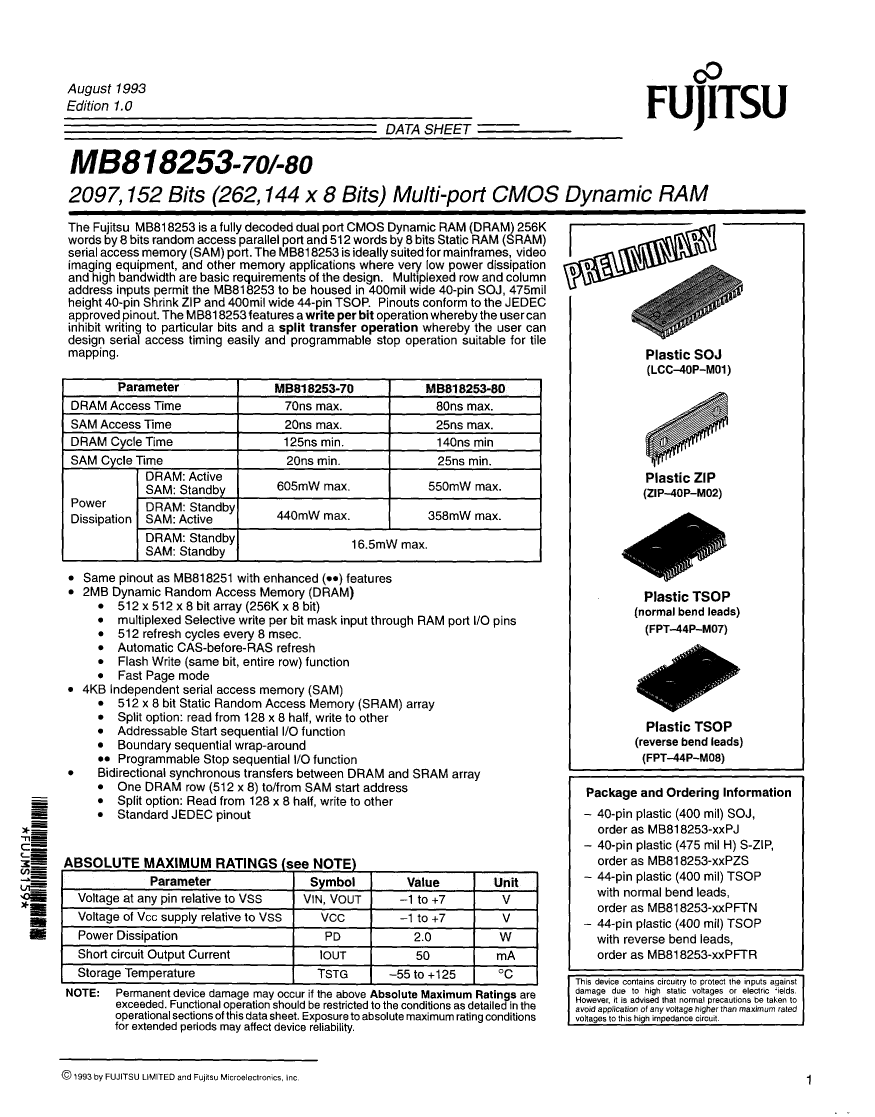

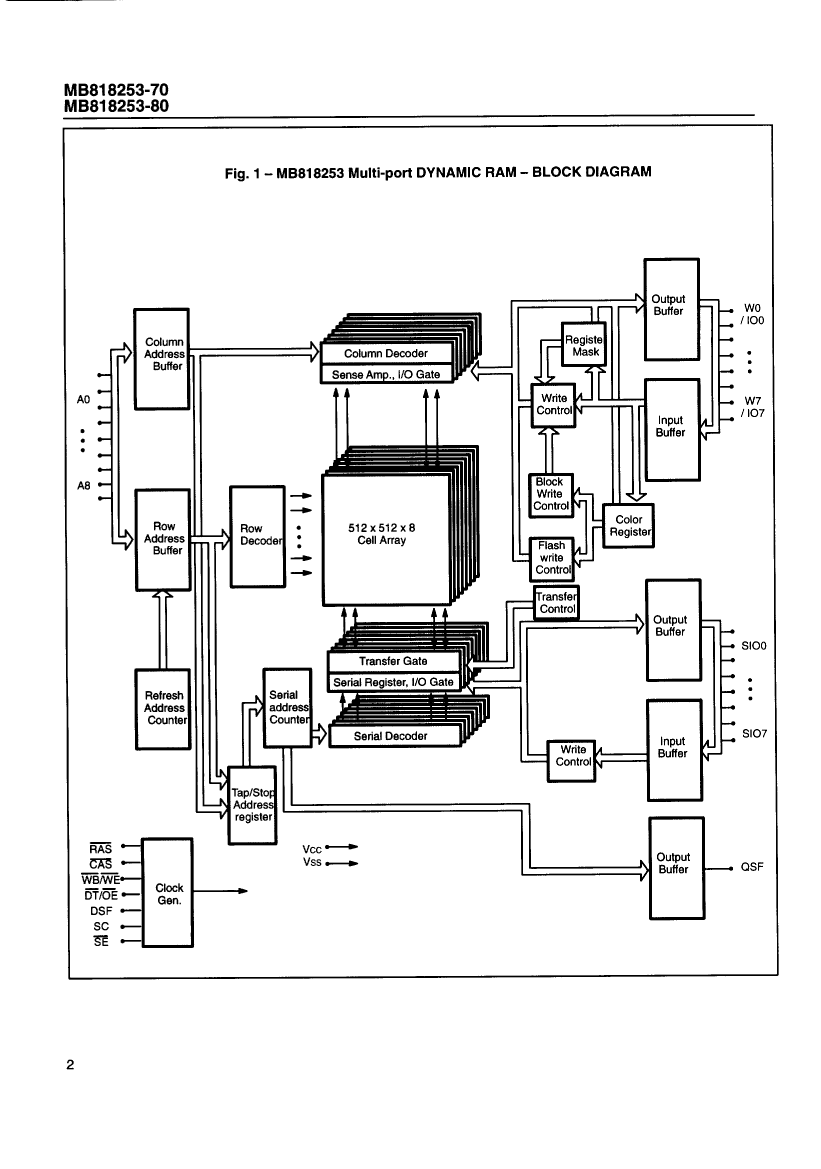

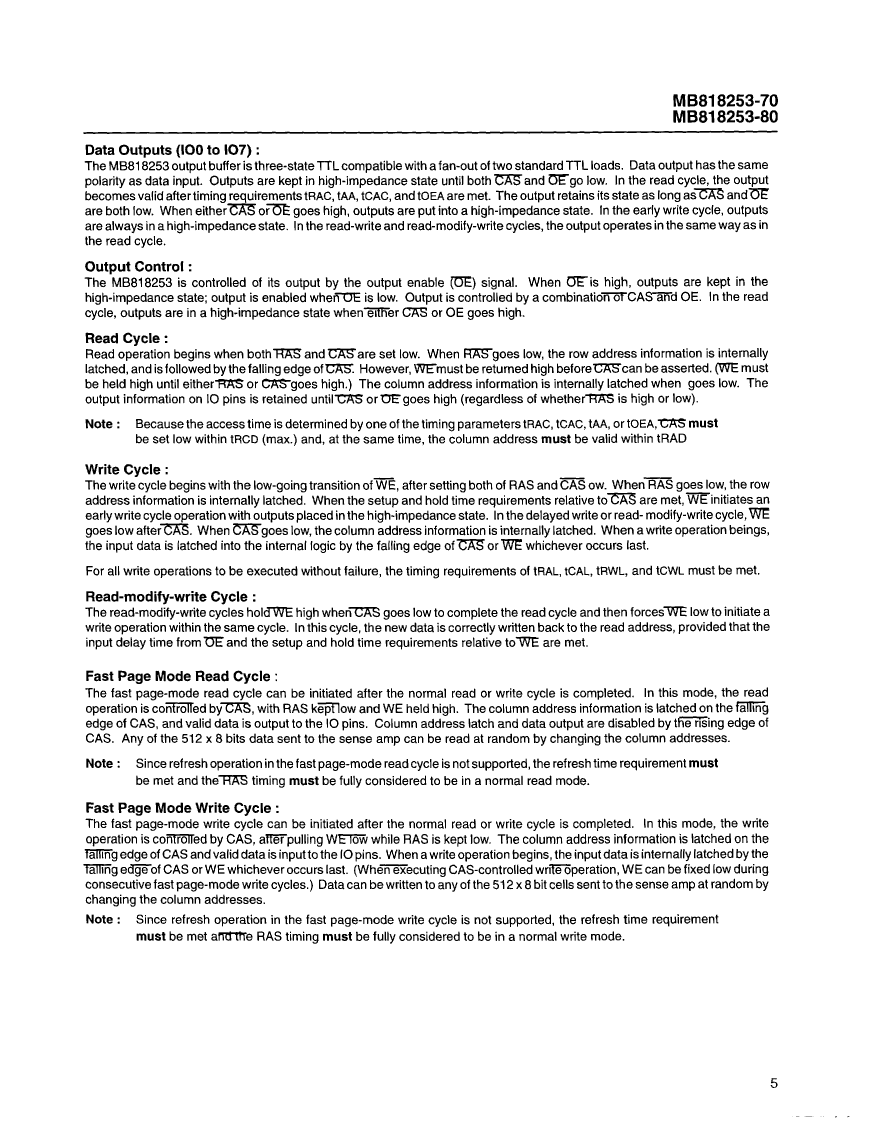

Preview

Download Datasheet

View All

MB818253-70PFTN Related Products

	MB818253-70PFTN	MB818253-80PFTR	MB818253-80PZS	MB818253-80PJ	MB818253-70PZS	MB818253-70PFTR
Description	Video DRAM, 256KX8, CMOS, PDSO40	Video DRAM, 256KX8, CMOS, PDSO40	Video DRAM, 256KX8, CMOS, PZIP40	Video DRAM, 256KX8, CMOS, PDSO40	Video DRAM, 256KX8, CMOS, PZIP40	Video DRAM, 256KX8, CMOS, PDSO40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP	TSOP	ZIP	SOJ	ZIP	TSOP
package instruction	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32	ZIP, ZIP40,.07,35	SOJ, SOJ40,.44	ZIP, ZIP40,.07,35	TSOP, TSOP40/44,.46,32
Contacts	44	44	40	40	40	44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
Maximum access time	70 ns	80 ns	80 ns	80 ns	70 ns	70 ns
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PZIP-T40	R-PDSO-J40	R-PZIP-T40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bi
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	8	8	8	8	8	8
Number of terminals	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	ZIP	SOJ	ZIP	TSOP
Encapsulate equivalent code	TSOP40/44,.46,32	TSOP40/44,.46,32	ZIP40,.07,35	SOJ40,.44	ZIP40,.07,35	TSOP40/44,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A
Maximum slew rate	0.19 mA	0.165 mA	0.165 mA	0.165 mA	0.19 mA	0.19 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	J BEND	THROUGH-HOLE	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.9 mm	1.27 mm	0.9 mm	0.8 mm
Terminal location	DUAL	DUAL	ZIG-ZAG	DUAL	ZIG-ZAG	DUAL
Maker	FUJITSU	-	FUJITSU	FUJITSU	FUJITSU	FUJITSU
