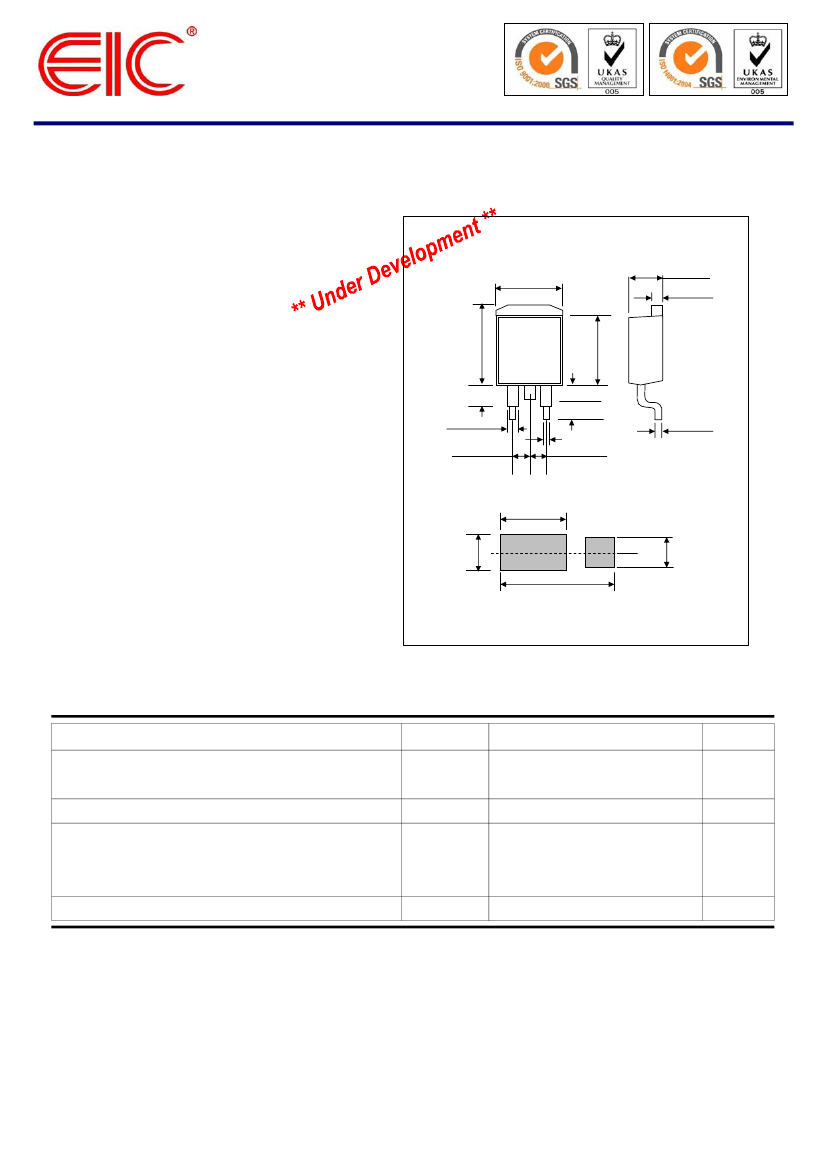

S5KP SERIES
V
RM
: 5.0 - 180 Volts
P
PK
: 5000 Watts
FEATURES :
* 5000W Peak Pulse Power
* Excellent clamping capability
* Low incremental surge resistance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min.)
* Pb / RoHS Free
SURFACE MOUNT
TRANSIENT VOLTAGE SUPPRESSOR
D
2
PAK
0.409(10.4)
0.387(9.80)
0.189(4.8)
0.137(4.4)
0.055(1.4)
0.047(1.2)
0.357(9.1)
0.335(8.5)
0.418(10.6)
0.378(9.60)
1 2
0.110(2.8)
0.055(1.4)
0.039(1.0)
0.108(2.75)
0.092(2.35)
3
0.236(6.0)
0.197(5.0)
0.026(0.7)
0.011(0.3)
MECHANICAL DATA
* Case : D PAK(TO-263)
* Epoxy : UL94V-O rate flame retardant
* Lead : Surface Mount per J-STD-020C,
Method 208 guaranteed
* Polarity : Heatsink is Anode
* Mounting position : Any
* Weight : 1.7 grams (approximately)
2
0.035(0.9)max.
0.108(2.75)
0.092(2.35)
1. Heathink
2. Heathink
3. Cathode
0.33(8.38)
0.42(10.66)
0.63(17.02)
0.24(6.096)
DEVICES FOR BIPOLAR APPLICATIONS
For Bi-directional use C or CA Suffix
Electrical characteristics apply in both directions
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
.
Rating
Peak Pulse Power Dissipation at tp = 1ms
(Note 1, Fig. 4)
Steady State Power Dissipation
Peak Forward Surge Current, 8.3ms Single Half
Sine-Wave Superimposed on Rated Load
(JEDEC Method) (Note 2)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
Value
Minimum 5000
5.0
Unit
W
W
I
FSM
400
A
T
J
, T
STG
- 55 to + 150
°C
Notes:
(1) Non-repetitive Current pulse, per Fig. 5 and derated above Ta = 25 °C per Fig. 1
(2) Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum.
Page 1 of 4
Rev. 02 : August 7, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM
ELECTRICAL CHARACTERISTICS
( Ta = 25°C)
Breakdown Voltage @ I
T
( Note 1 )
TYPE
V
BR
(V)
Min.
Max.
I
T
(mA)
Reverse
Stand off
Voltage
V
RM
(V)
Maximum
Reverse Leakage
@ V
RM
I
R
(μA)
Maximum
Peak Pulse
(2)
Current
I
PPM
(A)
70
78
65
72
62
69
58
65
55
61
52
57
50
55
49
53
47
52
44
49
40
44
37
41
36
40
33
36
31
34
28
31
26
28
24
26
19
21
18
19
17
18
16
17
Maximum
Maximum
Clamping
Temperature
Voltage @ I
PPM
Coefficient
V
C
of V
BR
(V)
(%/°C)
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
100
91
103
94
107
97
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
211
194
263
242
281
258
298
274
316
290
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.112
0.112
0.112
0.112
0.112
0.112
0.114
0.114
0.114
0.114
0.114
0.114
S5KP40
44.4
54.3
5.0
40
10
S5KP40A
44.4
49.1
5.0
40
10
S5KP43
47.8
58.4
5.0
43
10
S5KP43A
47.8
52.8
5.0
43
10
S5KP45
50.0
61.1
5.0
45
10
S5KP45A
50.0
55.3
5.0
45
10
S5KP48
53.3
65.2
5.0
48
10
S5KP48A
53.3
58.9
5.0
48
10
S5KP51
56.7
69.3
5.0
51
10
S5KP51A
56.7
62.7
5.0
51
10
S5KP54
60.0
73.3
5.0
54
10
S5KP54A
60.0
66.3
5.0
54
10
S5KP56
62.2
76.1
5.0
56
10
S5KP56A
62.2
68.8
5.0
56
10
S5KP58
64.4
78.7
5.0
58
10
S5KP58A
64.4
71.2
5.0
58
10
S5KP60
66.7
81.5
5.0
60
10
S5KP60A
66.7
73.7
5.0
60
10
S5KP64
71.1
96.9
5.0
64
10
S5KP64A
71.1
78.6
5.0
64
10
S5KP70
77.6
95.1
5.0
70
10
S5KP70A
77.6
86.0
5.0
70
10
S5KP75
83.3
102
5.0
75
10
S5KP75A
83.3
92.1
5.0
75
10
S5KP78
86.7
106
5.0
78
10
S5KP78A
86.7
95.8
5.0
78
10
S5KP85
94.4
115
5.0
85
10
S5KP85A
94.4
104
5.0
85
10
S5KP90
100
122
5.0
90
10
S5KP90A
100
111
5.0
90
10
S5KP100
111
136
5.0
100
10
S5KP100A
111
123
5.0
100
10
S5KP110
122
149
5.0
110
10
S5KP110A
122
135
5.0
110
10
S5KP120
133
163
5.0
120
10
S5KP120A
133
147
5.0
120
10
S5KP150
167
204
5.0
150
10
S5KP150A
167
184
5.0
150
10
S5KP160
178
217
5.0
160
10
S5KP160A
178
196
5.0
160
10
S5KP170
189
231
5.0
170
10
S5KP170A
189
209
5.0
170
10
S5KP180
200
244
5.0
180
10
S5KP180A
200
221
5.0
180
10
Notes:
(1) V
BR
measured after I
T
applied for 300
μs.,
I
T
= square wave pulse or equivalent.
(2) Surge Current waveform per Fig. 5.
(3) V
F
= 3.5 Volts max. for devices of V
R
< 100 V, and V
F
= 5 Volts max. for devices of V
R
> 100 V.
(4) For Bi-directional devices having V
R
of 10 Volts and under the IR limit is doubled.
(5) " S KP " will be omitted in marking on the diode.
Page 3 of 4
Rev. 02 : August 7, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM

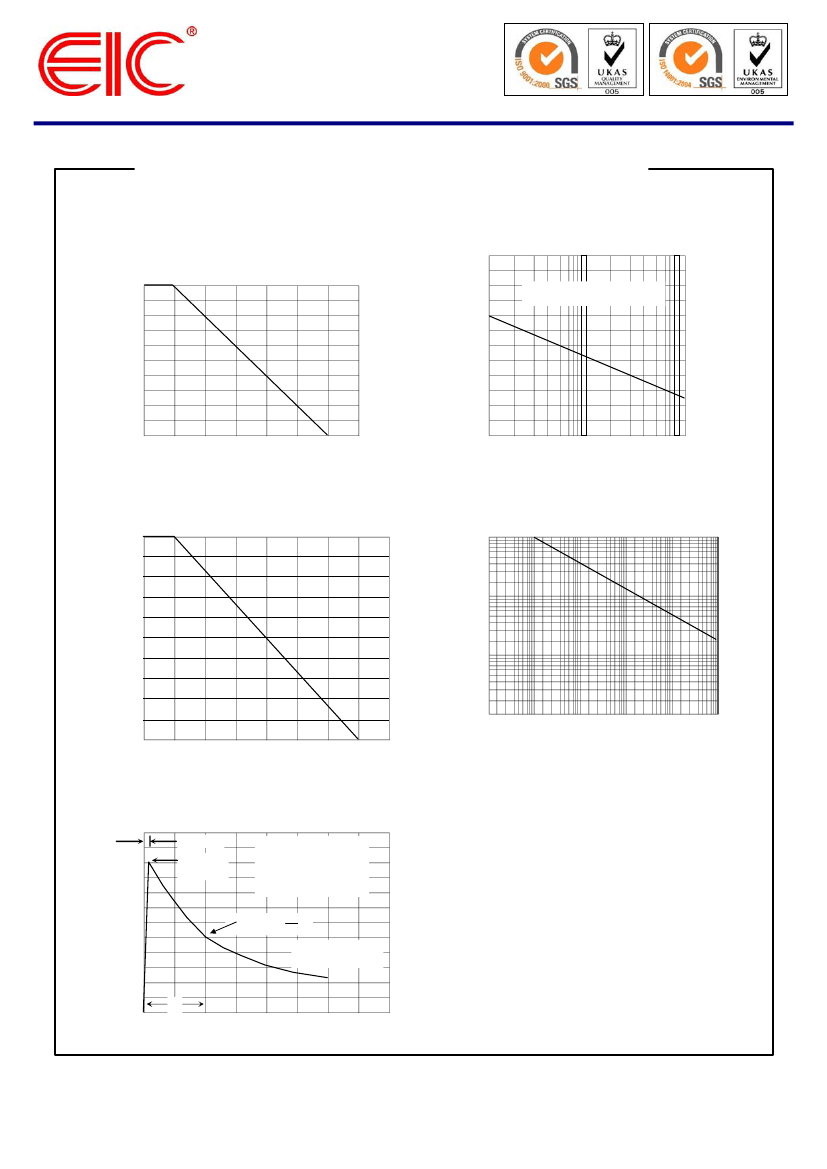

RATING AND CHARACTERISTIC CURVES ( S5KP SERIES )
