Chip Inductor; CIL Series
General Type
Feature
Magnetic shielding eliminates crosstalk, thus permitting higher
mounting density.
Excellent solderability and high heat resistance for either flow or
reflow soldering.
Monolithic structure for high reliability.
Application
Resonance circuits, PLL circuits, Noise suppression, etc.
As it has ferrite body and 100 % Ag internal conductor, the CIL series Inductors have excellent Q characteristics and
free of cross talk.
Operating Temp
Storage Temp
-55~+125
-10~+40

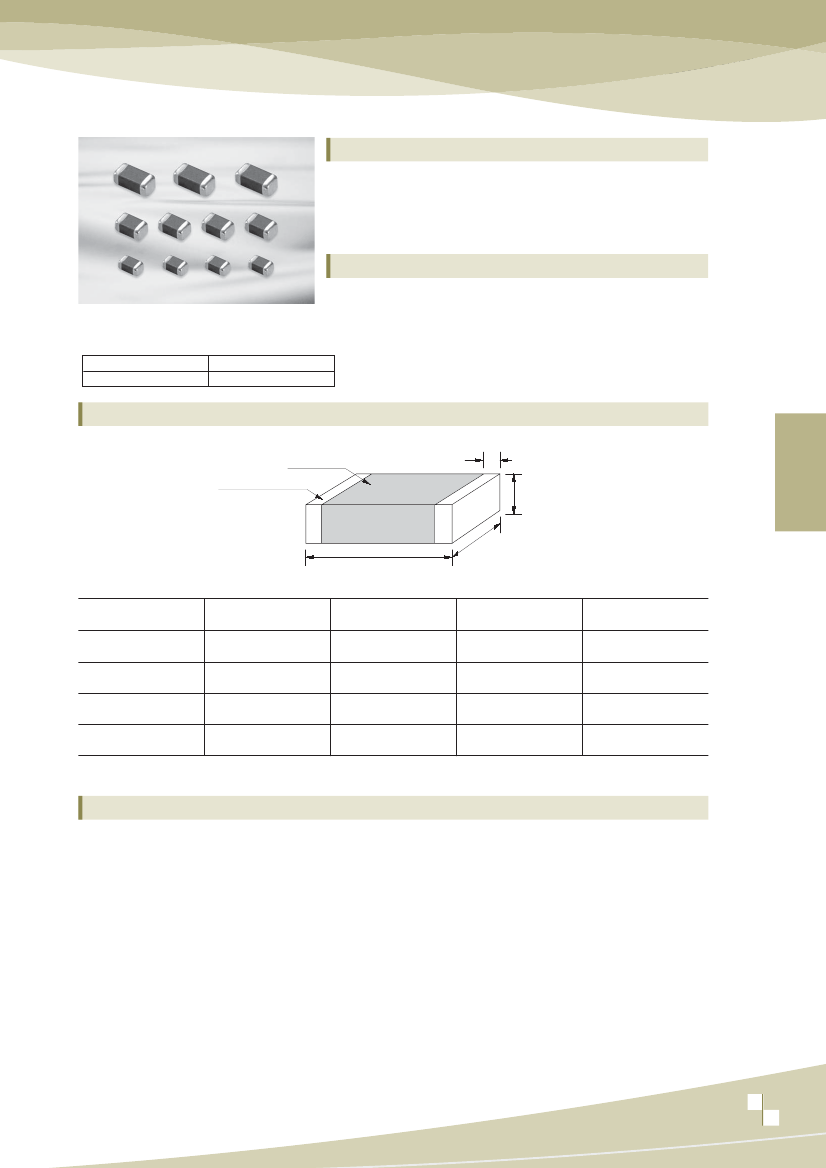

Dimensions
CIL
Series
Ferrite Body
d
t
External Electrode
W
L
Unit : mm
SIZE CODE
05
10
21
31
L
1.0 0.05
1.6 0.15
2.0 0.2
3.2 0.2
0.5
0.8
W
0.05
0.15
0.2
T
0.5 0.05
0.8 0.15
0.85 0.2
1.25 0.2
0.6
1.1
0.2
0.2
d
0.25
0.1
0.3 0.2
0.5 0.2,-0.3
0.5 0.2,-0.3
1.25
1.6 0.2
Part Numbering
CI
(1)
L
(2)
10
(3)
Y
(4)
5R6
(5)
K
(6)
N
(7)
C
(8)
(1) Chip Inductor
(2) L:General Type
(3) Dimension
(4) Material code(N, J, Y, S)
(5) Inductance(R10:0.1 H, 5R6:5.6 H, 100:10 H)
(6) Tolerance(K: 10%, M: 20%)
(7) Thickness option(N:Standard, A:Thinner than standard, B:Thicker than standard)
(8) Packaging(C:paper tape, E:embossed tape)
18
19
CIL 1005(0402) Type
Part No.
CIL 05J 2R2
Thickness
(mm)
0.5 0.05
Inductance
( H)
2.2 20%, 10%
Q
Min.
20
L, Q test
frequency
(MHZ)
10
SRF
(MHZ)
Min.
40
DC
resistance
( ) Max.
1.70
Rated
current
(mA) Max.
10
CIL 1608(0603) Type
Part No.
CIL 10N 47N
CIL 10N 56N
CIL 10N 68N
CIL 10N 82N
CIL 10N R10
CIL 10N R12
CIL 10N R15
CIL 10N R18
CIL 10N R22
CIL 10N R27
CIL 10N R33
CIL 10N R39
CIL 10N R47
CIL 10N R56
CIL 10N R68
CIL 10N R82
CIL 10J 1R0
CIL 10J 1R2
CIL 10J 1R5
CIL 10J 1R8
CIL 10J 2R2
CIL 10J 2R7
CIL 10J 3R3
CIL 10J 3R9
CIL 10J 4R7
CIL 10Y 5R6
CIL 10Y 6R8
CIL 10Y 8R2
CIL 10Y 100
CIL 10Y 120
CIL 10S 150
CIL 10S 180
CIL 10S 220
CIL 10S 270
CIL 10S 330
Thickness
(mm)
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
0.80 0.15
Inductance
( H)
0.047 20%, 10%
0.056 20%, 10%
0.068 20%, 10%
0.082 20%, 10%
0.10 20%, 10%
0.12 20%, 10%
0.15 20%, 10%
0.18 20%, 10%
0.22 20%, 10%
0.27 20%, 10%
0.33 20%, 10%
0.39 20%, 10%
0.47 20%, 10%
0.56 20%, 10%
0.68 20%, 10%
0.82 20%, 10%
1.0 20%, 10%
1.2 20%, 10%
1.5 20%, 10%
1.8 20%, 10%
2.2 20%, 10%
2.7 20%, 10%
3.3 20%, 10%
3.9 20%, 10%
4.7 20%, 10%
5.6 20%, 10%
6.8 20%, 10%
8.2 20%, 10%
10.0 20%, 10%
12.0 20%, 10%
15.0 20%, 10%
18.0 20%, 10%
22.0 20%, 10%
27.0 20%, 10%
33.0 20%, 10%
Q
Min.
10
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
35
35
35
35
35
35
35
35
35
35
35
35
35
35
20
20
20
20
20
L, Q test
frequency
(MHZ)
50
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
SRF
(MHZ)
Min.
260
260
250
245
240
205
180
165
150
136
125
110
105
95
80
75
70
60
55
50
45
40
38
36
33
22
20
18
17
15
14
13
11
10
9
DC
resistance
( ) Max.
0.30
0.30
0.30
0.30
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
1.55
1.70
2.10
2.55
2.75
1.70
1.85
2.10
2.75
2.95
Rated
current
(mA) Max.
50
50
50
50
50
50
50
50
50
50
35
35
35
35
35
35
25
25
25
25
15
15
15
15
15
5
5
5
5
5
1
1
1
1
1
: Tolerance (K : 10%, M : 20%)
Test equipment : Agilent 4291B+16193A
CIL 2012(0805) Type
Part No.
CIL 21N 47N
CIL 21N 68N
CIL 21N 82N
CIL 21N R10
CIL 21N R12
CIL 21N R15
CIL 21N R18
CIL 21N R22
CIL 21N R27
CIL 21N R33
CIL 21N R39
CIL 21N R47
CIL 21N R56
CIL 21N R68
CIL 21N R82
CIL 21J 1R0
CIL 21J 1R2
CIL 21J 1R5
CIL 21J 1R8
CIL 21J 2R2
CIL 21J 2R7
CIL 21J 3R3
CIL 21J 3R9
CIL 21J 4R7
CIL 21Y 5R6
CIL 21Y 6R8
CIL 21Y 8R2
CIL 21Y 100
CIL 21Y 120
CIL 21S 150
CIL 21S 180
CIL 21S 220
CIL 21S 270
CIL 21S 330
Thickness
(mm)
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
0.85 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
1.25 0.2
Inductance
( H)
0.047 20%, 10%
0.068 20%, 10%
0.082 20%, 10%
0.10 20%, 10%
0.12 20%, 10%
0.15 20%, 10%
0.18 20%, 10%
0.22 20%, 10%
0.27 20%, 10%
0.33 20%, 10%
0.39 20%, 10%
0.47 20%, 10%
0.56 20%, 10%
0.68 20%, 10%
0.82 20%, 10%
1.0 20%, 10%
1.2 20%, 10%
1.5 20%, 10%
1.8 20%, 10%
2.2 20%, 10%
2.7 20%, 10%
3.3 20%, 10%
3.9 20%, 10%
4.7 20%, 10%
5.6 20%, 10%
6.8 20%, 10%
8.2 20%, 10%
10.0 20%, 10%
12.0 20%, 10%
15.0 20%, 10%
18.0 20%, 10%
22.0 20%, 10%
27.0 20%, 10%
33.0 20%, 10%
Q
Min.
15
15
15
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
50
50
30
30
30
30
30
L, Q test
frequency
(MHZ)
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
SRF
(MHZ)
Min.
320
280
255
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
13
DC
Rated
resistance current
( ) Max. (mA) Max.
0.20
0.20
0.20
0.20
0.20
0.25
0.25
0.30
0.30
0.30
0.40
0.40
0.50
0.50
0.60
0.30
0.40
0.40
0.40
0.50
0.60
0.60
0.80
0.90
0.50
0.60
0.70
0.80
0.90
0.80
0.90
1.10
1.15
1.25
300
300
300
250
250
250
250
250
250
250
200
200
150
150
150
50
50
50
50
30
30
30
30
30
25
15
15
15
15
5
5
5
5
5
CIL
Series
: Tolerance (K : 10%, M : 20%)
Test equipment : Agilent 4291B+16193A
20
21
CIL 3216(1206) Type
Part No.
CIL 31N 47N
CIL 31N 68N
CIL 31N R10
CIL 31N R12
CIL 31N R15
CIL 31N R18
CIL 31N R22
CIL 31N R27
CIL 31N R33
CIL 31N R39
CIL 31N R47
CIL 31N R56
CIL 31N R68
CIL 31N R82
CIL 31J 1R0
CIL 31J 1R2
CIL 31J 1R5
CIL 31J 1R8
CIL 31J 2R2
CIL 31J 2R7
CIL 31J 3R3
CIL 31J 3R9
CIL 31J 4R7
CIL 31Y 5R6
CIL 31Y 6R8
CIL 31Y 8R2
CIL 31Y 100
CIL 31Y 120
CIL 31S 150
CIL 31S 180
CIL 31S 220
CIL 31S 270
CIL 31S 330
Thickness
(mm)
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
0.6 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
0.6 0.2
0.6 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
1.1 0.2
Inductance
( H)
0.047 20%, 10%
0.068 20%, 10%
0.10 20%, 10%
0.12 20%, 10%
0.15 20%, 10%
0.18 20%, 10%
0.22 20%, 10%
0.27 20%, 10%
0.33 20%, 10%
0.39 20%, 10%
0.47 20%, 10%
0.56 20%, 10%
0.68 20%, 10%
0.82 20%, 10%
1.0 20%, 10%
1.2 20%, 10%
1.5 20%, 10%
1.8 20%, 10%
2.2 20%, 10%
2.7 20%, 10%
3.3 20%, 10%
3.9 20%, 10%
4.7 20%, 10%
5.6 20%, 10%
6.8 20%, 10%
8.2 20%, 10%
10.0 20%, 10%
12.0 20%, 10%
15.0 20%, 10%
18.0 20%, 10%
22.0 20%, 10%
27.0 20%, 10%
33.0 20%, 10%
Q
Min.
20
20
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
50
50
35
35
35
35
35
L, Q test
frequency
(MHZ)
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
SRF
(MHZ)
Min.
320
280
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
13
DC
Rated
resistance current
( ) Max. (mA) Max.
0.15
0.25
0.25
0.30
0.30
0.40
0.40
0.50
0.60
0.50
0.60
0.70
0.80
0.90
0.40
0.50
0.50
0.50
0.60
0.60
0.70
0.80
0.90
0.70
0.80
0.90
1.00
1.05
0.70
0.70
0.90
0.90
1.05
300
300
250
250
250
250
250
250
250
200
200
150
150
150
100
100
50
50
50
50
50
50
50
25
25
25
25
15
5
5
5
5
5
: Tolerance (K : 10%, M : 20%)
Test equipment : Agilent 4291B+16193A

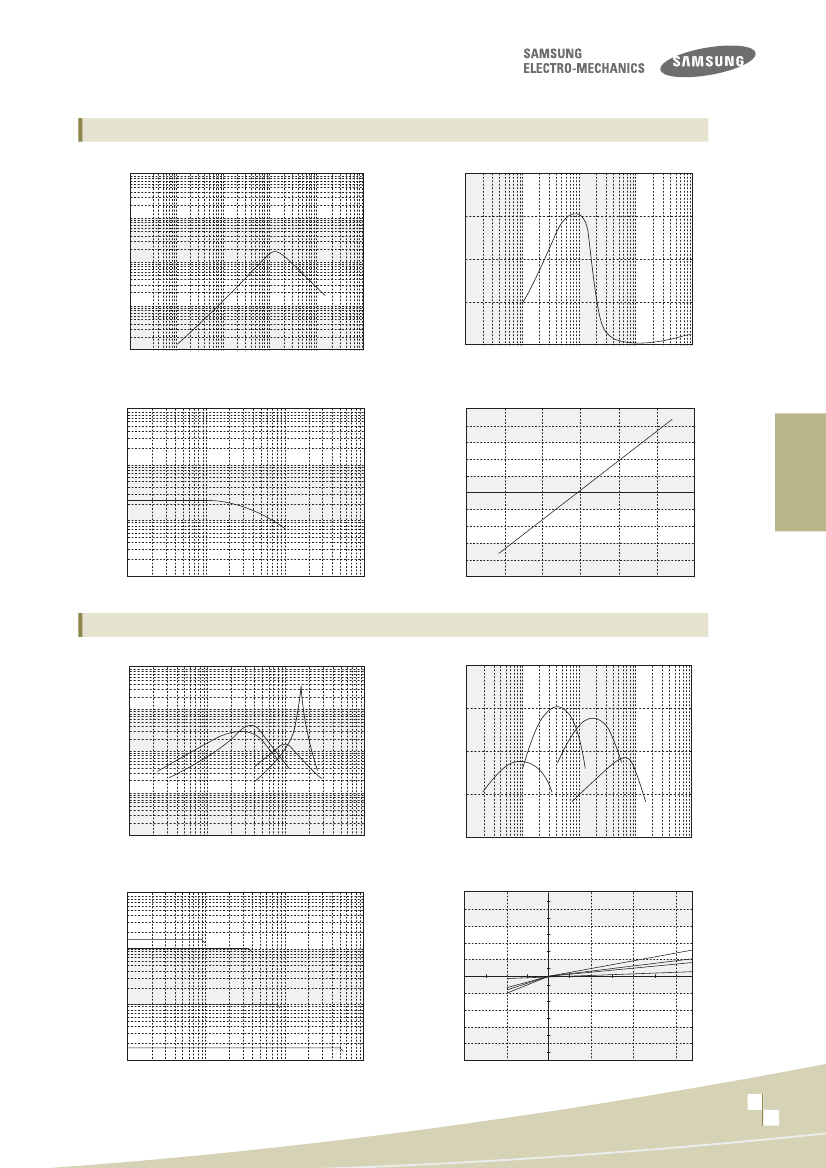

CIL 1005(0402) Type
IMPEDANCE CHARACTERISTICS
100000
80
Q CHARACTERISTICS
10000
IMPEDANCE ( )
60
100
2.2 H
20
2.2 H
0
0.1
10
0.1
1
10
100
FREQUENCY(MH
Z
)
1000
10000
Q
1000
40
1
10
FREQUENCY(MH
Z
)
100
100
DC BIAS CHARACTERISTICS
INDUCTANCE CHANGE(%)
TEMPERATURE CHARACTERISTICS
20
16
12
2.2 H
CIL
Series
INDUCTANCE( H)
10
8
4
0
-4
-8
-12
-16
-20
-50
-25
0
50
25
TEMPERATURE( )
75
1
2.2 H
0.1 1
10
DC BIAS(mA)
100
1000
CIL 1608(0603) Type
IMPEDANCE CHARACTERISTICS
100000
80
Q CHARACTERISTICS
8.2 H
10000
IMPEDANCE ( )
0.68 H
8.2 H
100
Q
1000
22 H
1.0 H
60
1.0 H
40
22 H
0.68 H
20
0
0.1
10
1
10
100
FREQUENCY(MH
Z
)
1000
1
10
FREQUENCY(MH
Z
)
100
1000
DC BIAS CHARACTERISTICS
100
INDUCTANCE CHANGE(%)
TEMPERATURE CHARACTERISTICS
16
12
8
4
-25
0
-4
-8
-12
-16
100
TEMPERATURE( )
22
23
15 H
INDUCTANCE( H)
10
10 H
25
50
75
0.18 H
10 H
1.0 H
15 H
1
1.0 H
0.18 H
0.1 1
10
DC BIAS(mA)
100
1000
Analogue and Mixed Signal
京公网安备 11010802033920号
EEWORLD
