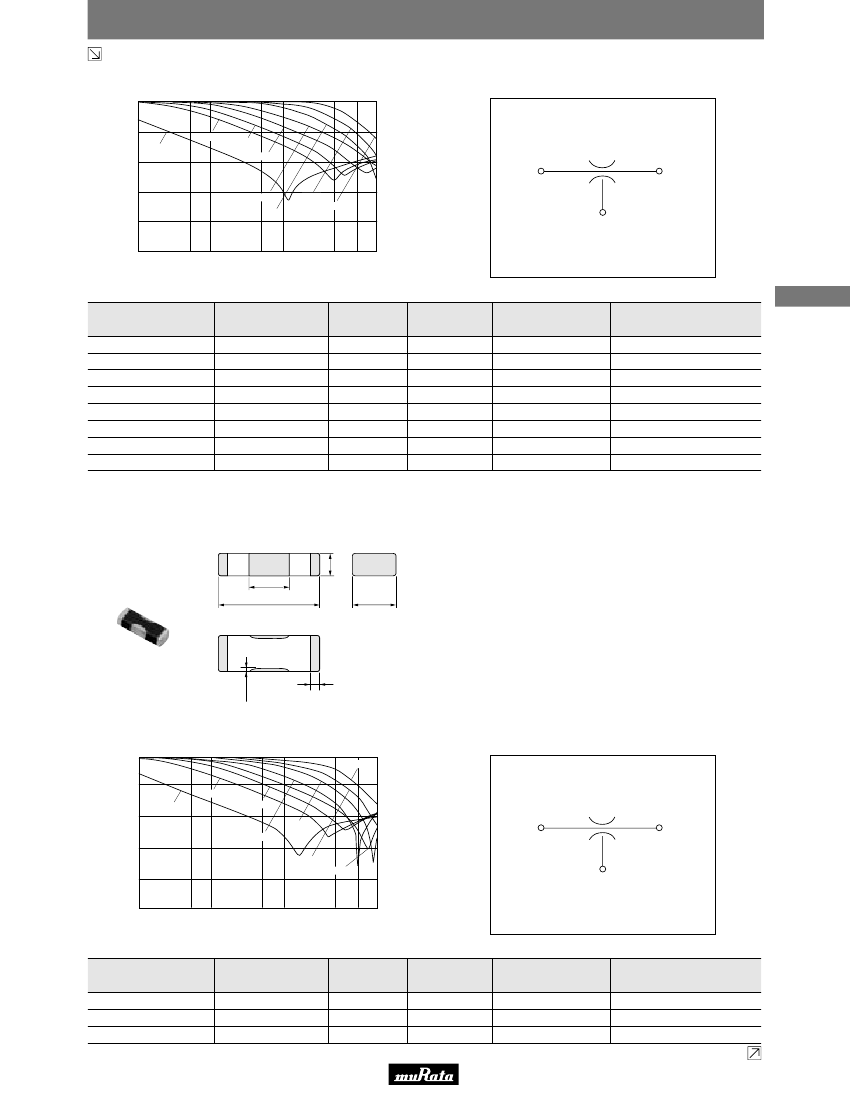

Chip EMIFILr Capacitor Type
Chip EMIFILr
o
NFM21C Series
+0.2
0.2 -0.1
1.25±0.1
0.3±0.2
0.85±0.1
4
Noise Suppression Products/(EMIFIL
®
)
0.6±0.2
2.0±0.2
(in mm)
IL of Main Items
0
22pF
47pF
20
Insertion Loss (dB)
100pF
220pF
470pF
40
22000pF
60
2200pF
80
1000pF
Input
Equivalent Circuit
Output
* no polarity.
GND
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
Part Number
NFM21CC220U1H3
NFM21CC470U1H3
NFM21CC101U1H3
NFM21CC221R1H3
NFM21CC471R1H3
NFM21CC102R1H3
NFM21CC222R1H3
NFM21CC223R1H3
Capacitance
(pF)
22 +20%,-20%
47 +20%,-20%
100 +20%,-20%
220 +20%,-20%
470 +20%,-20%
1000 +20%,-20%
2200 +20%,-20%
22000 +20%,-20%
Rated Voltage
(Vdc)
50
50
50
50
50
50
50
50
Rated Current
300mA
300mA
300mA
300mA
300mA
300mA
300mA
1A
Insulation Resistance
(M ohm)
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
o
NFM3DC Series
1.1±0.3
3.2±0.2
(2)
(1)
0.05min.
(4)
0.3±0.2
(in mm)
(3)
1.25±0.2
0.7±0.2
Continued on the following page.
140
140
Noise
Suppression Products/(EMIFIL
®
Noise
Suppression Products/(EMIFILr)
)
Continued from the preceding page.
IL of Main Item
0
Equivalent Circuit
20
Insertion Loss (dB)
22000pF
40
2200pF
1000pF
470pF
Input
Output
60
220pF
100pF
47pF
22pF
GND
* no polarity.
80
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
4
Part Number
NFM3DCC220U1H3
NFM3DCC470U1H3
NFM3DCC101U1H3
NFM3DCC221R1H3
NFM3DCC471R1H3
NFM3DCC102R1H3
NFM3DCC222R1H3
NFM3DCC223R1H3
22 +50%,-20%
47 +50%,-20%
100 +50%,-20%
220 +50%,-20%
470 +50%,-20%
1000 +50%,-20%
2200 +50%,-20%
22000 +50%,-20%
50
50
50
50
50
50
50
50
300
300
300
300
300
300
300
300
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
1000 min.
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
o
NFM41C Series
1.5±0.3
4.5±0.3
(4)
1.6±0.3
(1)
(3)
0.3
+0.3
-0.2
(2)
0.4±0.3
(in mm)
IL of Main Item
0
22pF
1.0±0.2
Equivalent Circuit
20
2200pF
Insertion Loss (dB)
22000pF
40
100pF
220pF
60
47pF
470pF
80
GND
* no polarity.
Input
Output
1000pF
100
1
5
10
50
100
500
1000
2000
Frequency (MHz)
Part Number
NFM41CC220U2A3
NFM41CC470U2A3
NFM41CC101U2A3
Capacitance
(pF)
22 +50%,-20%
47 +50%,-20%
100 +50%,-20%
Rated Voltage
(Vdc)
100
100
100
Rated Current
(mA)
300
300
300
Insulation Resistance
(M ohm)
10000 min.
10000 min.
10000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
Continued on the following page.
141
141
Noise Suppression Products/(EMIFIL
®
)
Capacitance
(pF)
Rated Voltage
(Vdc)
Rated Current
(mA)
Insulation Resistance
(M ohm)
Operating Temperature Range
(°C)
Noise Suppression
Products/(EMIFIL
®
Noise Suppression
Products/(EMIFILr)
)
Continued from the preceding page.
Part Number
NFM41CC221U2A3
NFM41CC471R2A3
NFM41CC102R2A3
NFM41CC222R2A3
NFM41CC223R2A3
Capacitance
(pF)
220 +50%,-20%
470 +50%,-20%
1000 +50%,-20%
2200 +50%,-20%
22000 +50%,-20%
Rated Voltage
(Vdc)
100
100
100
100
100
Rated Current
(mA)
300
300
300
300
300
Insulation Resistance
(M ohm)
10000 min.
10000 min.
10000 min.
10000 min.
10000 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
Chip EMIFILr Capacitor Type
Chip EMIFILr for Large Current
4
Noise Suppression Products/(EMIFIL
®
)
o
NFM21P Series
1.25±0.1
0.3±0.2
0.6±0.2
2.0±0.2
(in mm)
Insertion Loss(Typ.)
0
0.85±0.1
Equivalent Circuit
20
Insertion Loss (dB)
0.1µF(104R)
0.22µF(224R)
40
Input
Output
60
* no polarity.
0.47µF(474R)
80
1µF(105F)
1µF(105B)
100
1
10
100
Frequency (MHz)
1000 2000
GND
Part Number
NFM21PC104R1E3
NFM21PC224R1C3
NFM21PC474R1C3
NFM21PC105B1A3
NFM21PC105F1C3
Capacitance
(pF)
100000 +20%,-20%
220000 +20%,-20%
470000 +20%,-20%
1000000 +20%,-20%
1000000 +80%,-20%
Rated Voltage
(Vdc)
25
16
16
10
16
Rated Current
(A)
2
2
2
4
2
Insulation Resistance
(M ohm)
1000 min.
1000 min.
1000 min.
500 min.
500 min.
Operating Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-40 to 85
-40 to 85
142
142
Noise
Suppression Products/(EMIFIL
®
Noise
Suppression Products/(EMIFILr)
)
o
NFM3DP/NFM41P/NFM55P Series
0.7±0.2
1.1±0.3
1.1±0.3
3.2±0.2
(2)
1.25±0.2
(1)
(3)
in mm
(2)
NFM3D Series
Insertion Loss(Typ.)
0
Equivalent Circuit
4
Noise Suppression Products/(EMIFIL
®
)
143
143
20
Insertion Loss (dB)
40
Input
Output
60
GND
* no polarity.
80
100
0.1
0.5
1
5
10
Frequency (MHz)
50
100
500
1000
1.5±0.3
4.5±0.3
(4)
1.0±0.2
1.6±0.3
(1)
(3)
NFM41P Series
0.1min.
(2)
0.4±0.3
(in mm)
Insertion Loss(Typ.)
0
Equivalent Circuit
20
Insertion Loss (dB)
40
Input
Output
60
* no polarity.
GND
80
100
1
5
10
50
Frequency (MHz)
100
500
1000
Continued on the following page.
Noise Suppression
Products/(EMIFIL
®
Noise Suppression
Products/(EMIFILr)
)
Continued from the preceding page.
+0.3
1.7 -0.2
5.7±0.3
(2)
2.2±0.3
+0.5
4.2 -0.3
5.0±0.3
(1)
(3)
NFM55P Series
(2)
in mm
4
Noise Suppression Products/(EMIFIL
®
)
0
Insertion Loss(Typ.)
Equivalent Circuit
20
Insertion Loss (dB)
40
Input
Output
60
GND
80
* no polarity.
100
0.1
0.5
1
5
10
50
100
500
1000
Frequency (MHz)
Part Number
NFM3DPC223R1H2
NFM41PC204F1H3
NFM55PC155F1H4
Capacitance
(pF)
22000 +20%,-20%
200000 +80%,-20%
1500000 +80%,-20%
Rated Voltage
(Vdc)
50
50
50
Rated Current
(A)
2
2
6
Insulation Resistance
(M ohm)
1000 min.
1000 min.
100 min.
Operating Temperature Range
(°C)
-55 to 85
-55 to 85
-55 to 85
Chip EMIFILr Capacitor Type
Chip EMIFILr Arrays
o
NFA31C Series
(7)
(1)
(3)
0.05min.
(8)
(9) (10)
(2)
0.05min.
(4)
(5)
(6)
3.2±0.2
0.8±0.1
1.6±0.2
0.8±0.2
0.4±0.15
1.1±0.5
(in mm)
Continued on the following page.
144
144
