AC4MPNZVBBULK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AC4MPNZVBBULK

AC4MPNZVBBULK: DescriptionAudio/RCA Connector, 4 Pole(s), Solder Terminal; CategoryThe connector The connector; File Size492KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

AC4MPNZVBBULK Overview

Audio/RCA Connector, 4 Pole(s), Solder Terminal

AC4MPNZVBBULK Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
body width	1.449 inch
body length	0.874 inch
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD AND PANEL
Number of connectors	ONE
Number of poles	4
Number of ports	1
Options	GENERAL PURPOSE
Rated current (signal)	10 A
Rated voltage	133 V
Termination type	SOLDER

Preview

Download Datasheet

View All

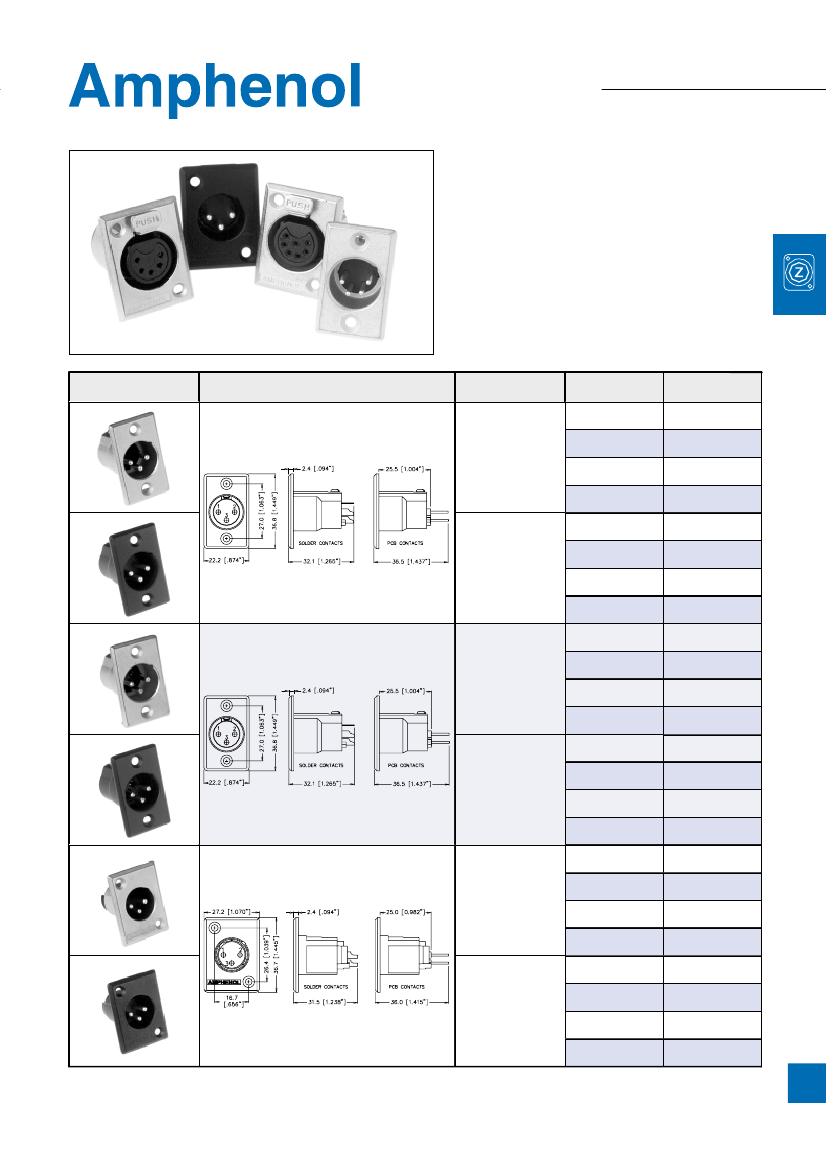

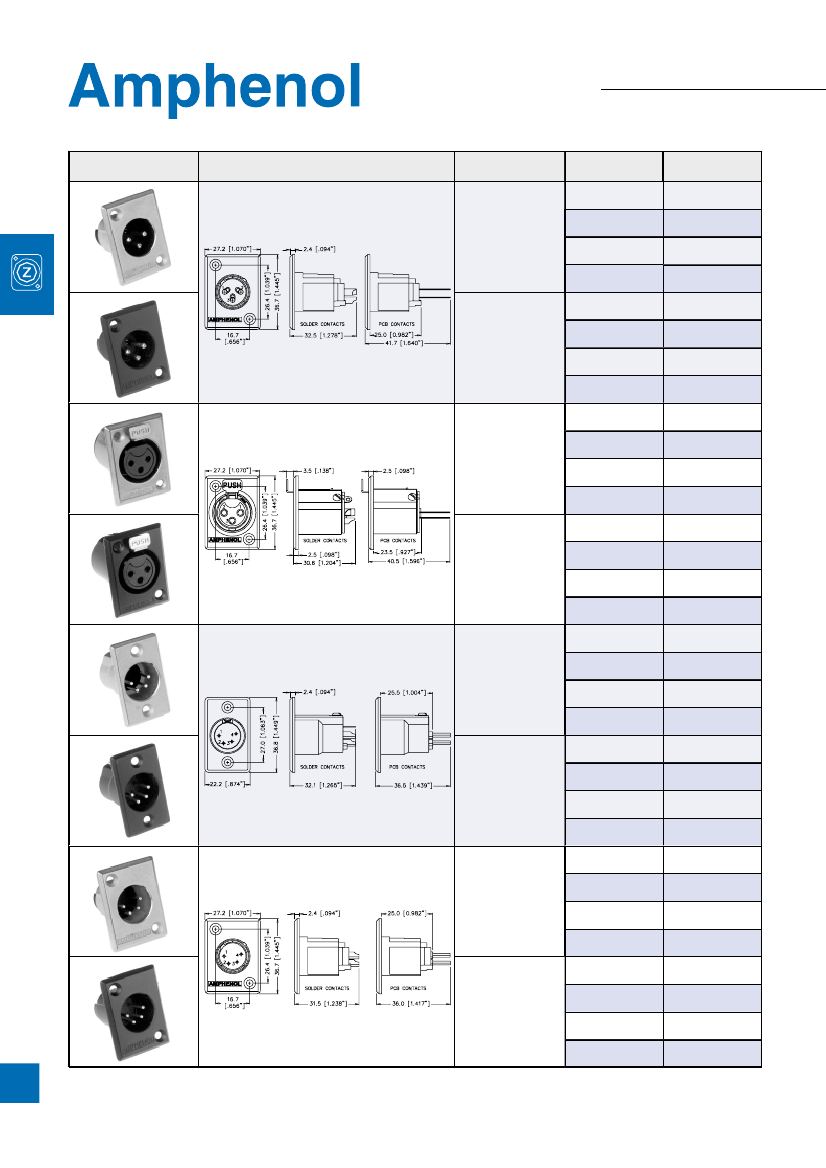

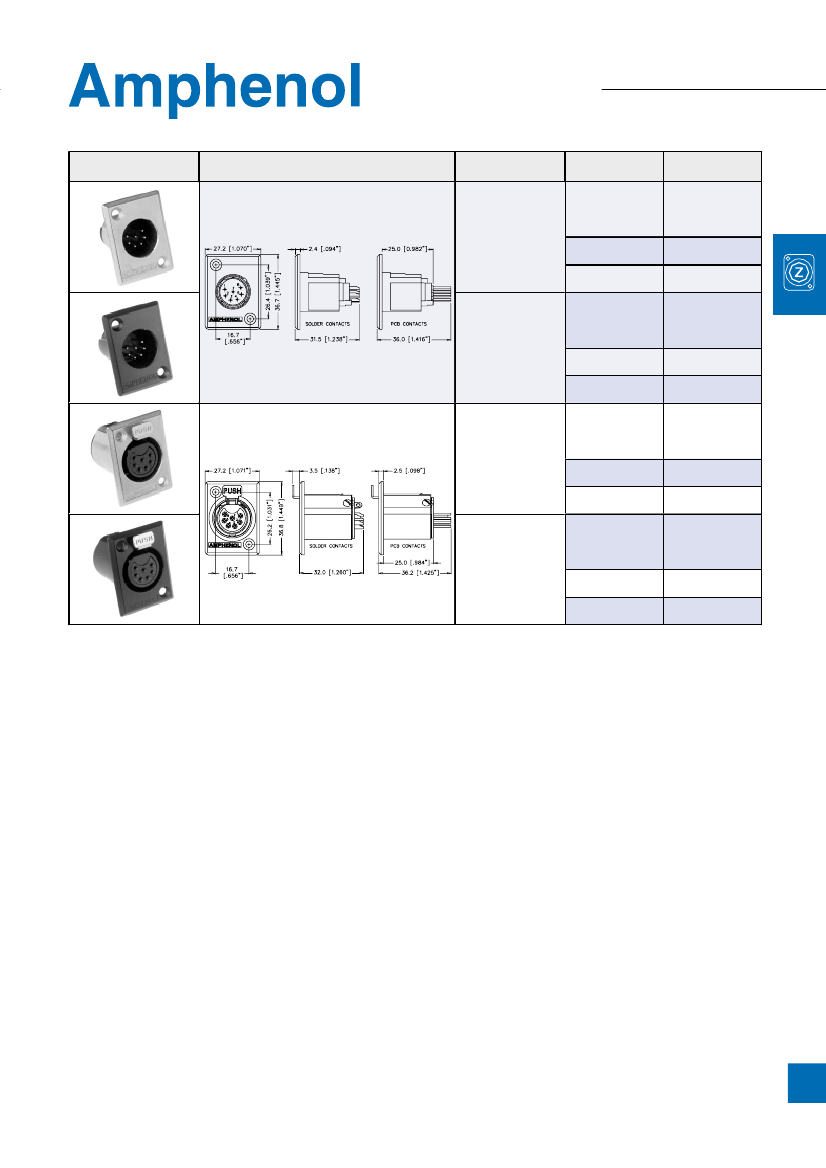

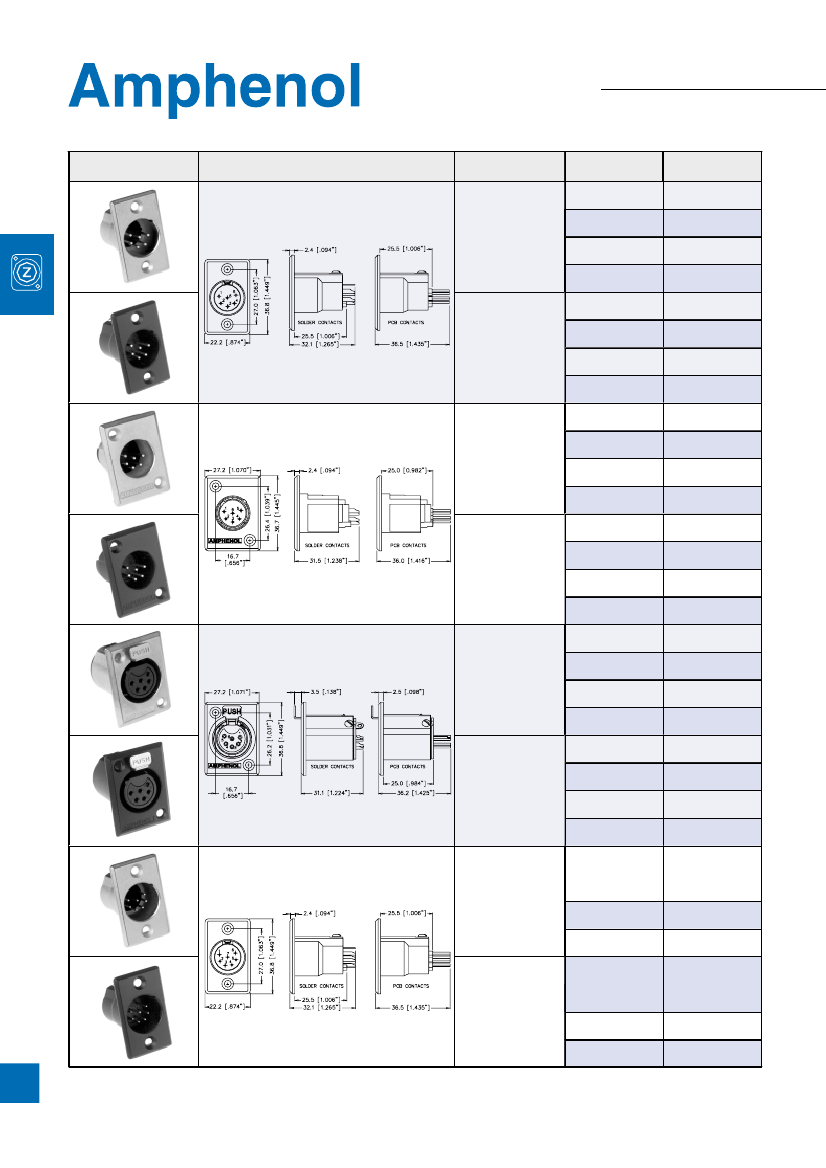

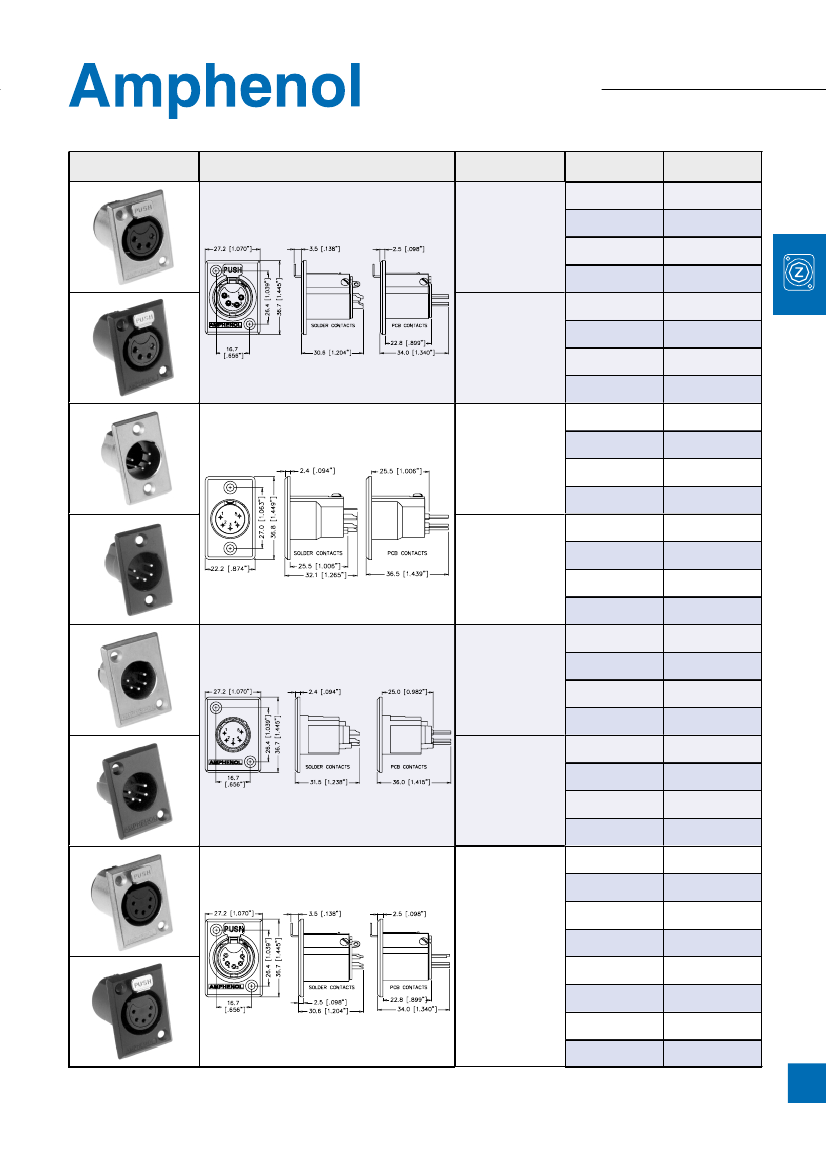

AC SERIES CHASSIS CONNECTORS

METAL P TYPE FLANGE

Features:

• Zinc Diecast shell.

• The P size housing is the original wide flange front mounting XLR

connector. PN is the original narrow, front mounting male connector.

• Solder Bucket connections.

• Vertical PCB mounting.

• Precision Machined or Stamped contacts (3 pin only).

• Leading first mate last break socket contact.

• Positive latch lock system.

Options:

Stamped contacts (3 contact only), Gold plated contacts,

Vertical PCB contacts, Black Finish, Non-Latching (Female only),

Bulk Pack.

Part Number Breakdown: Page 24

Specifications: Page 25

Panel Cutouts: Page 26

PRODUCT - FIGURE

DRAWING

Dimensions in mm (inches)

PCB Footprints: Page 26

DESCRIPTION

XLR 3 pole male,

Narrow flange,

Machined contacts,

Nickel Finish

VARIATIONS

Standard

PART NUMBER

AC3MMPNZ

Gold Plated Contacts AC3MMPNZ-AU

Vertical PCB

Bulk Pack

AC3MMPNZV

AC3MMPNZ BULK

AC3MMPNZB

XLR 3 pole male,

Narrow flange,

Machined contacts,

Black Finish

Standard

Gold Plated Contacts AC3MMPNZB-AU

Vertical PCB

Bulk Pack

AC3MMPNZVB

AC3MMPNZB BULK

AC3MPNZ

XLR 3 pole male,

Narrow flange,

Stamped contacts,

Nickel Finish

Standard

Gold Plated Contacts AC3MPNZ-AU

Vertical PCB

Bulk Pack

AC3MPNZV

AC3MPNZ BULK

AC3MPNZB

XLR 3 pole male,

Narrow flange,

Stamped contacts,

Black Finish

Standard

Gold Plated Contacts AC3MPNZB-AU

Vertical PCB

Bulk Pack

AC3MPNZVB

AC3MPNZB BULK

AC3MMP

XLR 3 pole male,

Wide flange,

Machined contacts,

Nickel Finish

Standard

Gold Plated Contacts AC3MMP-AU

Vertical PCB

Bulk Pack

AC3MMPV

AC3MMP BULK

AC3MMPB

XLR 3 pole male,

Wide flange,

Machined contacts,

Black Finish

Standard

Gold Plated Contacts AC3MMPB-AU

Vertical PCB

Bulk Pack

AC3MMPVB

AC3MMPB BULK

ENTERTAINMENT INTERCONNECT CATALOGUE

- Amphenol Australia Pty Ltd

Telephone 61 3 8796 8888 Fax 61 3 8796 8801

www.amphenol.com.au
