SM-5ES1N8A8S23: DescriptionCircular Connector, 6 Contact(s), Zinc Alloy, Female, Crimp Terminal; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

SM-5ES1N8A8S23 Overview

Circular Connector, 6 Contact(s), Zinc Alloy, Female, Crimp Terminal

SM-5ES1N8A8S23 Parametric

Parameter Name	Attribute value
Maker	PHOENIX CONTACT
Objectid	1990948071
Reach Compliance Code	unknown
compound_id	63100253
Other features	COMPATIBLE CONTACTS: SF-7PS2000, SF-7NS2000, SHIELDED
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NICKEL GOLD
Contact completed and terminated	NICKEL GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SM-5ES1N8A8S23
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ZINC ALLOY
Termination type	CRIMP
Total number of contacts	6

Preview

Download Datasheet

View All

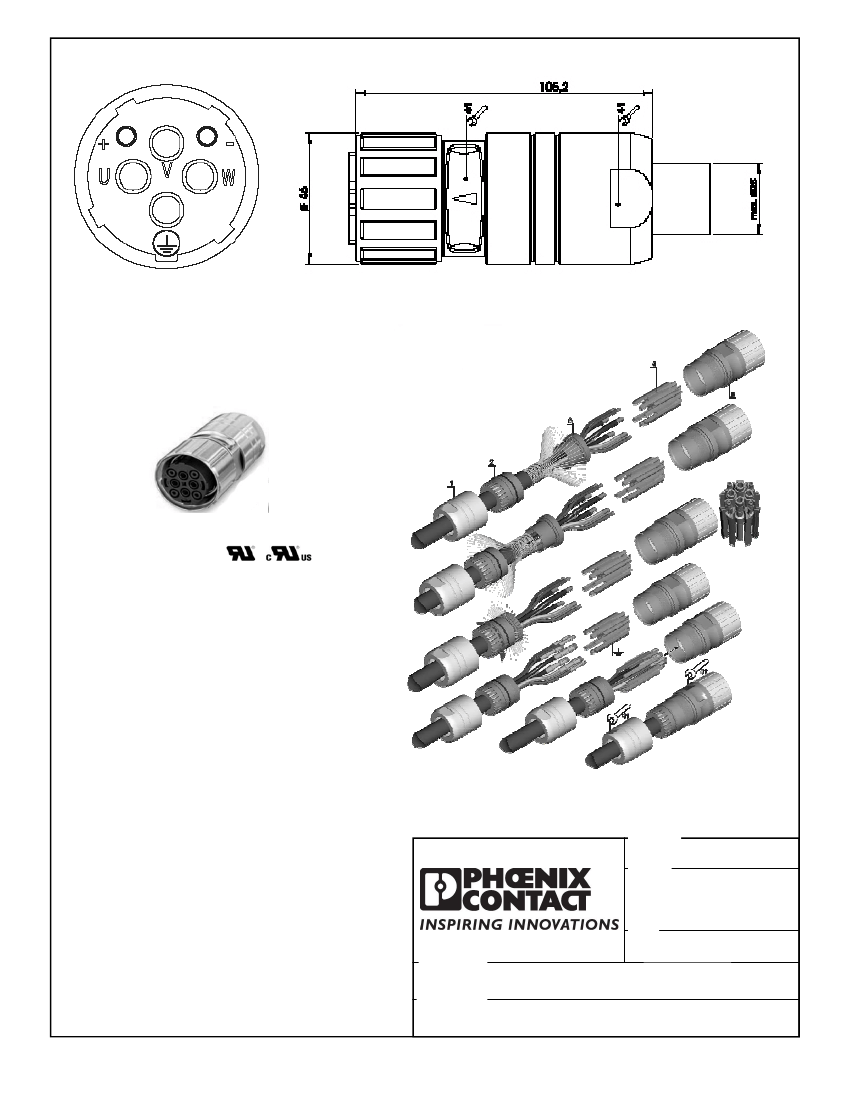

Shielded cable connector, long version

M 40, cable entry 14-20.5 mm

PE connecting earth pin to the shell

6 position female (2+3+PE)

Technical details:

Shell material:

Insert material:

V0

Contact material:

Contact plating:

zinc die-cast, nickel plated

Thermoplastic PA 66 UL94

CuZn

nickel + gold plated

The following contacts can be used, but not included

in this part number:

2 x 2.0 mm contacts

24-17AWG

18-16AWG

17-14AWG

12AWG

17-14AWG

14-12AWG

12-10AWG

10-8AWG

SF-7PS2000

SF-7NS2000

SF-7QS2000

SF-7MS2000

SM-36KS001

SM-36KS002

SM-36KS003

SM-36KS004

4 x 3.6 mm contacts

DRAWN BY

REVISED

Se

00-00-00

Protection:

O-rings/gaskets:

Temperature:

Rated current:

Rated voltage:

Insulation resistance:

IP 67 (mated)

Fluor rubber (FPM)

- 40°C (-40°F)

+ 125°C (+ 257°F)

9/70 Amp

250/630 Volt

≥

10

12

Ω

DATE

DESCRIPTION

10-06-08

Cable connector M 40

PART NUMBER

SM-5ES1N8A8S23
