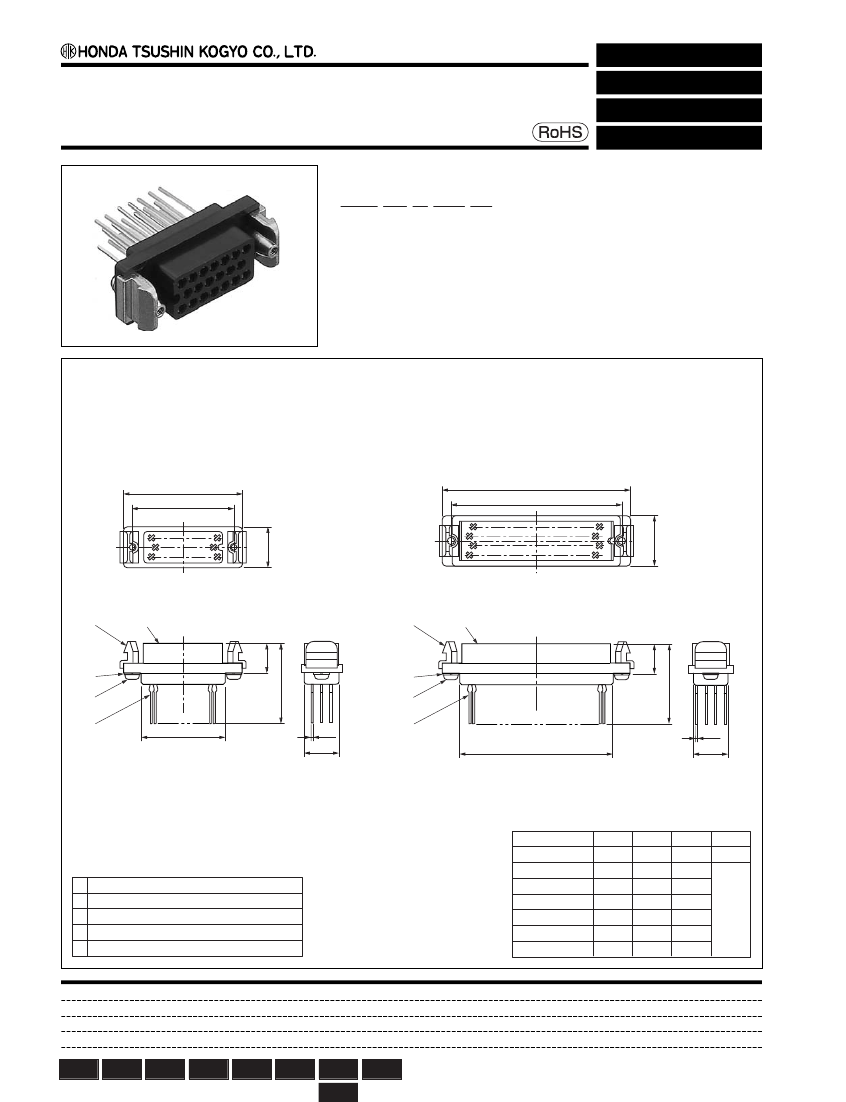

Rectangular connector
Wire wrapping type female connector with locking block
for panel
MR-( )RFW( )+
●
Configuration of product Part No.
For panel
Wire wrapping
With locking block
MR- ( ) R FW ( )+
➀
➁
➂
➃
➄
➀
Series name
➁
No. of contacts: 8, 16, 20, 25, 34, 50 or 60
➂
With locking block
➃
Type of contact: Wire wrapping, female
➄
Contact plating
None: Silver plate (standard)
G
: Gold plate
A
B
A
B
£
13
¡
D
25 REF.
£
¡
D
25 REF.
¢
∞
™
C
¢
∞
œ0.6
11
™
C
16
œ0.6
14
8, 16, 20, 25, 34 or 50-contact
connector
60-contact connector
Ω
Dimensions
Part No.
MR-8RFW( )+
A
22.4
30.2
32.8
38.0
45.8
61.4
59.6
B
17.4
25.2
27.8
33.0
40.8
56.4
52.6
C
11.9
19.7
22.3
27.5
35.3
50.9
46.3
9.0
D
9.4
●
Components
➀
Insulator
➁
Contact
➂
Locking block (Appended)
➃
Spring washers (Appended)
➄
Small-sized Phillips head screws (Appended)
MR-16RFW( )+
MR-20RFW( )+
MR-25RFW( )+
MR-34RFW( )+
MR-50RFW( )+
MR-60R2FW( )+
Mating case:
MR-( )L+, MR-( )LW+
Mating connectors with case:
MR-( )LM( )+, etc.
Through
hole
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
