MD3FLDL-TTL-85F datasheet, PDF

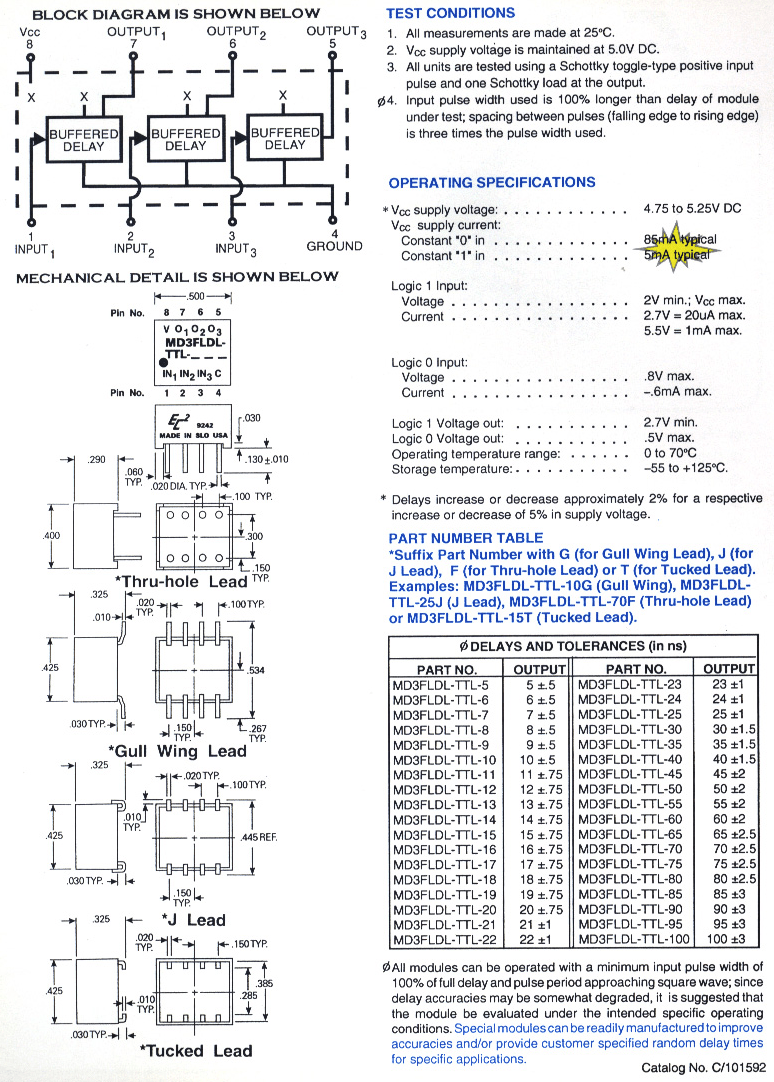

MD3FLDL-TTL-85F: DescriptionActive Delay Line, 3-Func, 1-Tap, True Output, TTL, MODULE, DIP-8; Categorylogic logic; File Size504KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

MD3FLDL-TTL-85F Overview

Active Delay Line, 3-Func, 1-Tap, True Output, TTL, MODULE, DIP-8

Parameter Name	Attribute value
Maker	Engineered Components Co.
Objectid	1400788351
Parts packaging code	DIP
package instruction	QIP,
Contacts	8
Reach Compliance Code	unknown
compound_id	5202856
Other features	TYP. ICC = 85MA; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-XDIP-P8
length	12.7 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	3
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.366 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	85 ns
width	7.62 mm
