NOTES:
1. MATERIALS AND FINISHES:
N STR CRIMP PLUG - BRASS, WHITE BRONZE PLATING
CABLE -
LMR 400
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 175101-10-XX.XX, AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
ADDED 175101-10-M1.50 TO TABLE
SEE SHEET 1
DESCRIPTION
D
E
22-Jun-10
20-Aug-18
1/5/16
DATE
ECO
50917
08961
--
APPR
CL
NR
EH
SCALE
LENGTH 'L' (SEE TABLE)
0.400
HEAT SHRINK TUBE
TYP(2)
175101-10-06.00
175101-10-12.00
-
-
PART NUMBER
(IMPERIAL)
PART NUMBER
(METRIC)
-
-
-
LENGTH TABLE
LENGTH 'L'
INCHES [METERS]
6.00 [0.152]
9.84 [0.250]
INTERFACE PER
MIL-STD-348
SERIES:N PLUG
TYP(2)
175101-10-M0.25
175101-10-18.00
175101-10-24.00
175101-10-36.00
175101-10-48.00
175101-10-72.00
-
-
-
12.00 [0.305]
175101-10-M0.50
175101-10-M0.75
175101-10-M1.00
175101-10-M1.50
175101-10-M2.00
-
-
175101-10-M4.00
-
-
-
-
-
-
-
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
59.06 [1.500]
72.00 [1.829]
78.74 [2.000]
96.00 [2.438]
175101-10-96.00
175101-10-108
175101-10-120
-
-
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
108.00 [2.743]
120.00 [3.048]
157.48 [4.000]
240.00 [6.096]
360.00 [9.144]
DESIGN REQUIREMENTS:
X
FREQUENCY: DC TO 5.8 GHz
VSWR: _____ MAX
INS. LOSS _____ dB MAX
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
SEE NOTES
REFERENCE
EAR 7034
175101-10-240
-
175101-10-360
175101-10-480
175101-10-M10
-
393.70 [10.000]
480.00 [12.192]
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
DRAWN
RAJAGOPAL N
ENGINEER
RAJAGOPAL N
APPROVED
K. CAPOZZI
DATE
07-Dec-15
DATE
07-Dec-15
DATE
12/23/15

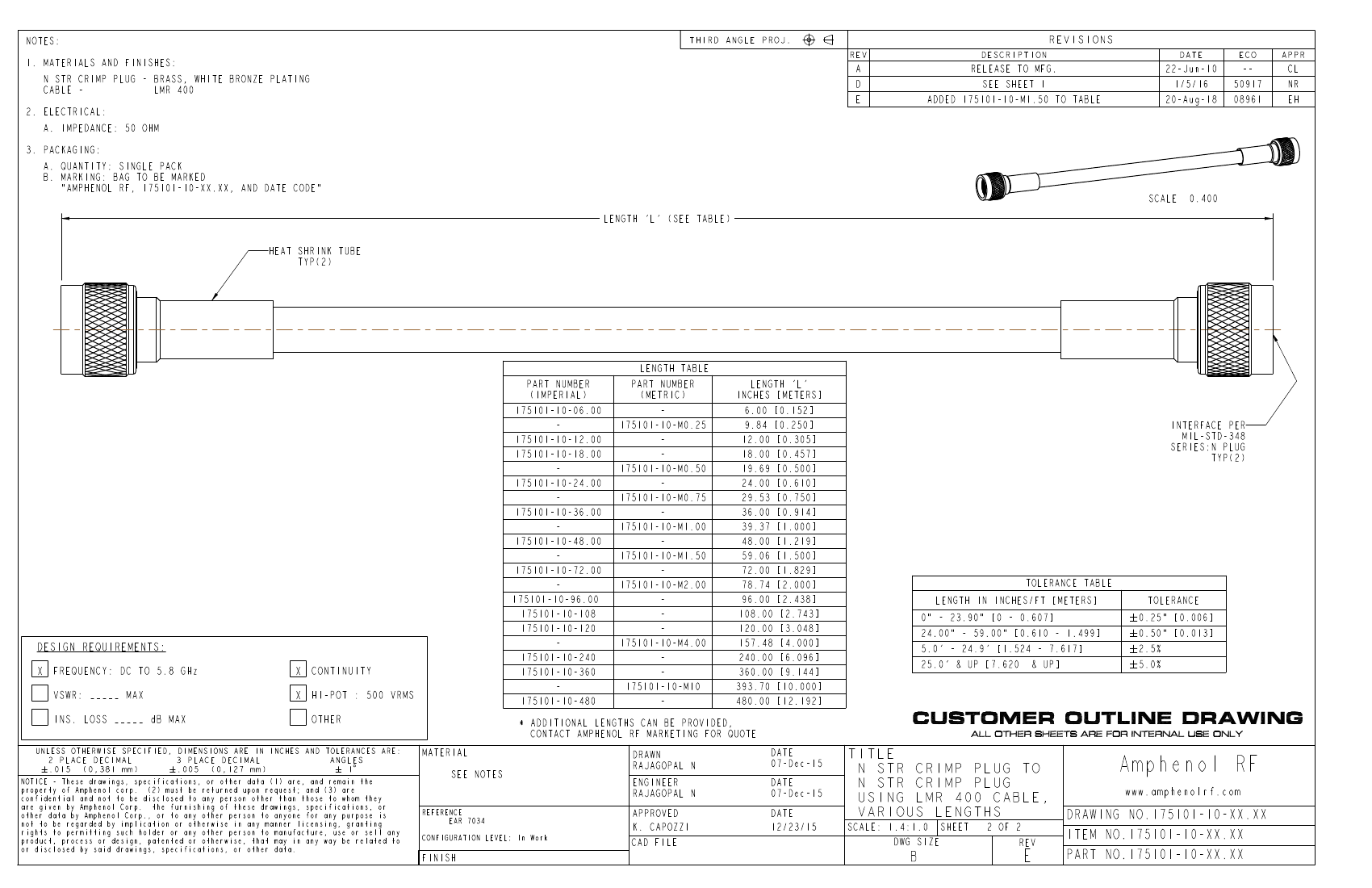

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
TITLE
N STR CRIMP PLUG TO
N STR CRIMP PLUG
USING LMR 400 CABLE,
VARIOUS LENGTHS
SCALE: 1.4:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO.175101-10-XX.XX
ITEM NO.175101-10-XX.XX
PART NO.175101-10-XX.XX
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
B
REV
E
