AM2085JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> AM2085JC

AM2085JC: DescriptionPCM Transceiver, Basic, 1-Func, CMOS, PQCC44, PLASTIC, LCC-44; CategoryWireless rf/communication Telecom circuit; File Size2MB，77 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM2085JC Overview

PCM Transceiver, Basic, 1-Func, CMOS, PQCC44, PLASTIC, LCC-44

AM2085JC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknow
data rate	144 Mbps
ISDN access rate	BASIC
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.7 mm
Number of functions	1
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output high voltage	2.4 V
Maximum output low current	0.002 A
Maximum output low voltage	0.45 V
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
reference point	S/T
Maximum seat height	4.68 mm
standard	CCITT I.430
Maximum slew rate	13 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	PCM TRANSCEIVER
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.7 mm
Base Number Matches	1

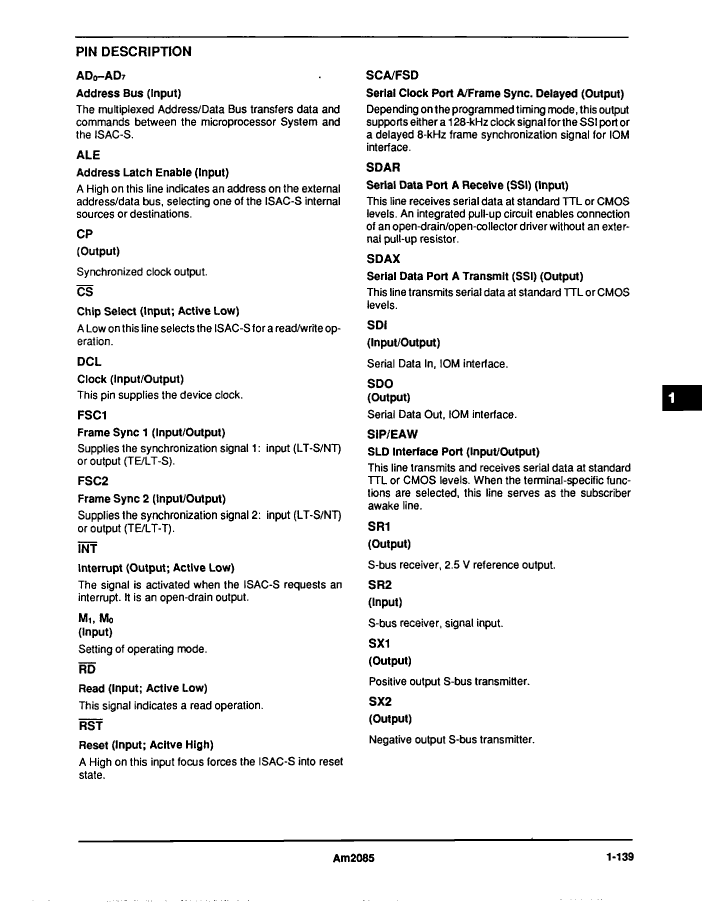

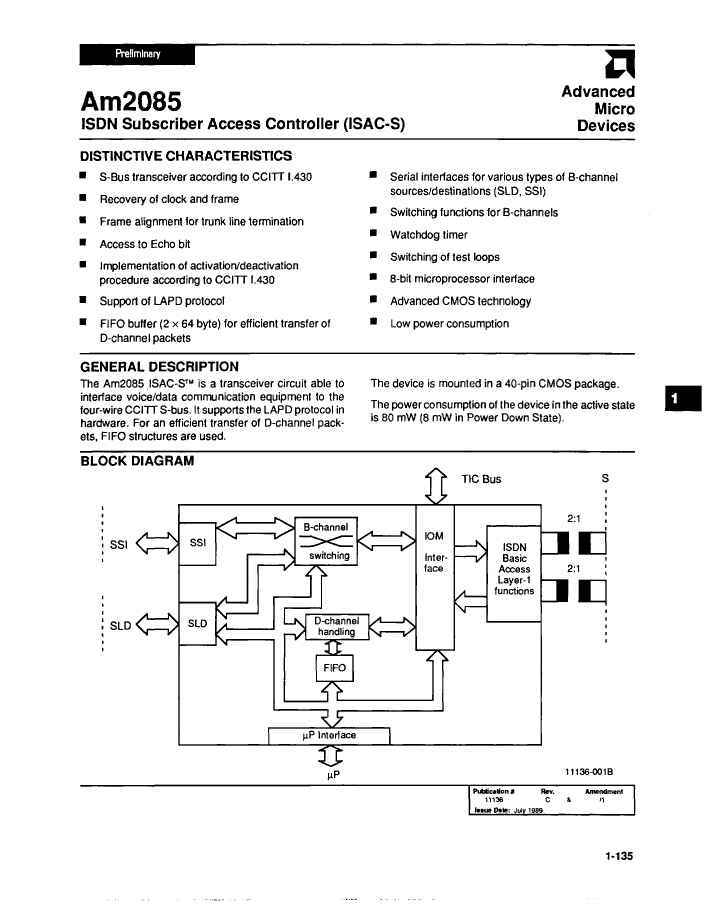

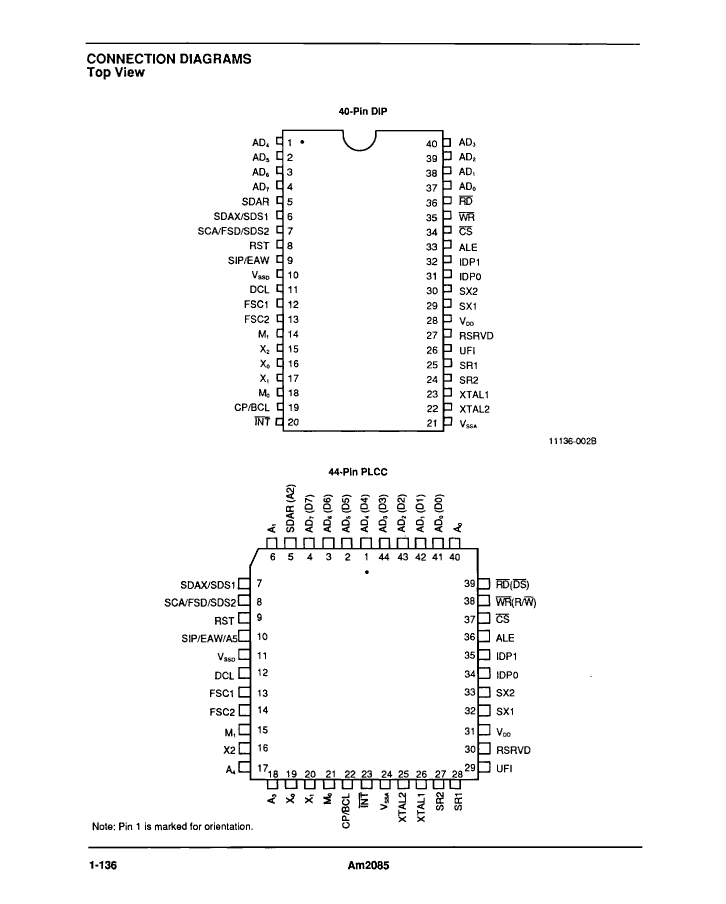

Preview

Download Datasheet

View All

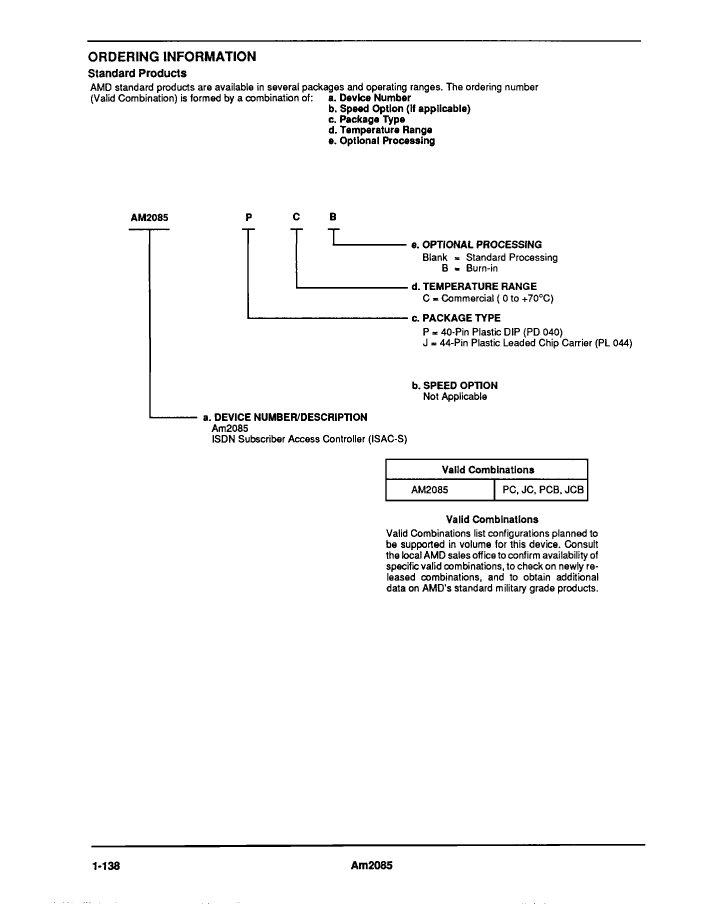

AM2085JC Related Products

	AM2085JC	AM2085PCB	AM2085JCB	AM2085PC
Description	PCM Transceiver, Basic, 1-Func, CMOS, PQCC44, PLASTIC, LCC-44	PCM Transceiver, Basic, 1-Func, CMOS, PDIP40, PLASTIC, DIP-40	PCM Transceiver, Basic, 1-Func, CMOS, PQCC44, PLASTIC, LCC-44	PCM Transceiver, Basic, 1-Func, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	DIP	LCC	DIP
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	44	40	44	40
Reach Compliance Code	unknow	unknow	unknow	unknow
data rate	144 Mbps	144 Mbps	144 Mbps	144 Mbps
ISDN access rate	BASIC	BASIC	BASIC	BASIC
JESD-30 code	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0
length	16.7 mm	50.9 mm	16.7 mm	50.9 mm
Number of functions	1	1	1	1
Number of terminals	44	40	44	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum output high voltage	2.4 V	2.4 V	2.4 V	2.4 V
Maximum output low current	0.002 A	0.002 A	0.002 A	0.002 A
Maximum output low voltage	0.45 V	0.45 V	0.45 V	0.45 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
reference point	S/T	S/T	S/T	S/T
Maximum seat height	4.68 mm	5.1 mm	4.68 mm	5.1 mm
standard	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430
Maximum slew rate	13 mA	13 mA	13 mA	13 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	PCM TRANSCEIVER	PCM TRANSCEIVER	PCM TRANSCEIVER	PCM TRANSCEIVER
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.7 mm	15.24 mm	16.7 mm	15.24 mm
Base Number Matches	1	1	1	1
