BR6441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR6441

BR6441: Description20 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR6441 Overview

20 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR6441 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Objectid	2002591038
Reach Compliance Code	unknown
compound_id	11662351
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

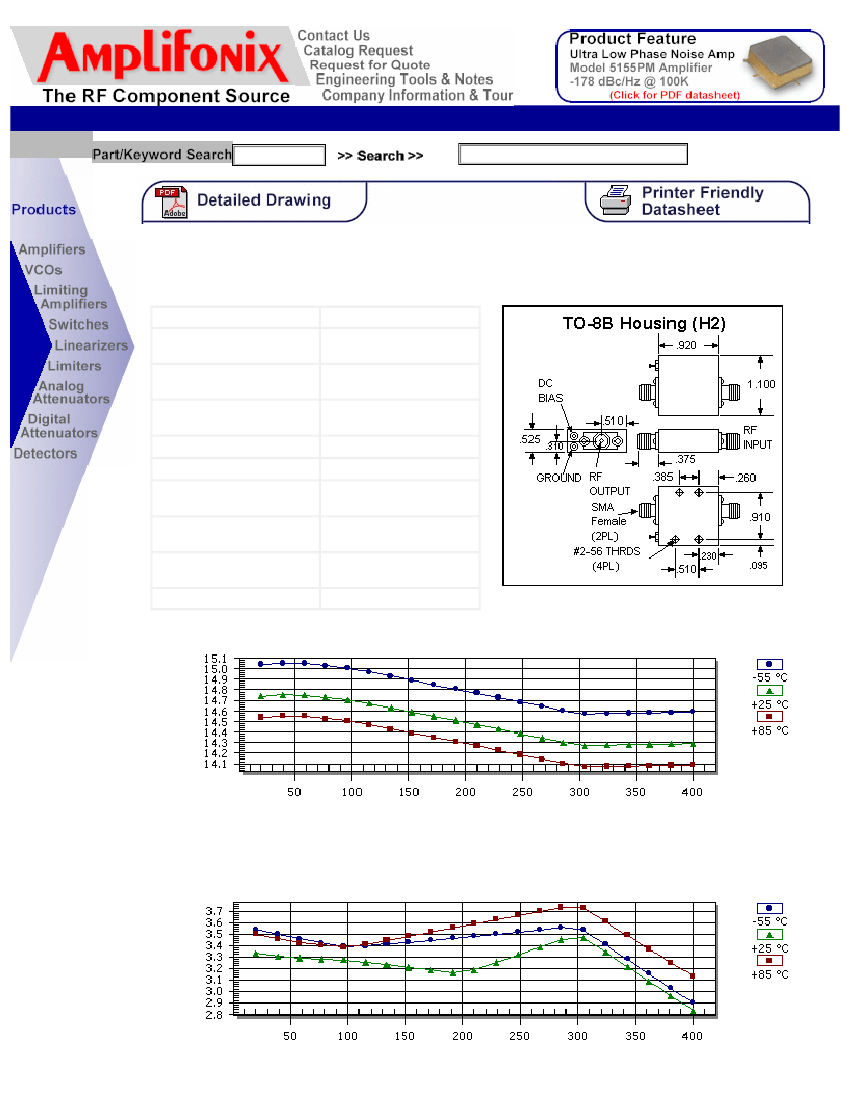

Preview

Download Datasheet

View All

Cross Reference Guide

BR6441 / SBR6441*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

20.0 - 400.0 MHz

14.5 dB Typical

13.0 dB Min

3.5 dB Typical

5.0 dB Max

16.0 dBm Typical

15.0 dBm Min

31.0 dBm Typical

48.0 dBm Typical

1.5/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-19.0 dB Typical

-18.0 dB Min

15.0 Volts

32.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure
