CD3PH-2-36-(A/B/E)-SG15 datasheet, PDF

Datasheet> All Categories > The connector> The connector> CD3PH-2-36-(A/B/E)-SG15

CD3PH-2-36-(A/B/E)-SG15: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CD3PH-2-36-(A/B/E)-SG15 Overview

Headers and Edge Type Connector,

CD3PH-2-36-(A/B/E)-SG15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Objectid	145125123532
Reach Compliance Code	unknown
compound_id	325539470

Preview

Download Datasheet

View All

G F

2.0

E=Overall pin length

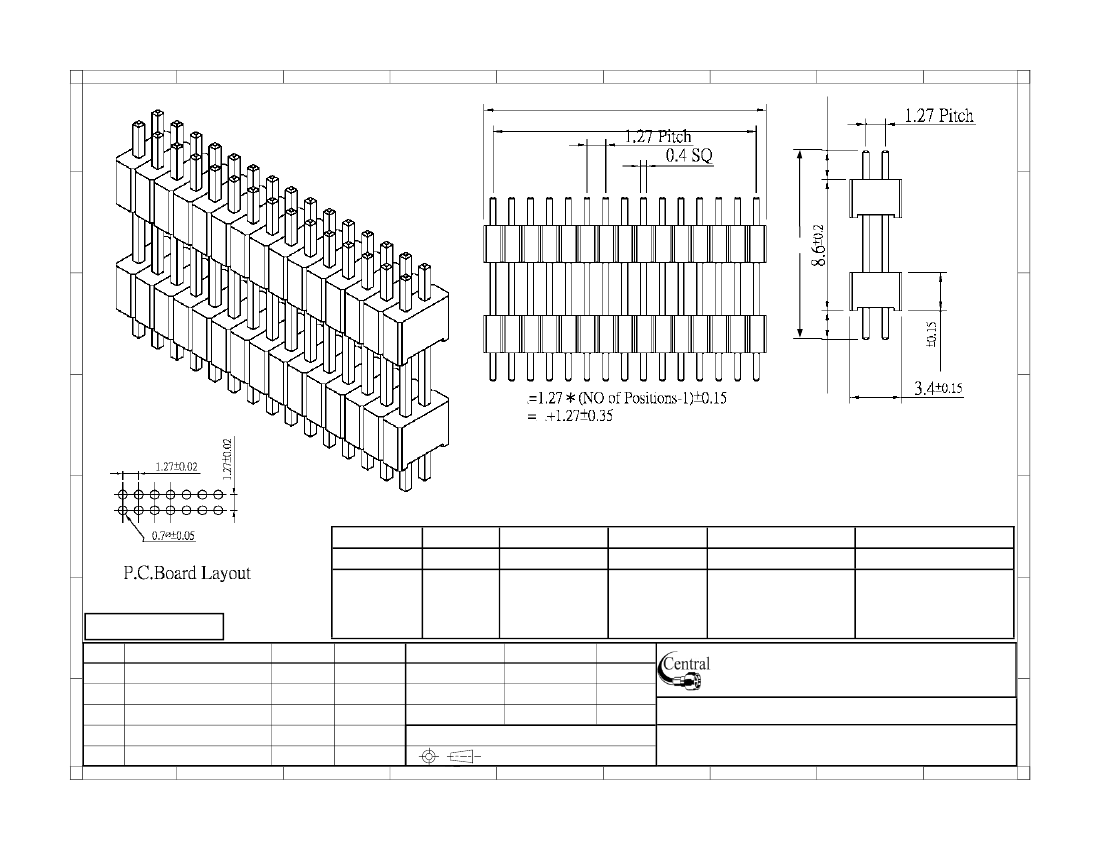

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

Brass

Gold flash over nickel

Nylon 6T

Plating

Series

CD3PH

No. of Rows

Type

No. of Pins

Pin Length

(A/B/E)

RoHS compliant

Rev.

Description

Date

Pin header, DIP 2=Dual rows

Blank=Straight

1-40 (single row) Customer specified pin SGXX=Duplex

TN=Tin

type, .40mm

1=Single row RA=Right angle

2-80 (double row) length. See diagram for A, GDXX=Gold

B and E dimensions

square pins

XX=Flash if blank,

SM=Surface mount

03, 05, 10, 15, 30µ”

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

Central Components Manufacturing

08/10/99

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

08/10/99

08/10/99 Part No.:

CD3PH-2-XX-XX-(A/B/E)-XX

Description: Pin header, 1.27x1.27, dual insulator, double row

Angles ± 3’

0.00 ± 0.20

UNIT: mm
