NH1ZMG46D5V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> NH1ZMG46D5V

Preview

NH1ZMG46D5V: DescriptionSingle Color LED, Green, Diffused, T-3/4, 1.8mm,; CategoryLED optoelectronic/LED photoelectric; File Size183KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

NH1ZMG46D5V Overview

Single Color LED, Green, Diffused, T-3/4, 1.8mm,

NH1ZMG46D5V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.0175 A
Lens type	DIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.35 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	1.8 mm
surface mount	NO
T code	T-3/4
Terminal pitch	2.54 mm
perspective	40 deg

Preview

Download Datasheet

View All

Part Number: NH1ZMG46D5V

www.SunLED.com

SUBMINIATURE SOLID STATE LAMP

Features

●

Housing material: Type 66 Nylon

●

Black casing provides superior contrast

●

Housing UL rating: 94V-0

●

Reliable & robust

●

5V internal resistor

●

RoHS Compliant

Package Schematics

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

(T

A

=25°C)

Reverse Voltage

Forward Voltage

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

V

R

V

F

P

D

T

A

Tstg

MG

(GaP)

5

6

85

-40 ~ +70

-40 ~ +85

260°C For 3 Seconds

260°C For 5 Seconds

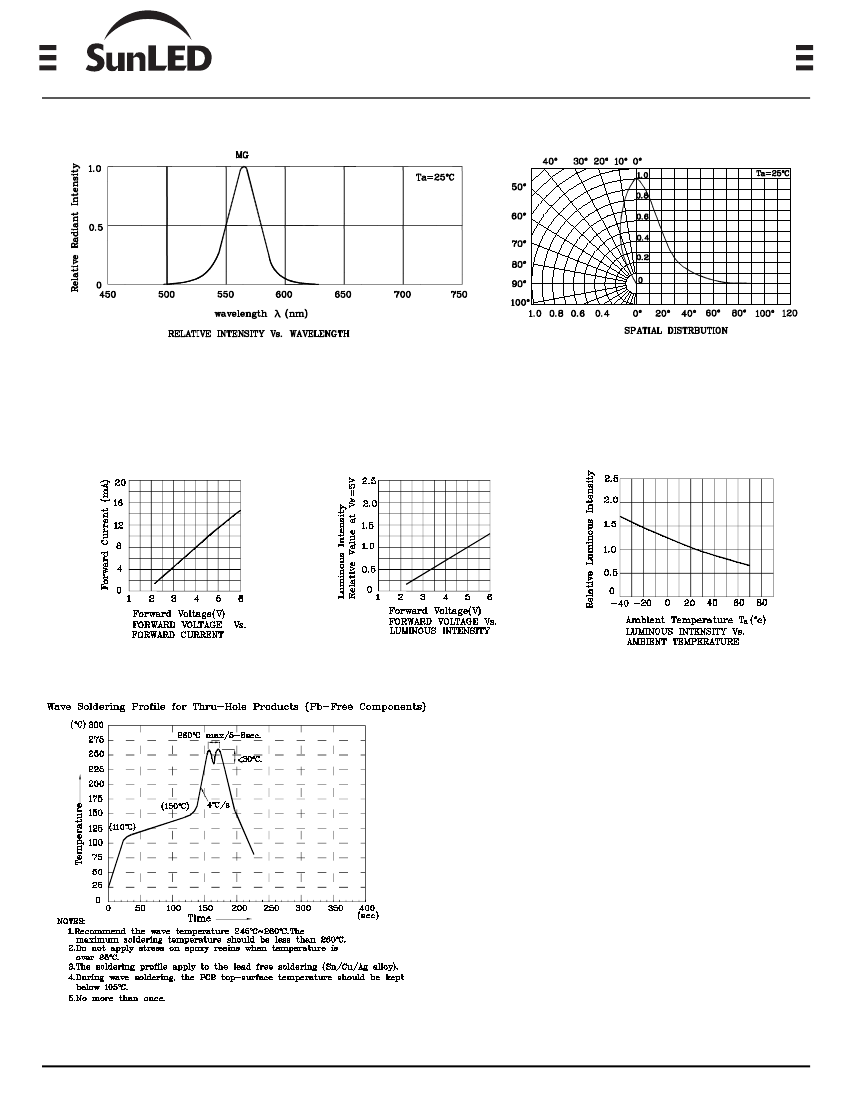

Operating Characteristics

(T

A

=25°C)

Forward Current (Typ.)

(V

F

=5V)

Forward Current (Max.)

(V

F

=5V)

Reverse Current (Max.)

(V

R

=5V)

Wavelength of Peak

Emission (Typ.)

(V

F

=5V)

Wavelength of Dominant

Emission (Typ.)

(V

F

=5V)

Spectral Line Full Width

At Half-Maximum (Typ.)

(V

F

=5V)

I

F

I

F

I

R

MG

(GaP)

11.5

17.5

10

Unit

V

mW

°C

Unit

mA

uA

λP

565

nm

λD

568

nm

△λ

30

nm

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(V

F

=5V)

mcd

min.

typ.

9

SDSA1363

Wavelength

nm

λP

Viewing

Angle

2θ 1/2

NH1ZMG46D5V

Apr 14,2011

Green

GaP

Green Diffused

4

565

V7

40°

Layout: Maggie L.

P. 1/3
