8X60/BXA datasheet, PDF - EEWORLD Datasheet

8X60/BXA: DescriptionMemory Controller, TTL, CDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size760KB，10 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

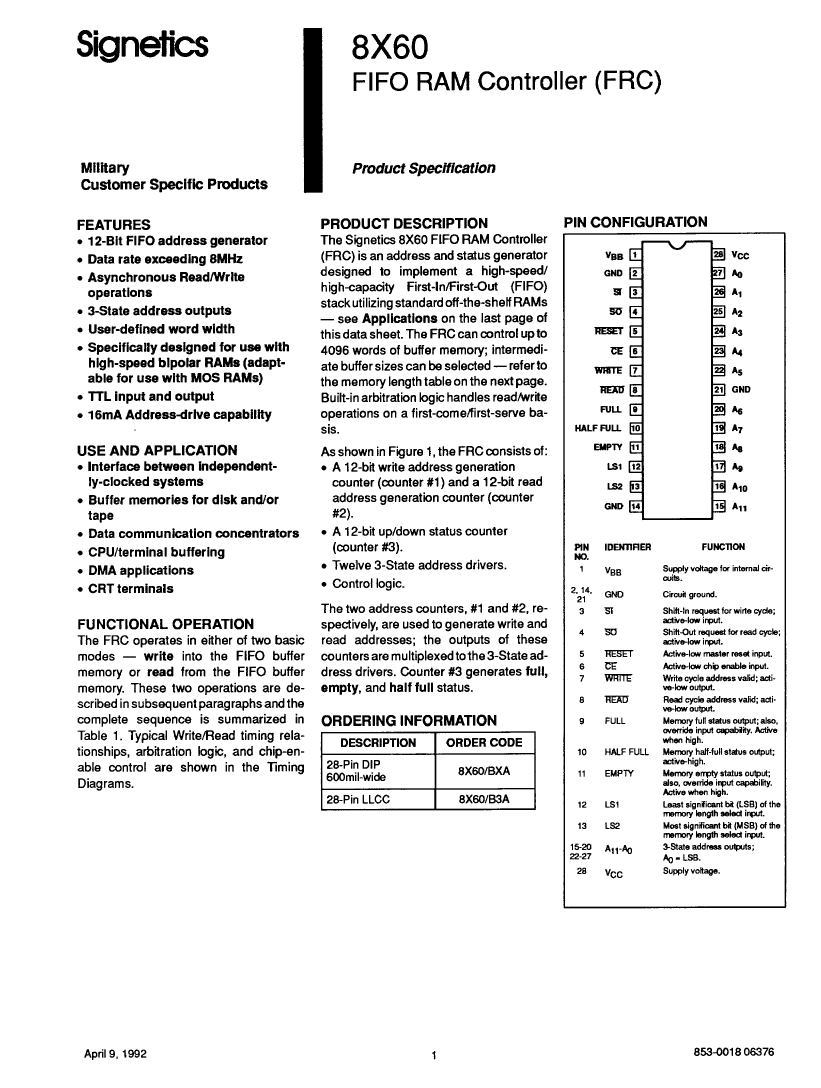

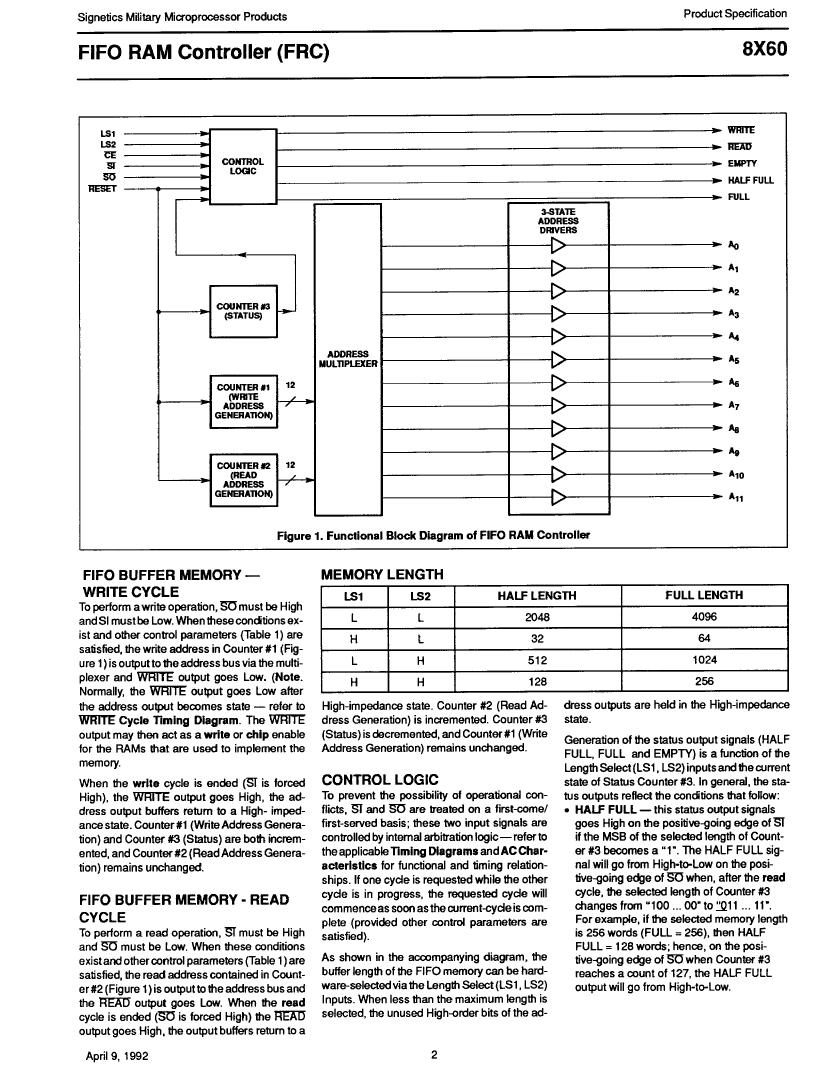

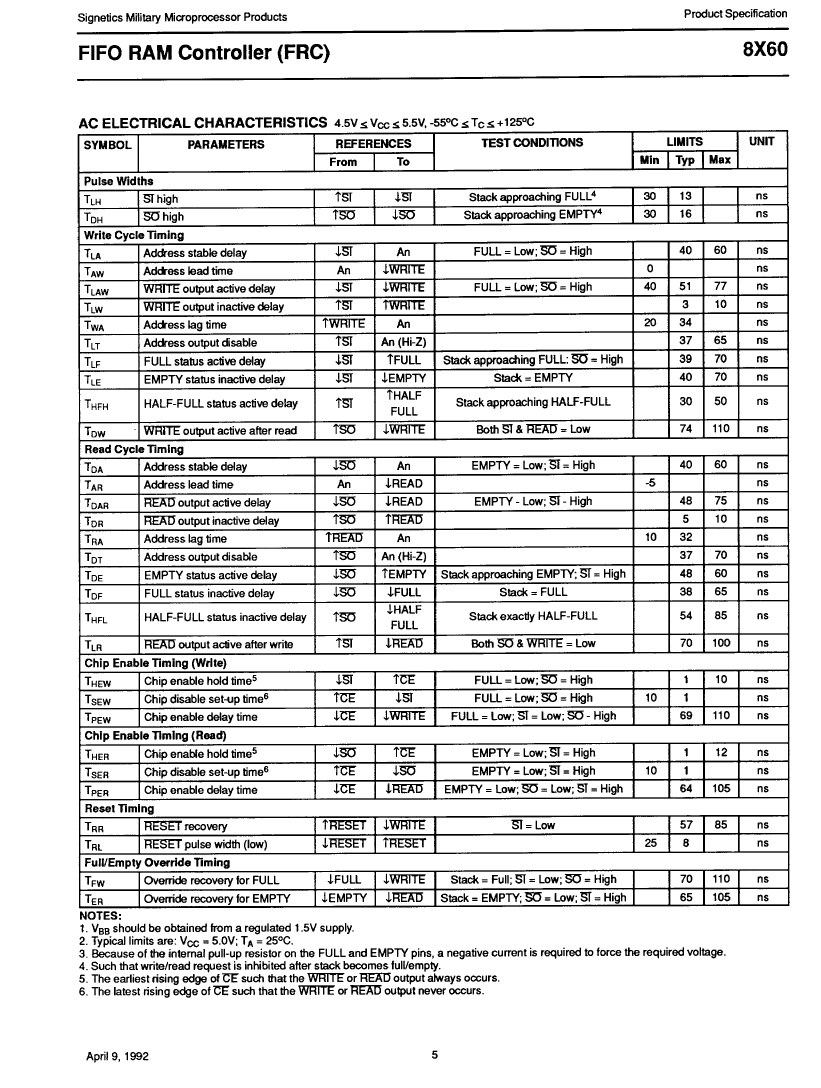

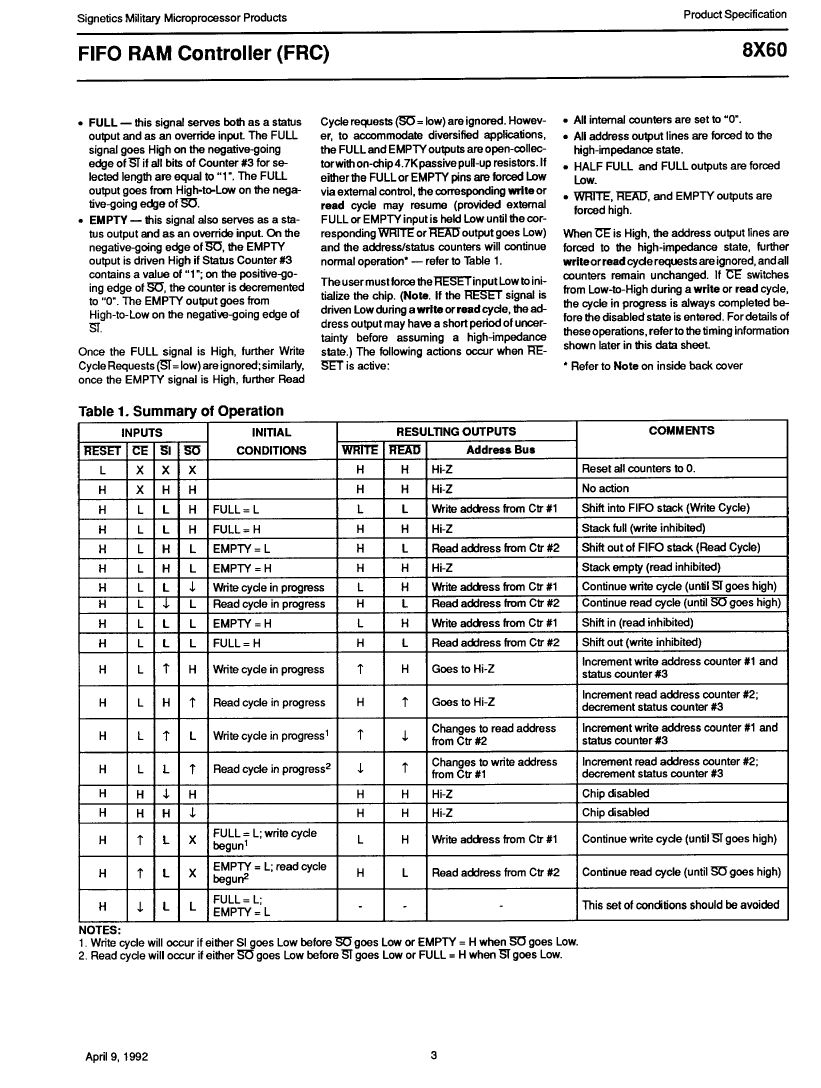

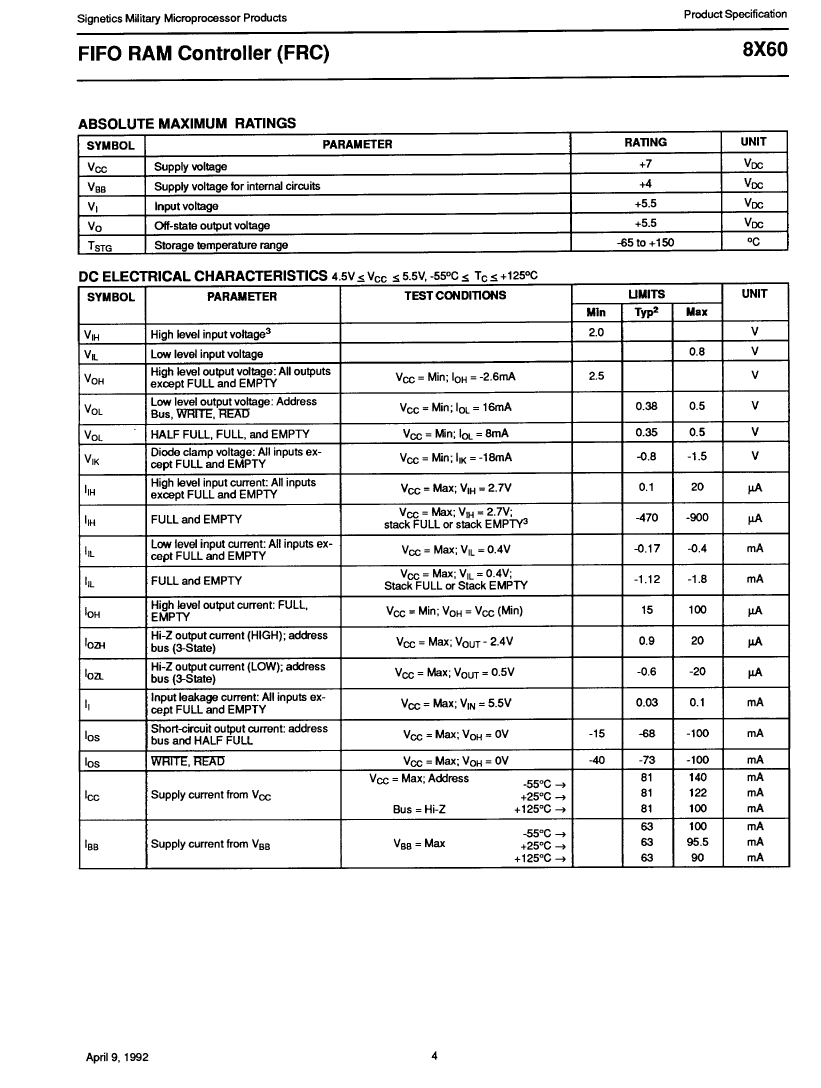

8X60/BXA Overview

Memory Controller, TTL, CDIP28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	140 mA
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	8X60/BXA	8X60/B3A	N8X60N
Description	Memory Controller, TTL, CDIP28	Memory Controller, TTL, CQCC28	Memory Controller, TTL, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP28,.6	QCCN, LCC28,.45SQ	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDIP-T28	S-XQCC-N28	R-PDIP-T28
JESD-609 code	e0	e0	e0
Number of terminals	28	28	28
Maximum operating temperature	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	DIP
Encapsulate equivalent code	DIP28,.6	LCC28,.45SQ	DIP28,.6
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	140 mA	140 mA	140 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
