BAR28-AR1 datasheet, PDF - EEWORLD Datasheet

BAR28-AR1: DescriptionSILICON, VHF-UHF BAND, MIXER DIODE, DO-35; CategoryDiscrete semiconductor diode; File Size55KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

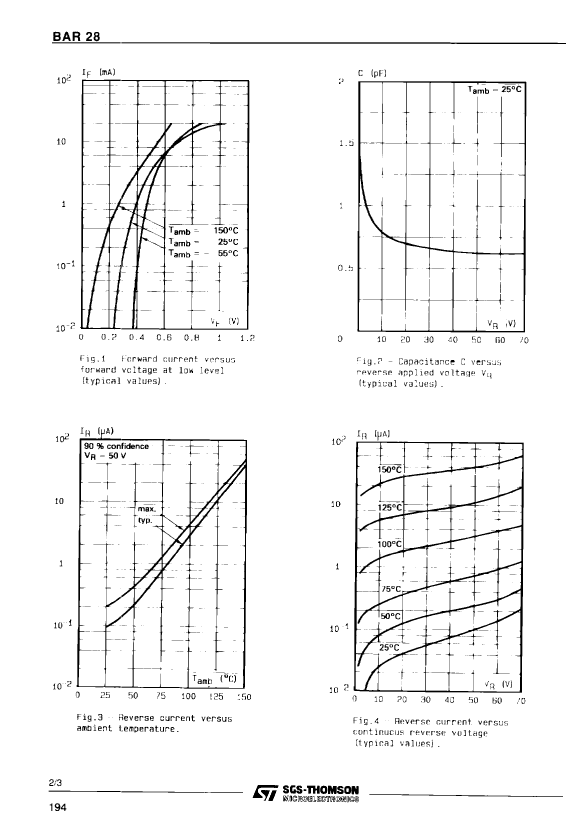

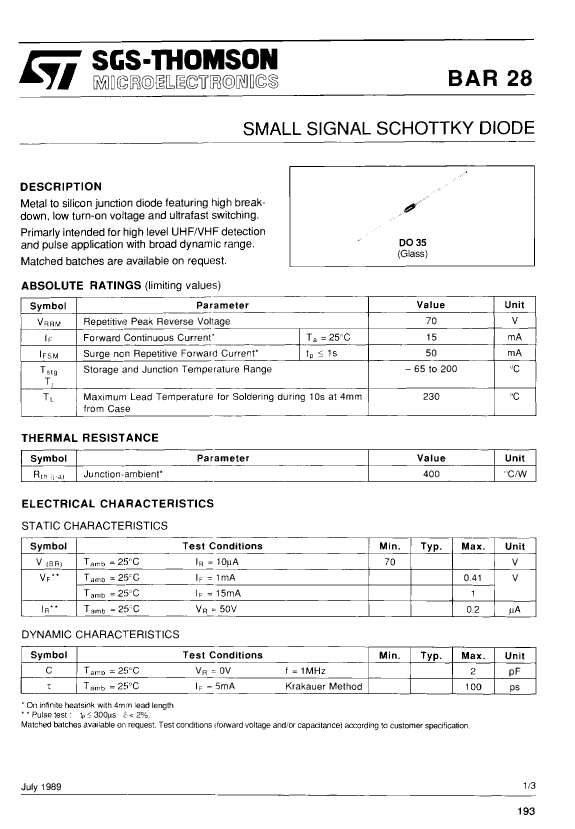

BAR28-AR1 Overview

SILICON, VHF-UHF BAND, MIXER DIODE, DO-35

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATCHED BATCH AVAILABLE
Shell connection	ISOLATED
Configuration	SINGLE
Maximum diode capacitance	2 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

	BAR28-AR1	BAR28-AZ2	BAR28-AZ1	BAR28-B2
Description	SILICON, VHF-UHF BAND, MIXER DIODE, DO-35	SILICON, VHF-UHF BAND, MIXER DIODE, DO-35	SILICON, VHF-UHF BAND, MIXER DIODE, DO-35	SILICON, VHF-UHF BAND, MIXER DIODE, DO-35
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE	MATCHED BATCH AVAILABLE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	2 pF	2 pF	2 pF	2 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics
