B901-30 datasheet, PDF - EEWORLD Datasheet

B901-30: DescriptionBridge Rectifier Diode, 1 Phase, 8A, 300V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size25KB，1 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

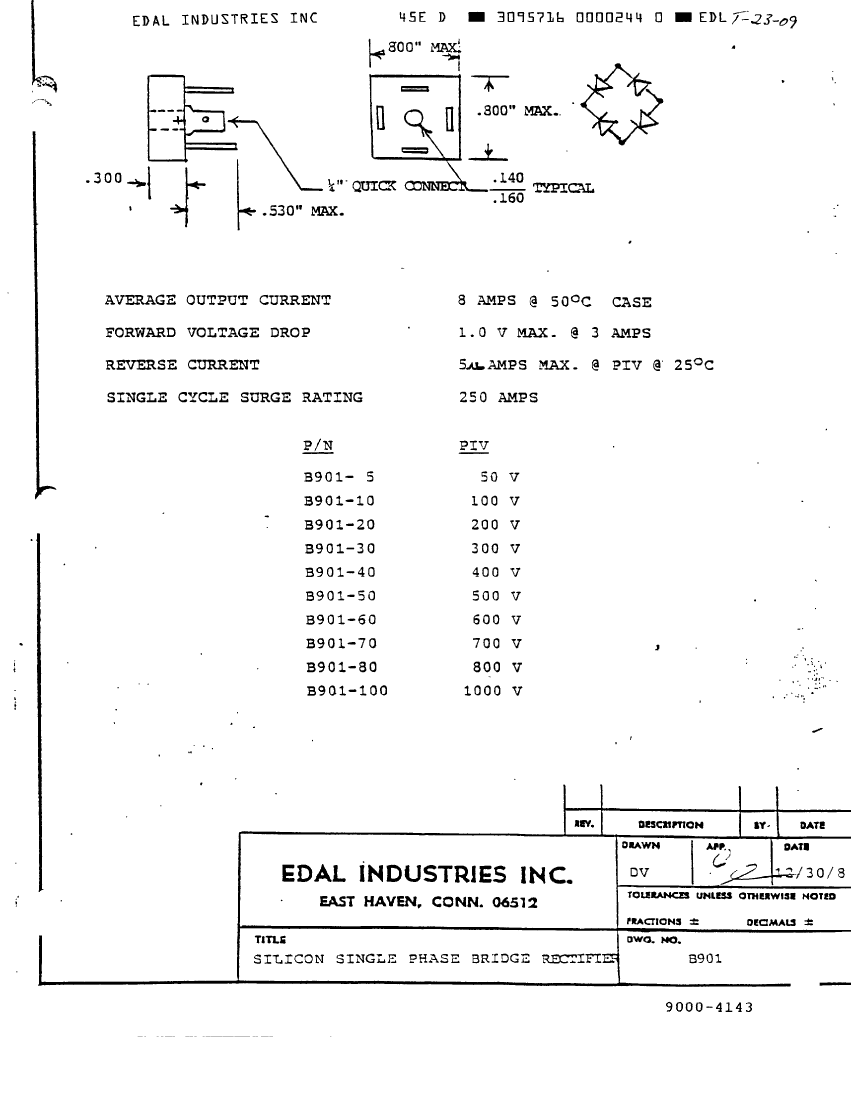

B901-30 Overview

Bridge Rectifier Diode, 1 Phase, 8A, 300V V(RRM), Silicon

Parameter Name	Attribute value
Maker	EDAL
package instruction	S-PUFM-D4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	S-PUFM-D4
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

This Material Copyrighted By Its Respective Manufacturer

	B901-30	B901-10	B901-100	B901-50	B901-70
Description	Bridge Rectifier Diode, 1 Phase, 8A, 300V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 100V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 500V V(RRM), Silicon	Bridge Rectifier Diode, 1 Phase, 8A, 700V V(RRM), Silicon
package instruction	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JESD-30 code	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum output current	8 A	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	100 V	1000 V	500 V	700 V
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	EDAL	-	-	EDAL	EDAL
