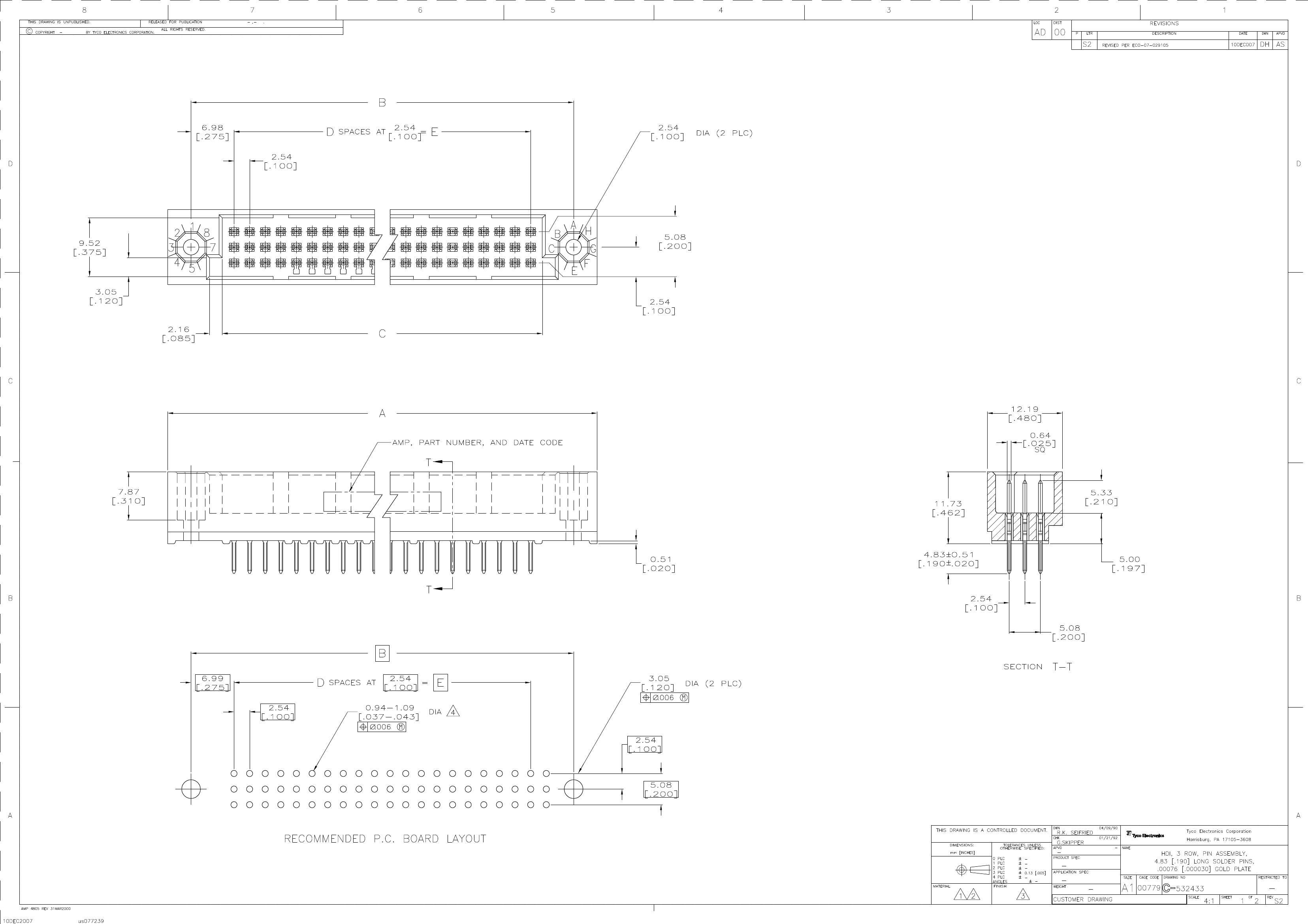

HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL

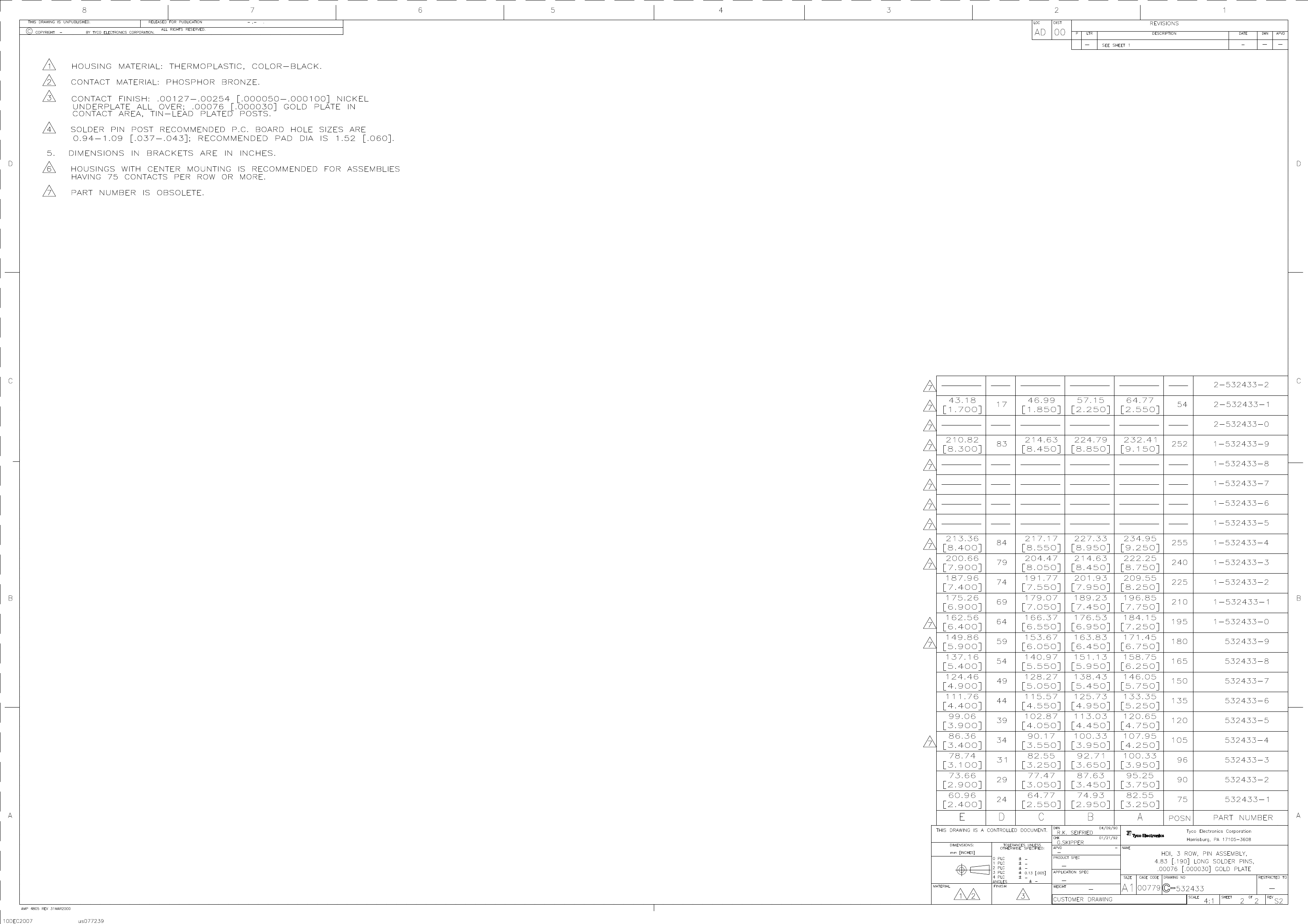

| Parameter Name | Attribute value |
| Objectid | 301475329 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Board mount options | #2-56 THD HOLE |
| body width | 0.48 inch |
| subject depth | 0.462 inch |
| body length | 6.75 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Durability | 250 Cycles |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Manufacturer's serial number | 532433 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | #2-56 |
| Installation option 2 | THREADED |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED KEY |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.19 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 180 |
| 532433-9 | 1-532433-5 | 1-532433-6 | 1-532433-7 | 1-532433-8 | 2-532433-2 | EH3520TTS-2.380M | 1-532433-4 | 6058640 | 2-532433-0 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL | CONNECTOR, MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | CONNECTOR, MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | CONNECTOR, MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | CONNECTOR, MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | CMOS, Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 4 Pad 3.2mm x 5.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 4 Pad 3.2mm x 5.0mm Ceramic Surface Mount (SMD) | CONNECTOR, 255 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG | FORK SENSORS | MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, PLUG |
| Objectid | 301475329 | 1940504065 | 1940504066 | 1940504067 | 1940504068 | 1940504196 | 7039818713 | 1515048378 | - | 1940504195 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | compliant | unknown | - | unknown |
| Body/casing type | RECEPTACLE | PLUG | PLUG | PLUG | PLUG | PLUG | - | PLUG | - | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | - | MALE | - | MALE |
| Manufacturer's serial number | 532433 | 532433 | 532433 | 532433 | 532433 | 532433 | - | 532433 | - | 532433 |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - | STRAIGHT | - | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | - | BOARD | - | BOARD |
| Number of rows loaded | 3 | 3 | 3 | 3 | 3 | 3 | - | 3 | - | 3 |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm | - | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | - | SOLDER | - | SOLDER |
| Other features | - | HIGH DENSITY | HIGH DENSITY | HIGH DENSITY | HIGH DENSITY | HIGH DENSITY | TRI-STATE; ENABLE/DISABLE FUNCTION; BULK; TAPE | HIGH DENSITY | - | HIGH DENSITY |
| DIN compliance | - | NO | NO | NO | NO | NO | - | NO | - | NO |
| Filter function | - | NO | NO | NO | NO | NO | - | NO | - | NO |
| IEC compliance | - | NO | NO | NO | NO | NO | - | NO | - | NO |
| MIL compliance | - | NO | NO | NO | NO | NO | - | NO | - | NO |
| Mixed contacts | - | NO | NO | NO | NO | NO | - | NO | - | NO |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | - | GENERAL PURPOSE |
