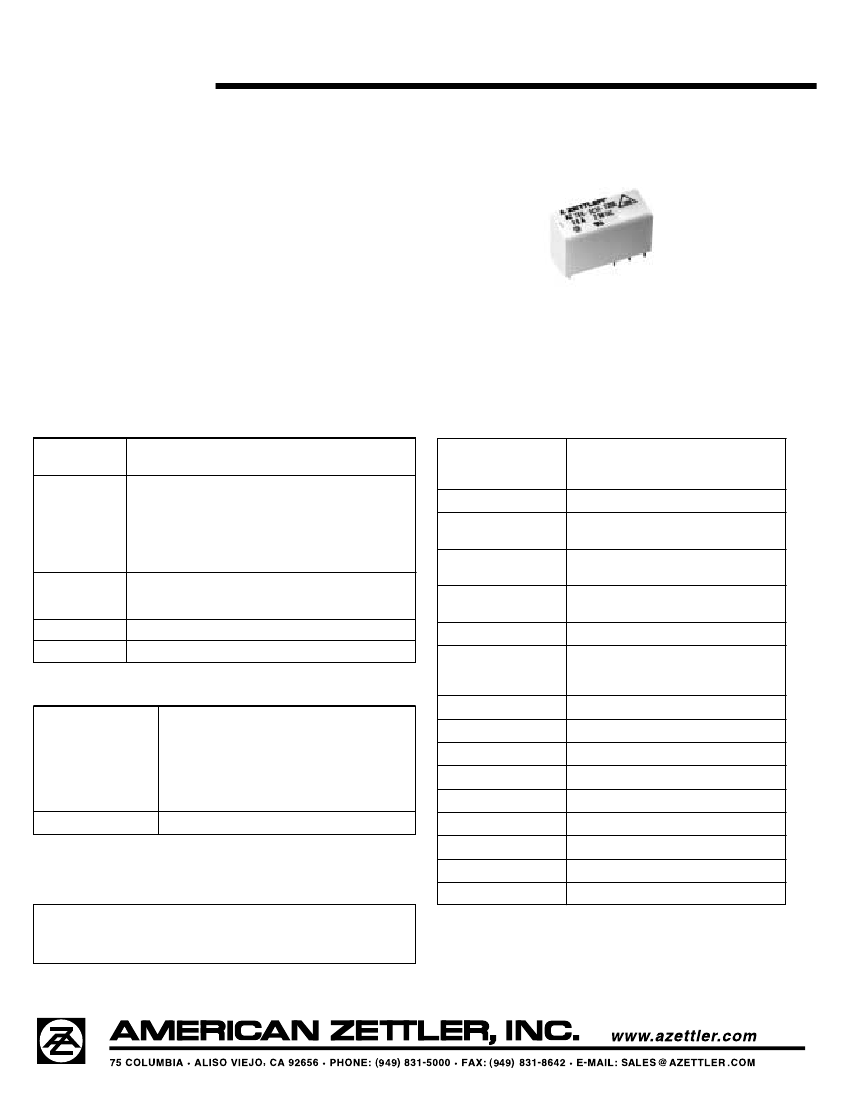

AZ764
AZ
16 A SPDT MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
Dielectric strength 5000 Vrms
Low height: 15.7 mm
Epoxy sealed version available
16 Amp switching
Isolation spacing greater than 10 mm
Proof tracking index (PTI/CTI) 250
Surpasses requirements of VDE 0631/0700
UL, CUR file E43203; VDE 112904
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A)
Resistive load:
Max. switched power: 480 W or 4000 VA
Max. switched current: 16 A
Max. switched voltage: 300* VDC or 400 VAC
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
3 x 10
7
1 x 10
5
at 16 A 240 VAC res.
7 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL, CUR
VDE
Material
Resistance
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
1000 megohms min. at 20°C
500 VDC 50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
0.062" DA at 10–55 Hz
30 g
P.B.T. polyester, UL-94 ; V0
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 Seconds
14 grams
16 A at 250 VAC general use
16 A at 250 VAC
Silver cadmium oxide or silver nickel
< 100 milliohms initially
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
200 mW
2.4 W at 20°C (68°F) ambient
2.1 W at 40°C (104°F) ambient
14°C (25°F) at nominal coil voltage
115°C (239°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Weight
2/1/01W
AZ764
AZ
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
3
5
6
9
12
18
24
36
48
60
110
Must Operate
VDC
2.1
3.5
4.2
6.3
8.4
12.6
16.8
25.2
33.6
42.0
77.0
Max. Continuous
VDC
7.6
12.7
15.3
22.9
30.6
45.9
61.2
92
122.0
153.0
280.0
Coil
Resistance ±10%
22
60
90
200
360
710
1,440
3,140
5,700
7,500
25,200
ORDER NUMBER*
Unsealed
AZ764–1CH–3D
AZ764–1CH–5D
AZ764–1CH–6D
AZ764–1CH–9D
AZ764–1CH–12D
AZ764–1CH–18D
AZ764–1CH–24D
AZ764–1CH–36D
AZ764–1CH–48D
AZ764–1CH–60D
AZ764–1CH–110D
Sealed
AZ764–1CH–3DE
AZ764–1CH–5DE
AZ764–1CH–6DE
AZ764–1CH–9DE
AZ764–1CH–12DE
AZ764–1CH–18DE
AZ764–1CH–24DE
AZ764–1CH–36DE
AZ764–1CH–48DE
AZ764–1CH–60DE
AZ764–1CH–110DE
*
“1CH” : 1 Form C, contact material silver cadmium oxide; “1AH” : 1 Form A, contact material silver cadmium oxide; “1C” : 1 Form C, contact
material silver nickel; “1A” : 1 Form A, contact material silver nickel.

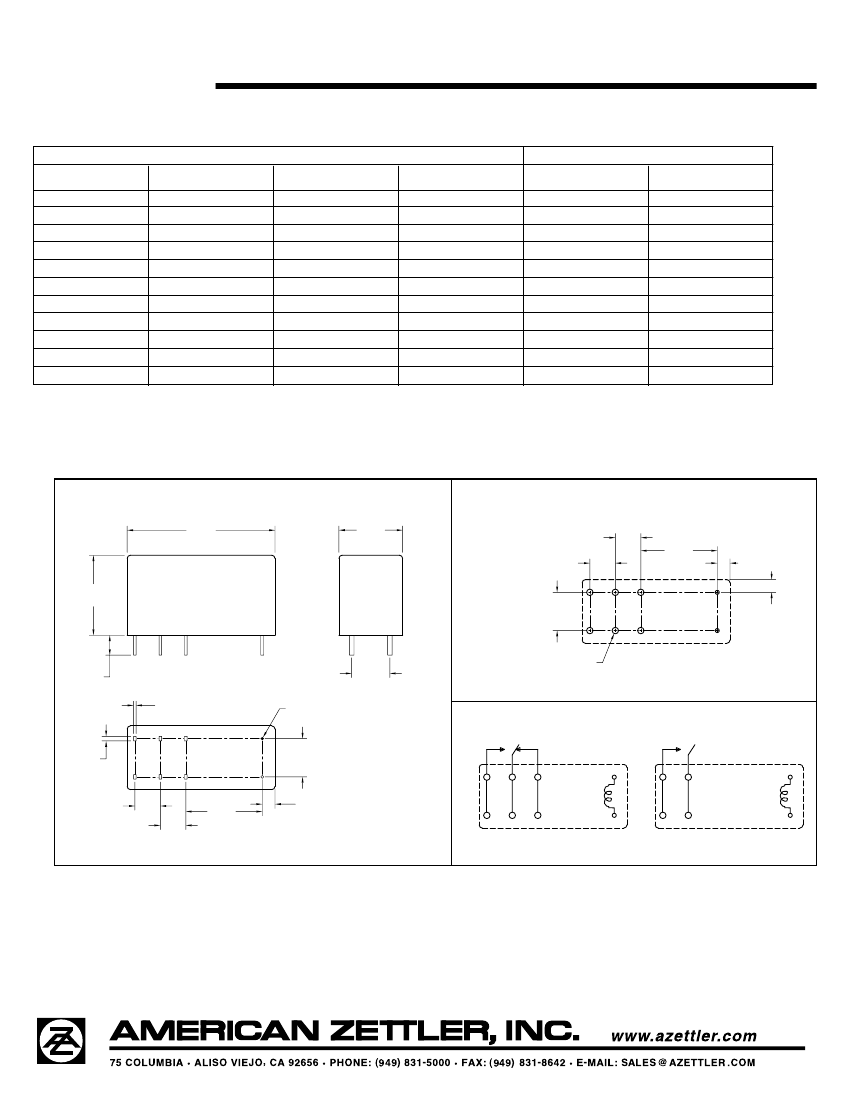

MECHANICAL DATA
PC BOARD LAYOUT
VIEWED TOWARDS TERMINALS
1.142
[29.0]
Max.
0.500
Max.
[12.7]
.197
[5.0]
.197
[5.0]
.591
[15.0]
.098
[2.5]
.618
Max.
[15.7]
*
.295
[7.5]
*
8X ø.050
[ø1.3]
* Not used on 1 Form A relay
6X .020
[0.5]
2X ø.024
[ø0.6]
.098
[2.5]
.154
[3.9]
.295
[7.5]
WIRING DIAGRAMS
VIEWED TOWARDS TERMINALS
6X .035
[0.9]
.295
[7.5]
5
4
3
2
5
4
2
.197
[5.0]
.197
[5.0]
.591
[15.0]
.098
[2.5]
8
7
6
1 Form C
1
8
7
1 Form A
1
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
2/1/01W
