VE-AIM-E1VE-AIM-E1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> VE-AIM-E1VE-AIM-E1

VE-AIM-E1VE-AIM-E1: DescriptionAC-DC Unregulated Power Supply Module, 1 Output, 250W, Hybrid, ROHS COMPLIANT, HALF BRICK PACKAGE-9; CategoryPower/power management The power supply circuit; File Size156KB，4 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric Compare View All

VE-AIM-E1VE-AIM-E1 Overview

AC-DC Unregulated Power Supply Module, 1 Output, 250W, Hybrid, ROHS COMPLIANT, HALF BRICK PACKAGE-9

VE-AIM-E1VE-AIM-E1 Parametric

Parameter Name	Attribute value
Maker	VICOR
Parts packaging code	MODULE
package instruction	ROHS COMPLIANT, HALF BRICK PACKAGE-9
Contacts	9
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	OPERATES FROM AN AC SUPPLY OF 85V TO 264V
Analog Integrated Circuits - Other Types	AC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	85 V
JESD-30 code	R-XDMA-P9
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-10 °C
Maximum output voltage	373 V
Minimum output voltage	120 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	250 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

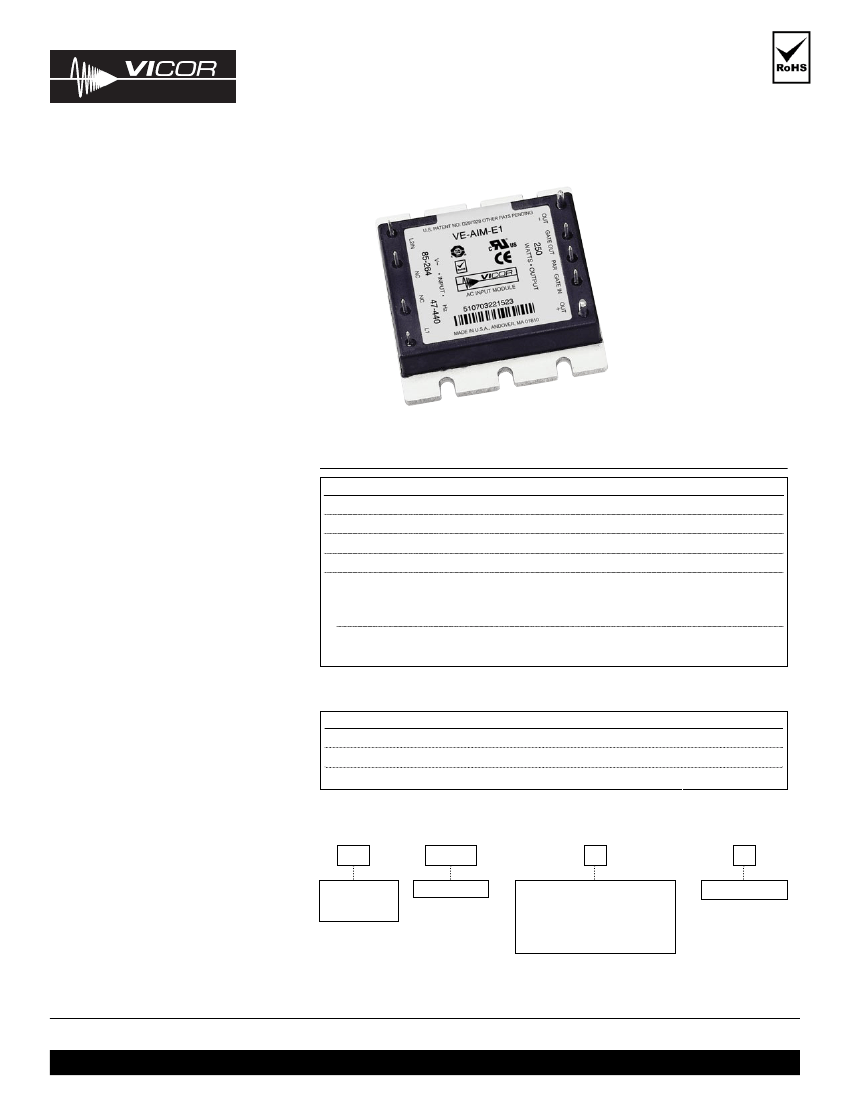

Data Sheet

VI-AIM

Features

•

RoHS compliant (VE versions)

Universal AC Input Front End Module

•

Universal input: 85 – 264 Vac

Output power: 250 W

Operating temperature: 100°C

Efficiency: 97%

Integral EMI filtering

Input transient protection

Inrush limiting

CE Marked

Actual size:

2.28 x 2.4 x 0.5 in

57,9 x 61,0 x 12,7 mm

Product Highlights

The AIM (Alternating Input Module) is an

AC front-end module which interfaces

directly with worldwide AC mains. The

AIM provides line rectification, EMI/RFI

filtering, transient protection and inrush

limiting in a half brick package measuring

2.28" x 2.4" x 0.5".

The AIM is used in conjunction with

Vicor VI-200 or VI-J00 DC-DC

converters to realize a universal AC input,

high-density, low-profile switching power

supply with outputs from 1 – 95 Vdc and

a total power rating up to 200 W. An

external capacitor is used to satisfy system

hold-up requirements. Internal EMI

filtering meets EN55022 and FCC Part 15,

Class A emissions limits.

Absolute Maximum Ratings

Parameter

Maximum value of hold-up capacitance

Thermal resistance

Operating temperature

Storage temperature

Transient surge withstand

Common mode

Normal mode

1.2/50 μS, 2 kV pulse, 2 joules

0 to 360 degree phase angle

1.2/50 μS, 1 kV pulse, 2 joules

0 to 360 degree phase angle

EN61000-4-5

IEC 801-5

With external MOV

Rating

1200

0.4

–55 to +100

–65 to 105

Unit

μF

°C/Watt

°C

Baseplate-to-sink

M-Grade

Notes

VI-AIM Input Voltage

85 – 132 Vac

180 – 264 Vac

85 – 264 Vac

Compatible DC-DC Converter

VI-x5x-xx

VI-x6x-xx

VI-x7x-xx

Notes

Used with a 100 – 200 Vin converter

Used with a 200 – 400 Vin converter

Used with a 100 – 375 Vin converter

Part Numbering

Compliance

= Non RoHS

= RoHS

AIM

AC Input Module

Product Name

Product Grade Temperatures (°C)

Grade Operating

Storage

10 to + 100

20 to + 100

25 to + 100

40 to + 100

55 to + 100

65 to + 100

* For Mega Module packaging option add an

before the product name.

Example: Vx-LAIM-xx

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

AIM, Universal AC Input Front End Module

Rev. 2.6

Page 1 of 4

Set your site on VICOR at vicorpower.com

Warranty

Vicor products are guaranteed for two years from date of shipment against defects in material or workmanship when in normal

use and service. This warranty does not extend to products subjected to misuse, accident, or improper application or

maintenance. Vicor shall not be liable for collateral or consequential damage. This warranty is extended to the original

purchaser only.

EXCEPT FOR THE FOREGOING EXPRESS WARRANTY, VICOR MAKES NO WARRANTY, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

Vicor will repair or replace defective products in accordance with its own best judgement. For service under this warranty, the

buyer must contact Vicor to obtain a Return Material Authorization (RMA) number and shipping instructions. Products

returned without prior authorization will be returned to the buyer. The buyer will pay all charges incurred in returning the

product to the factory. Vicor will pay all reshipment charges if the product was defective within the terms of this warranty.

Information published by Vicor has been carefully checked and is believed to be accurate; however, no responsibility is

assumed for inaccuracies. Vicor reserves the right to make changes to any products without further notice to improve reliability,

function, or design. Vicor does not assume any liability arising out of the application or use of any product or circuit; neither

does it convey any license under its patent rights nor the rights of others. Vicor general policy does not recommend the use of

its components in life support applications wherein a failure or malfunction may directly threaten life or injury. Per Vicor

Terms and Conditions of Sale, the user of Vicor components in life support applications assumes all risks of such use and

indemnifies Vicor against all damages.

Vicor’s comprehensive line of power solutions includes high density AC-DC

and DC-DC modules and accessory components, fully configurable AC-DC

and DC-DC power supplies, and complete custom power systems.

Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for its

use. Vicor components are not designed to be used in applications, such as life support systems, wherein a failure or

malfunction could result in injury or death. All sales are subject to Vicor’s Terms and Conditions of Sale, which are available

upon request.

Specifications are subject to change without notice.

Intellectual Property Notice

Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent

applications) relating to the products described in this data sheet. Interested parties should contact Vicor's Intellectual

Property Department.

Vicor Corporation

25 Frontage Road

Andover, MA, USA 01810

Tel: 800-735-6200

Fax: 978-475-6715

Customer Service: custserv@vicorpower.com

Technical Support: apps@vicorpower.com

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

AIM, Universal AC Input Front End Module

Rev. 2.6

11/08

Set your site on VICOR at vicorpower.com
