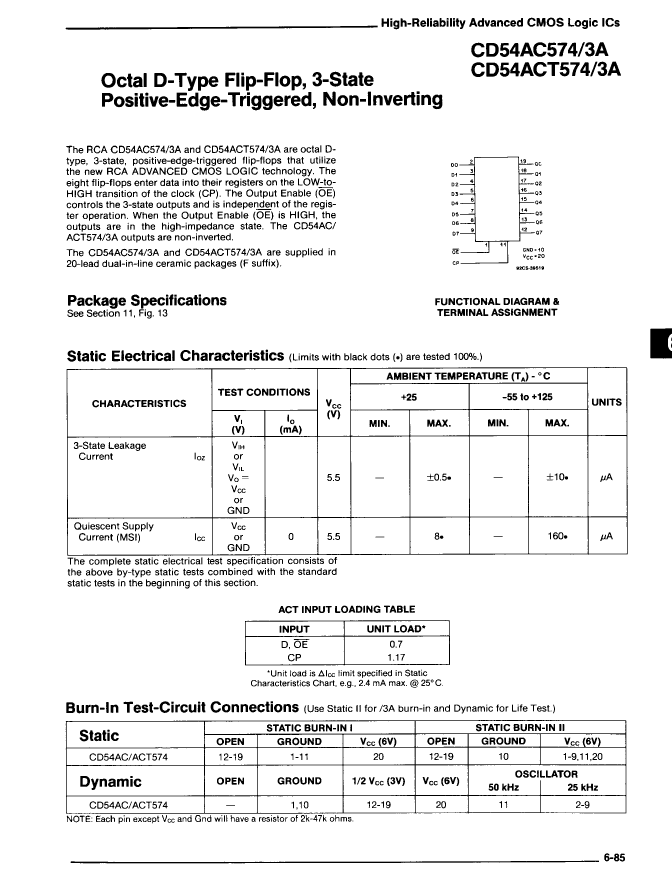

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20

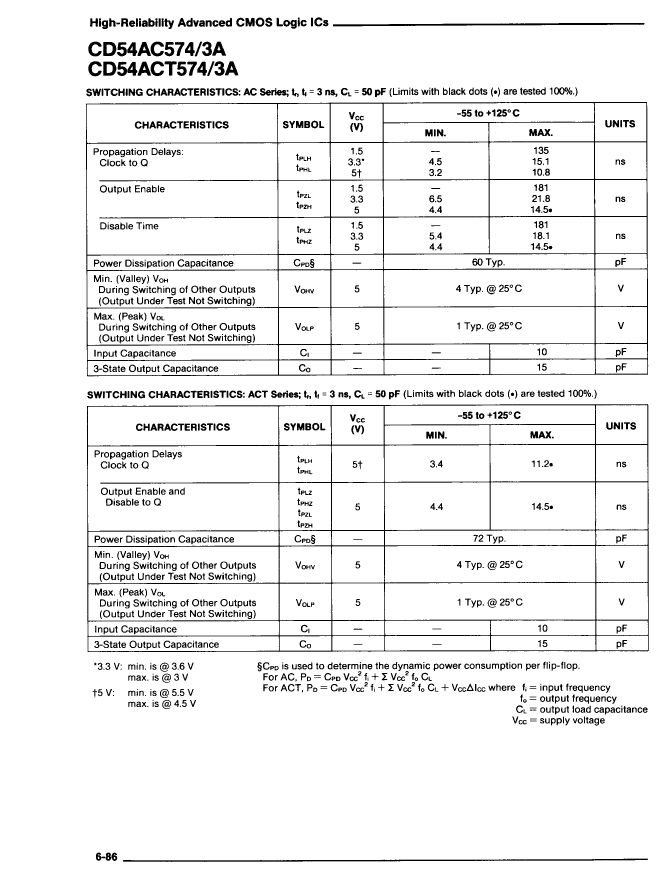

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | RCA |
| package instruction | SOP, SOP20,.4 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 75000000 Hz |
| MaximumI(ol) | 0.012 A |
| Number of functions | 8 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP20,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 3.3/5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| CD74AC574MX | CD54AC574F | CD74AC574E | CD74AC574EX | CD54ACT574F | |
|---|---|---|---|---|---|
| Description | D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20 | D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20 | D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20 | D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20, | D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | RCA | RCA | RCA | RCA | RCA |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G20 | R-XDIP-T20 | R-PDIP-T20 | R-PDIP-T20 | R-XDIP-T20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 75000000 Hz | 89000000 Hz | 101000000 Hz | 101000000 Hz | 110000000 Hz |
| MaximumI(ol) | 0.012 A | 0.012 A | 0.012 A | 0.012 A | 0.024 A |
| Number of functions | 8 | 8 | 8 | 8 | 8 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 85 °C | 85 °C | 125 °C |
| Minimum operating temperature | -40 °C | -55 °C | -40 °C | -40 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | SOP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | SOP20,.4 | DIP20,.3 | DIP20,.3 | DIP20,.3 | DIP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| power supply | 3.3/5 V | 3.3/5 V | 3.3/5 V | 3.3/5 V | 5 V |
| surface mount | YES | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | MILITARY | INDUSTRIAL | INDUSTRIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| package instruction | SOP, SOP20,.4 | - | DIP, DIP20,.3 | DIP, DIP20,.3 | - |
| Certification status | - | Not Qualified | Not Qualified | - | Not Qualified |
