BE24-2A+2B85-M: DescriptionDry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size86KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

BE24-2A+2B85-M Overview

Dry Reed Relay, 4PST, Momentary, 0.021A (Coil), 24VDC (Coil), 505mW (Coil), 1A (Contact), 1000VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

BE24-2A+2B85-M Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	19.7 mm
body height	10 mm
Body length or diameter	32.4 mm
Maximum coil current (DC)	0.021 A
Coil operating voltage (DC)	16.8 V
Coil power	505 mW
Coil release voltage (DC)	1.4 V
Coil resistance	1254 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@1000VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@1000VDC
Maximum contact voltage (AC)	1000 V
Maximum contact voltage (DC)	1000 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	BE24-2A+2B85-M
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.1 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	32.4mm x 19.7mm x 10mm
Relay action	MOMENTARY
Relay function	4PST
Relay type	DRY REED RELAY
release time	0.1 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

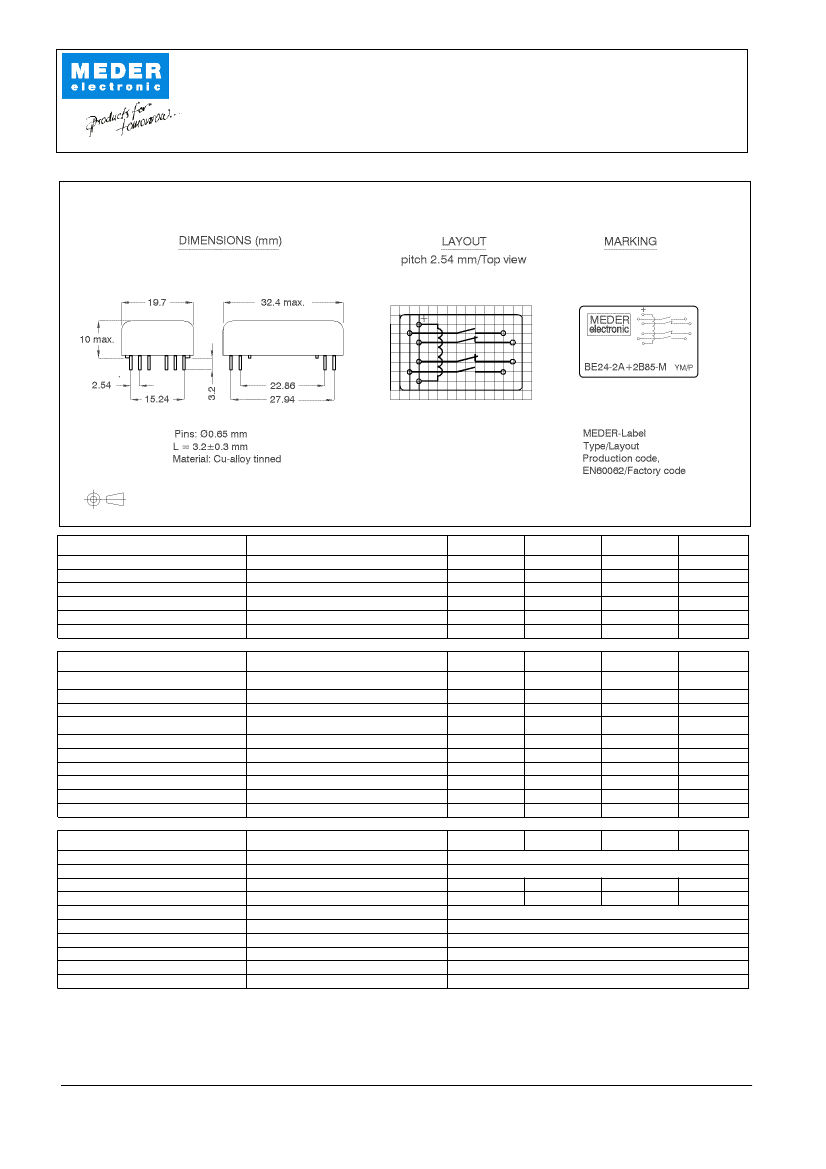

Item No.:

8824485400

Item:

BE24-2A+2B85-M

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Coil current

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact Data 85

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage (20-30 AT)

Operate time incl. bounce

Release time

Capacitance

Conditions

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

100% Duty Cycle

Measured with 40% overdrive

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

!

"

#

$%

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Case colour

Housing material

Sealing compound

Connection pins

Magnetic Shield

Reach / RoHS conformity

Conditions

according to IEC 255-5

RH <45%, 200 VDC test voltage

Min

Typ

4

A - NO

Max

Unit

!

silver metallic

Fe - magnetic screen

Polyurethan

Copper alloy tin plated

yes

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

30.06.09

16.07.10

Designed by:

Last Change by:

WKOVACS

KOLBRICH

Approval at:

12.10.09

16.07.10

Approval by:

KOLBRICH

Version:

02
