3-174902-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-174902-4

Preview

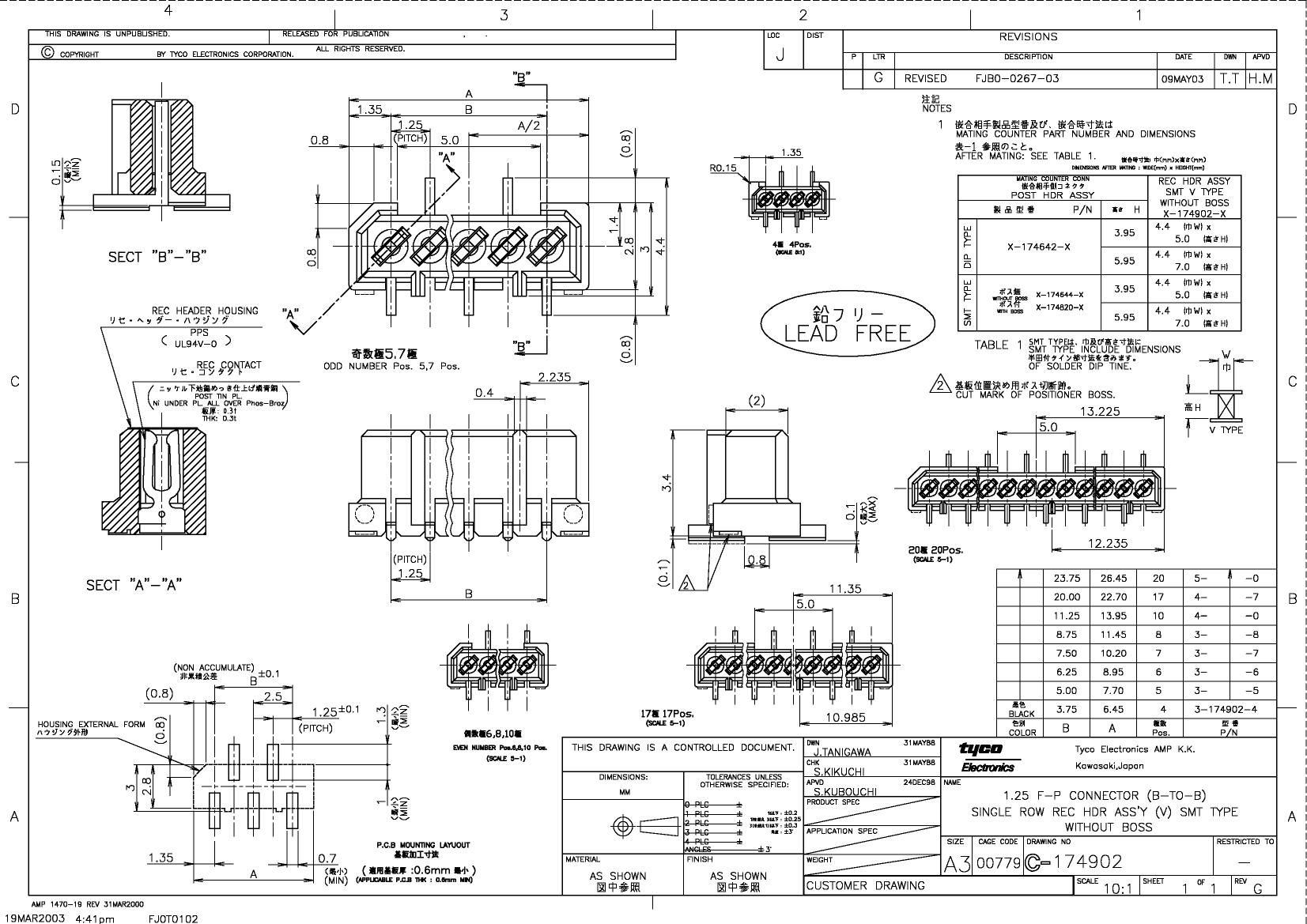

3-174902-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.049 PITCH,BLACK; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-174902-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.049 PITCH,BLACK

3-174902-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	LOOSE PIECE
body width	0.118 inch
subject depth	0.134 inch
body length	0.254 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Dielectric withstand voltage	500VDC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	174902
Plug contact pitch	0.049 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Total number of contacts	4

Preview

Download Datasheet

View All

3-174902-4 Related Products

	3-174902-4	3-174902-6	3-174902-8	4-174902-0	09VR1B30F1C502A3	09VR1B30F1N104A3	3-174902-5
Description	HEADER CONNECTOR,PCB MNT,PLUG,4 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,6 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.049 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,10 CONTACTS,SKT,0.049 PITCH,BLACK	9mm Panel Potentiometer	9mm Panel Potentiometer	HEADER CONNECTOR,PCB MNT,PLUG,5 CONTACTS,SKT,0.049 PITCH,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	-	-	compli
Other features	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	LOOSE PIECE	-	-	LOOSE PIECE
body width	0.118 inch	0.118 inch	0.118 inch	0.118 inch	-	-	0.118 inch
subject depth	0.134 inch	0.134 inch	0.134 inch	0.134 inch	-	-	0.134 inch
body length	0.254 inch	0.352 inch	0.451 inch	0.549 inch	-	-	0.303 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	-	-	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB	-	-	SN-PB
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	-	10 mΩ
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	-	-	500VDC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	-	-	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	-	-	BLACK
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	-	-	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	174902	174902	174902	174902	-	-	174902
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	-	-	0.049 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	-	-	ONE
PCB row number	2	2	2	2	-	-	2
Number of rows loaded	1	1	1	1	-	-	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	-	-	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-	-	-30 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	-	STAGGERED
PCB contact row spacing	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	-	-	2.9972 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	-	-	30u inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	-	-	HOUSING SIDE
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	-	-	0.5 A
Guideline	UL	UL	UL	UL	-	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	-	-	2.4892 mm
Total number of contacts	4	6	8	10	-	-	5
