AZ943-1CH-5DF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ943-1CH-5DF

AZ943-1CH-5DF: DescriptionPower/Signal Relay, 1 Form C, SPDT, Latched, 6.5VDC (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size100KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ943-1CH-5DF Overview

Power/Signal Relay, 1 Form C, SPDT, Latched, 6.5VDC (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output

AZ943-1CH-5DF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
ECCN code	EAR99
body width	15.49 mm
body height	15.95 mm
Body length or diameter	19.25 mm
Coil operating voltage (DC)	3.8 V
Coil resistance	70 Ω
Maximum coil voltage (DC)	6.5 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2770VA@277VAC
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	210W@30VDC
Contact (DC) maximum rated R load	10A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Tin Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Manufacturer's serial number	AZ943
Number of terminals	5
operating hours	10 ms
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	19.25mm x 15.49mm x 15.95mm
Guideline	TUV; UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
Terminal surface	Tin (Sn)
Terminal length	0.0035 inch
Termination type	SOLDER
weight	10 g

Preview

Download Datasheet

View All

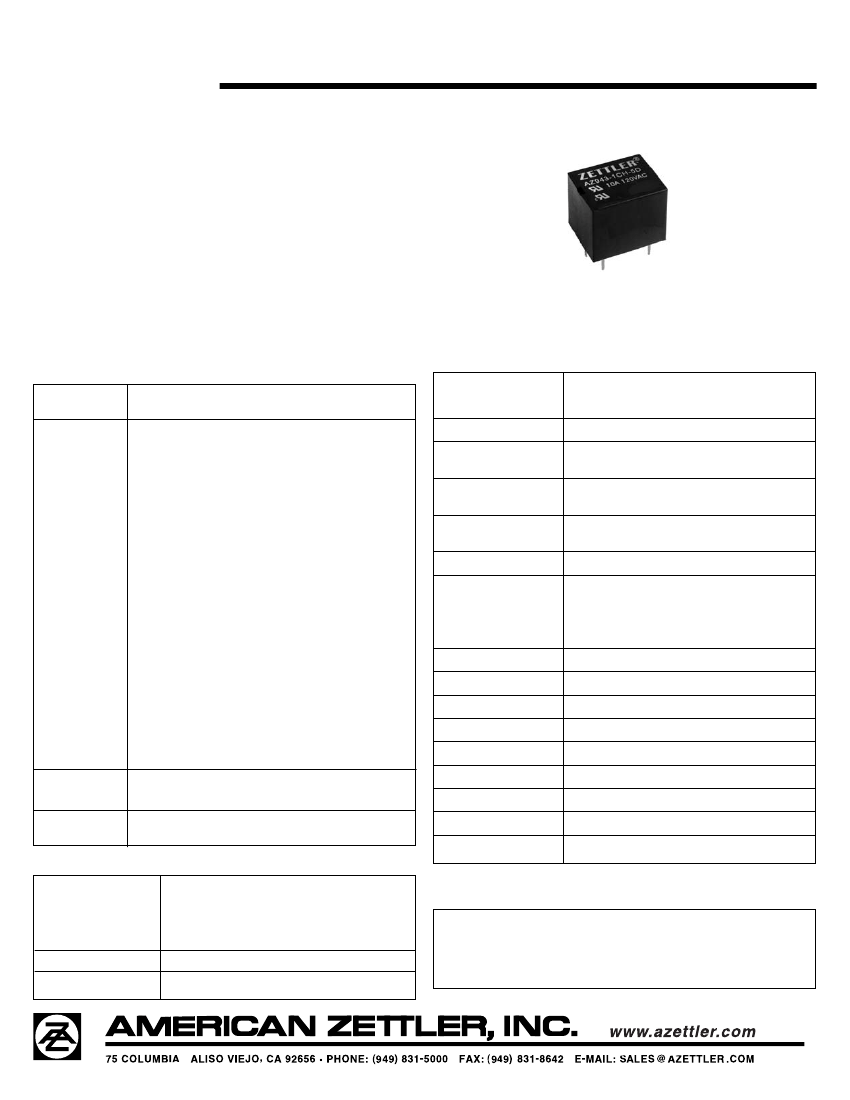

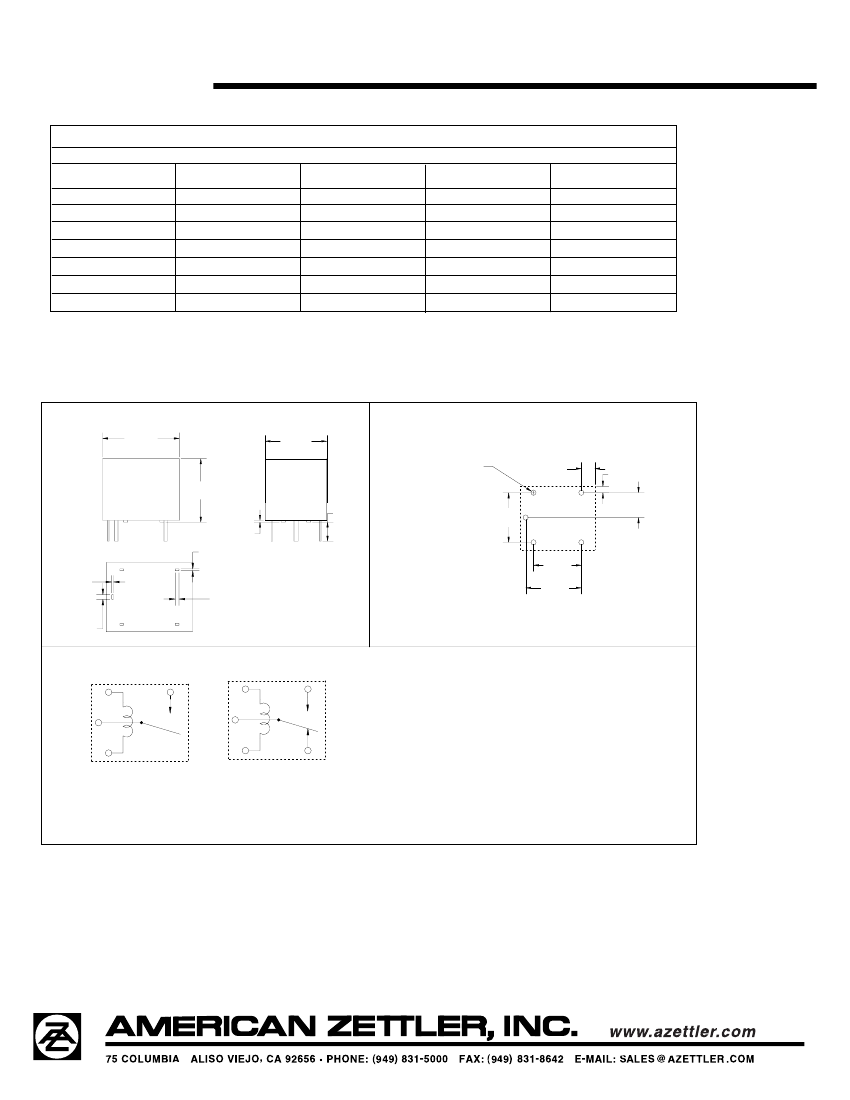

AZ943

15 AMP

MINIATURE

PC BOARD RELAY

FEATURES

•

High performance

Low seated height

Flux tight and sealed versions available

Class B insulation (130°C) standard

Class F insulation (155°C) available

UL, CUR file E43203

TÜV file R50161256

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

Release Time

1 x 10

at 10 A 277 VAC Res.

10 ms max.

5 ms max.

(with no coil suppression)

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

SPDT (1 Form C)

Form A and C

Max. switched power: 210 W or 2770 VA

Max. switched current: 15 A AC, 7 A DC

Max. switched voltage: 30 VDC or 300 VAC

1 Form A

15 A at 125 VAC, general use

10A at 277 VAC, general use, 100,000 cycles

TV - 5 120 VAC

1/2 HP at 125 VAC

125 VA at 120 VAC Pilot Duty, 100k cycles (N.O.)

8A at 125 VAC, 1000W (N.O.)Tungsten

1 Form C

10 A at 277 VAC, general use, 100,000 cycles

1/2 HP at 125 VAC N.O.

125 VA at 120 VAC Pilot Duty, 100k cycles (N.O.)

10 A/7A N.O./N.C. at 30 VDC resistive

1 Form A

10 A at 277 VAC, resistive, 70k cycles

Enclosure

1 Form C

5 A at 250 VAC, resistive, 100k cycles

8 A at 250 VAC, resistive, 50k cycles

12 A at 125 VAC, resistive, 100k cycles

Material

Resistance

Silver tin oxide (gold plating available not TÜV approved)

< 100 milliohms initially

(24 V, 1 A method)

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

10 g

Ambient Temperature

Operating

Storage

Vibration

Shock

At nominal coil voltage

-40°C(-40°F) to 90°C(194°F) Class B

-40°C(-40°F) to 110°C(230°F) Class F

-40°C(-40°F) to 130°C(266°F)

0.062" DA at 10–55 Hz

10 g

UL/CUR

Dielectric Strength

1500 Vrms contact to coil

(at sea level for 1 min.)

1000 Vrms across contacts

Insulation Resistance

Dropout

100 megohms min. at 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

TÜV

COIL

Power

At Pickup Voltage

Max Continuous

Dissipation

Temperature Rise

Temperature

203 mW

1.8 W at 20°C (68°F) Class B

2.4 W at 20°C (68°F) Class F

32°C (58°F) at nominal coil voltage

Max. 130°C (266°F) Class B

Max. 155°C (311°F) Class F

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Unsealed relays should not be dip cleaned.

4. Specifications subject to change without notice.

8/13/09
