SJT00RT-14-15SB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SJT00RT-14-15SB

Preview

SJT00RT-14-15SB: DescriptionMIL Series Connector, 15 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

SJT00RT-14-15SB Overview

MIL Series Connector, 15 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

SJT00RT-14-15SB Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD (50)
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SJT00RT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM OVER NICKEL
Shell material	ALUMINUM ALLOY
Housing size	14
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

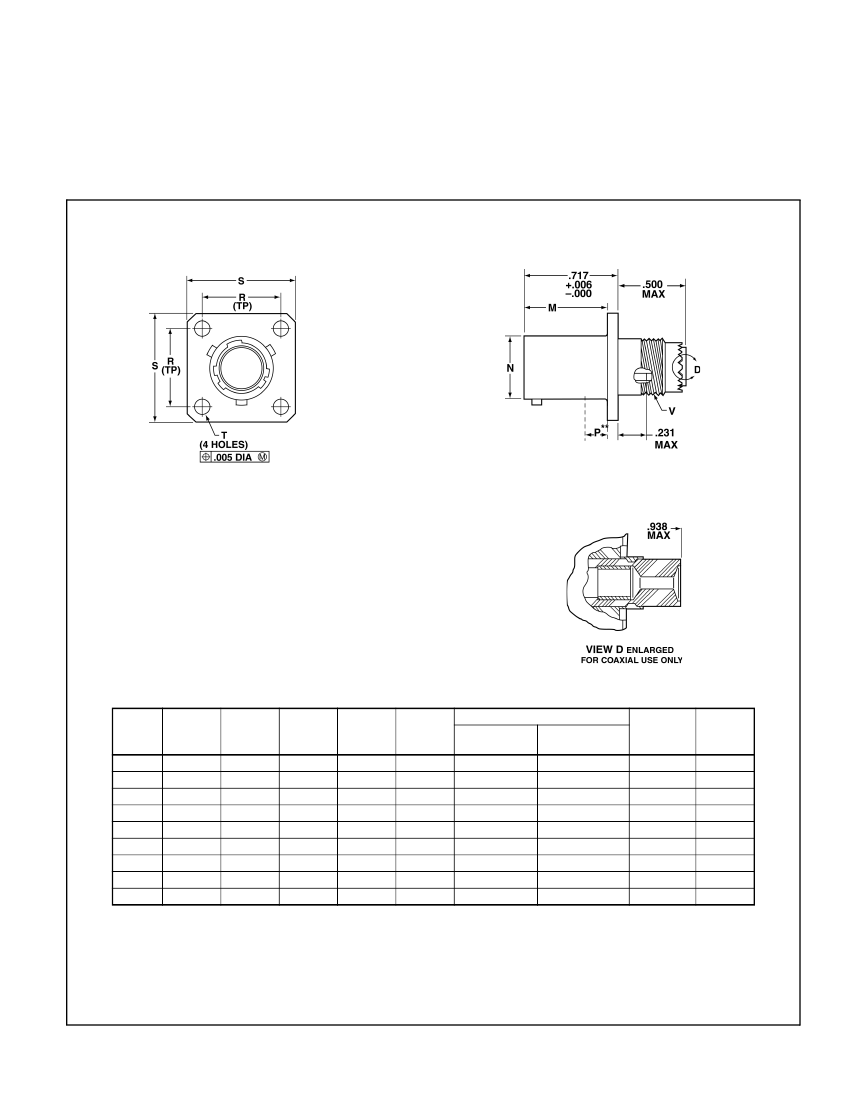

SJT00RT–

crimp

wall mounting receptacle

*SJT00RT-XX-XXX

* To complete order number, see page 20

** Standard wall mount may be back panel mounted where panel thickness does not

exceed these dimensions. For thicker panel applications, SJTP00RT should be used,

page 10.

Shell

Size

8

10

12

14

16

18

20

22

24

L

Max

.500

.550

M

+.000

–.005

.632

.602

V Thread Modified

R

(TP)

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

S

±.016

.812

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

T

±.005

.120

.147

Class 2A

UNEF (Plated)

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

Modified

Major Dia.

.421 –

.542 –

.667 –

.791 –

.916 –

.417

.538

.663

.787

.912

N

+.001

–.005

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

P**

Max

.117

.087

.055

1.034 – 1.030

1.158 – 1.154

1.283 – 1.279

1.408 – 1.404

All dimensions for reference only.
