9412_ACB
(1/3)
EMC Components
Ferrite Beads
SMD
FEATURES
• The ACB series provide effective EMC suppression in signal lines
through simple in-series implementation. It is thus ideal for cir-
cuits in which it is difficult to bypass high-frequency components
to ground.
• Reflection components are highly suppressed through the use of
a special ferrite material and an advanced internal structure that
minimizes stray capacitance. This product is, therefore, an excel-
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
L
ACB Series
lent countermeasure for noise radiation in high-speed digital sig-
nal lines.
• The ultra-miniature 1.6
×
0.8 mm part exhibits a 600Ω imped-
ance at 100MHz, which is the larger type 2012.
• Both the 1608 and 2012 types are available in a large number of
impedance values. Different characteristics can thus be
achieved without changing PC board land patterns.
ELECTRICAL CHARACTERISTICS
Part No.
ACB1608L-015-
ACB1608L-030-
ACB1608L-060-
ACB1608L-120-
ACB1608L-300-
ACB1608M-040-
ACB1608M-080-
ACB1608M-120-
ACB1608M-300-
ACB1608M-600-
ACB1608H-015-
ACB1608H-030-
ACB1608H-060-
ACB1608H-120-
ACB1608H-300-
ACB2012L-015-
ACB2012L-030-
ACB2012L-060-
ACB2012L-120-
ACB2012L-300-
ACB2012L-600-
ACB2012M-040-
ACB2012M-080-
ACB2012M-120-
ACB2012M-300-
ACB2012M-600-
ACB2012H-015-
ACB2012H-030-
ACB2012H-060-
ACB2012H-120-
ACB2012H-300-
∗
∗
W
Terminal
electrode
Ferrite
No polarity
D
Shape
1608
2012
L
1.6±0.15
2±0.2
Dimensions in mm
W
T
D
0.8+0.3, –0.1 0.8+0.3, –0.1 0.3±0.2
1.25±0.2
0.9±0.2
0.4±0.2
RECOMMENDED PC BOARD PATTERNS
REFLOW AND FLOW SOLDERING
Resist
a
b
a
Land pattern
Type
ACB1608
ACB2012
a
1
1
b
0.6
1
Dimensions in mm
c
0.8
1
Impedance
(Ω) [100MHz]
15±25%
30±25%
60±25%
120±25%
300±25%
40±25%
80±25%
120±25%
300±25%
600±25%
15±25%
30±25%
60±25%
120±25%
300±25%
15±25%
30±25%
60±25%
120±25%
300±25%
600±25%
40±25%
80±25%
120±25%
300±25%
600±25%
15±25%
30±25%
60±25%
120±25%
300±25%
DC resistance
(Ω)max.
0.1
0.3
0.4
0.5
1.5
0.3
0.5
0.7
1.2
1.8
0.3
0.4
0.7
1.2
1.8
0.1
0.3
0.4
0.5
1
2
0.3
0.4
0.5
0.9
1.3
0.3
0.4
0.5
0.9
1.3
Rated current
(mA)max.
500
400
300
200
200
400
300
200
150
100
400
300
200
150
100
600
500
400
300
250
150
500
400
300
200
100
400
300
300
200
100
,,,,
,, ,
,,,,
,,
,
,
,
,,
,
,
,,
,,
,
, ,
,
,
c
,
,
,,
,,
T
:Packaging style (T: Taping [ø180mm reel], TL: Taping [ø330mm reel],
B: Bulk)
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
9412_ACB
(2/3)
EMC Components
Ferrite Beads
SMD

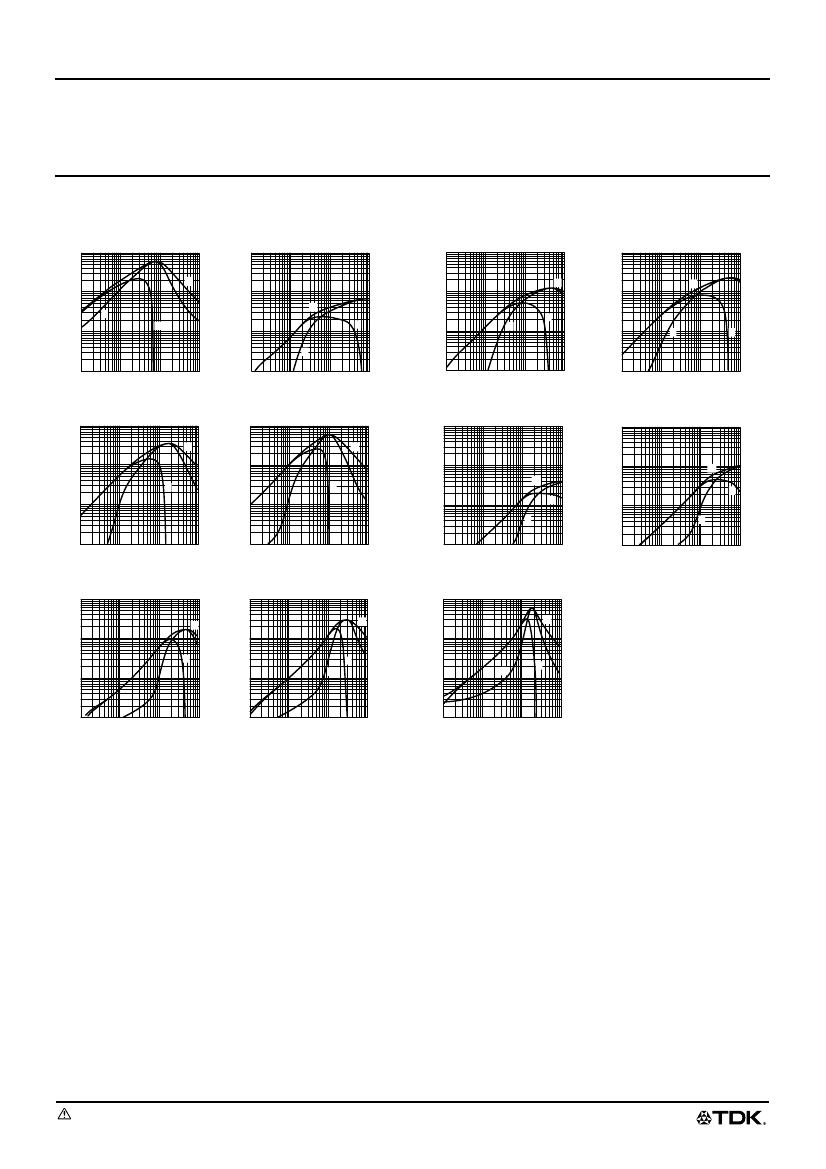

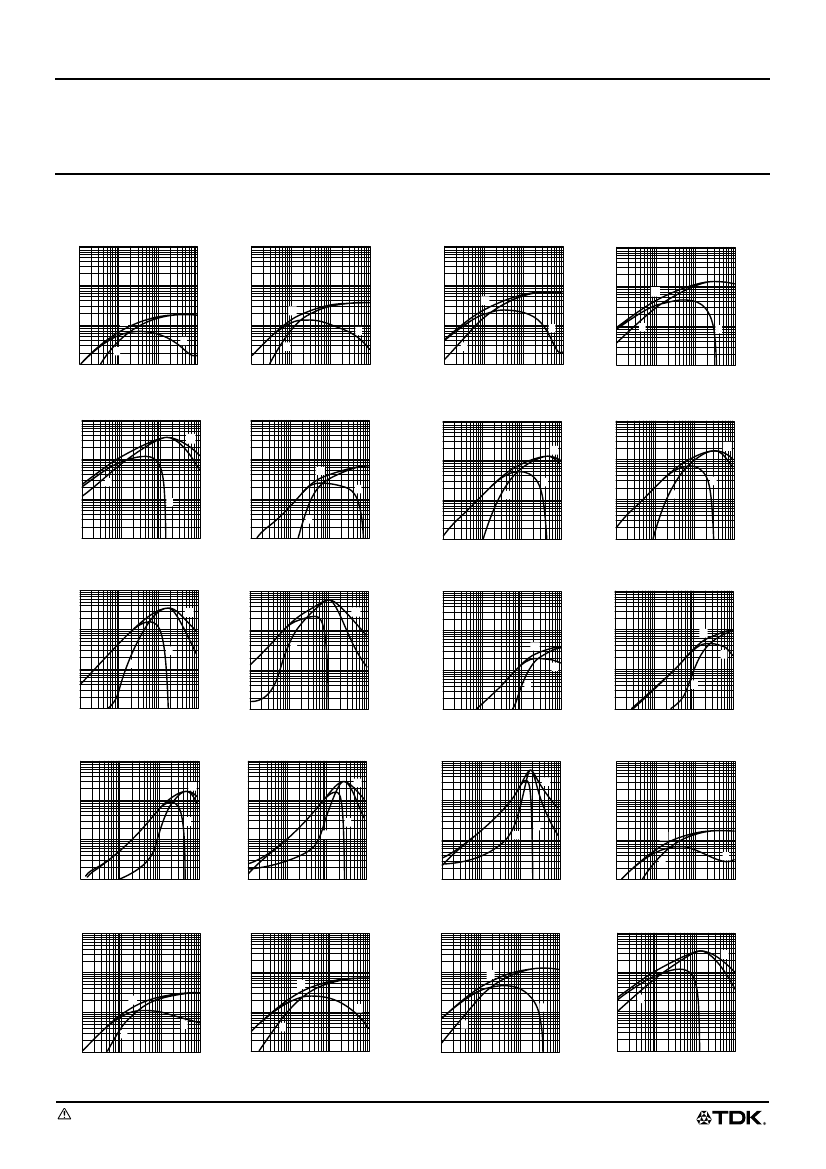

TYPICAL ELECTRICAL CHARACTERISTICS
Z, X, R vs. FREQUENCY CHARACTERISTICS
ACB1608L-015
ACB1608L-030
1000
1000
ACB Series
ACB1608L-060
1000
ACB1608L-120
1000
Z, X, R(
Ω
)
Z, X, R(
Ω
)
Z, X, R(
Ω
)
Z, X, R(
Ω
)
100
100
Z
10
R
X
100
Z
10
R
X
100
Z
10
R
1
1
Z
X
10
100
Frequency (MHz)
1000
10
R
X
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
ACB1608L-300
1000
Z
ACB1608M-040
1000
ACB1608M-080
1000
ACB1608M-120
1000
Z
Z, X, R(
Ω
)
100
X
10
R
Z
Z, X, R(
Ω
)
Z, X, R(
Ω
)
Z
X
10
R
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
Z, X, R(
Ω
)
100
R
10
X
100
100
X
10
R
1000
ACB1608M-300
1000
Z
Z, X, R(
Ω
)
ACB1608M-600
1000
Z
Z, X, R(
Ω
)
ACB1608H-015
1000
ACB1608H-030
1000
X
10
R
R
10
X
Z, X, R(
Ω
)
Z
10
R
X
Z, X, R(
Ω
)
100
100
100
100
Z
X
10
R
1
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
10
100
Frequency (MHz)
1000
ACB1608H-060
1000
Z
Z, X, R(
Ω
)
ACB1608H-120
1000
Z
Z, X, R(
Ω
)
ACB1608H-300
1000
Z
Z, X, R(
Ω
)
ACB2012L-015
1000
X
10
R
X
10
R
X
10
R
Z, X, R(
Ω
)
100
100
100
100
10
Z
R
X
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
ACB2012L-030
1000
ACB2012L-060
1000
ACB2012L-120
1000
ACB2012L-300
1000
Z
Z, X, R(
Ω
)
Z, X, R(
Ω
)
Z
10
R
1
X
Z, X, R(
Ω
)
Z, X, R(
Ω
)
100
Z
10
X
R
1
1
10
100
Frequency (MHz)
1000
100
100
Z
100
R
10
10
R
1
X
X
1
10
100
Frequency (MHz)
1000
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
• TEST EQUIPMENT: RF IMPEDANCE ANALYZER YHP4191A
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
9412_ACB
(3/3)
EMC Components
Ferrite Beads
SMD
TYPICAL ELECTRICAL CHARACTERISTICS
Z, X, R vs. FREQUENCY CHARACTERISTICS
ACB2012L-600
ACB2012M-040
1000
1000
ACB Series
ACB2012M-080
1000
ACB2012M-150
1000
Z
Z, X, R(
Ω
)
Z, X, R(
Ω
)
Z, X, R(
Ω
)
100
R
10
X
100
Z
10
R
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
X
100
X
10
R
Z
Z, X, R(
Ω
)
100
Z
10
R
X
1000
1
1
10
100
Frequency (MHz)
1000
ACB2012M-300
1000
Z
Z, X, R(
Ω
)
ACB2012M-600
1000
Z
Z, X, R(
Ω
)
ACB2012H-015
1000
ACB2012H-030
1000
Z, X, R(
Ω
)
X
10
R
X
10
R
Z
10
R
X
Z, X, R(
Ω
)
100
100
100
100
Z
X
10
R
1
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
10
100
Frequency (MHz)
1000
ACB2012H-060
1000
Z
Z, X, R(
Ω
)
ACB2012H-120
1000
Z
Z, X, R(
Ω
)
ACB2012H-300
1000
Z
Z, X, R(
Ω
)
100
X
100
X
10
R
100
X
10
R
10
R
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
• TEST EQUIPMENT: RF IMPEDANCE ANALYZER YHP4191A
9412_ACB
001031
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
