a
FEATURES
200 mA of Output Current
9 Load
SFDR –54 dBc @ 1 MHz
Differential Gain Error 0.04%, f = 4.43 MHz
Differential Phase Error 0.06 , f = 4.43 MHz
Maintains Video Specifications Driving Eight Parallel
75 Loads
0.02% Differential Gain
0.03 Differential Phase
0.1 dB Gain Flatness to 60 MHz
THD –72 dBc @ 1 MHz, R
L
= 18.75
IP3 42 dBm @ 5 MHz, R
L
= 18.75
1 dB Gain Compression 21 dBm @ 5 MHz, R
L
= 100
230 MHz –3 dB Bandwidth, G = +1, R
L
= 18.75
800 V/ s Slew Rate, R
L
= 18.75
25 ns Settling Time to 0.1%
Available in 8-Lead DIP, 16-Lead Wide Body SOIC and
Thermally Enhanced 8-Lead SOIC
APPLICATIONS
Video Distribution Amplifier
VDSL, xDSL Line Driver
Communications
ATE
Instrumentation
200 mA Output Current
High Speed Amplifier
AD8010
CONNECTION DIAGRAMS
8-Lead DIP and SOIC
NC
1
–IN
2
+IN
3
–V
S 4
AD8010
8
NC
7
+V
S
6
OUT
5
NC
NC = NO CONNECT
16-Lead Wide Body SOIC
NC
1
NC
2
–IN
3
NC
4
+IN
5
NC
6
–V
S 7
NC
8
AD8010
16
NC
15
NC
14
+V
S
13
NC
12
OUT
11
NC
10
NC
9
NC
NC = NO CONNECT
PRODUCT DESCRIPTION
The AD8010 is a low power, high current amplifier capable of
delivering a minimum load drive of 175 mA. Signal performance
such as 0.02% and 0.03° differential gain and phase error is
maintained while driving eight 75
Ω
back terminated video lines.
The current feedback amplifier features gain flatness to 60 MHz
and –3 dB (G = +1) signal bandwidth of 230 MHz and only
requires a typical of 15.5 mA supply current from
±5
V supplies.
These features make the AD8010 an ideal component for Video
Distribution Amplifiers or as the drive amplifier within high data
rate Digital Subscriber Line (VDSL and xDSL) systems.
The AD8010 is an ideal component choice for any application
that needs a driver that will maintain signal quality when driving
low impedance loads.
The AD8010 is offered in three package options: an 8-lead DIP,
16-lead wide body SOIC and a low thermal resistance 8-lead
SOIC, and operates over the industrial temperature range of
–40°C to +85°C.
75
R
F
R
G
+5V
V
OUT1
V
OUT2
V
OUT3
V
OUT4
V
IN
R
T
R
S
AD8010
V
OUT5
–5V
V
OUT6
V
OUT7
V
OUT8
75
Figure 1. Video Distribution Amplifier
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
World Wide Web Site: http://www.analog.com
Fax: 781/326-8703
© Analog Devices, Inc., 1998
(@
=
V, G +2, R =
AD8010–SPECIFICATIONS
–40 C,+25 C,=V+85 C5unless=otherwise 18.75 , R
R = R = 562 (N-8), R = R = 499
(R-8). T =
T
noted)
S
L
F
G
F
G
MIN
MAX
S+
= 150
Typ
230
190
60
90
0.02
800
2.0
25
, R
F
= R
G
= 604
Max
(R-16),
Units
MHz
MHz
MHz
MHz
dB
V/µs
ns
ns
M
odel
DYNAMIC PERFORMANCE
–3 dB Bandwidth
0.1 dB Bandwidth
Large Signal Bandwidth
Peaking
Slew
Rise and Fall Time
Settling Time
NOISE/HARMONIC PERFORMANCE
Distortion
2nd Harmonic
Conditions
G = +1, V
OUT
= 0.2 V p-p
G = +2, V
OUT
= 0.2 V p-p
V
OUT
= 0.2 V p-p
V
OUT
= 4 V p-p
V
OUT
= 0.2 V p-p, < 5 MHz
V
OUT
= 2 V p-p
V
OUT
= 2 V p-p
0.1%, V
OUT
= 2 V p-p
V
OUT
= 2 V p-p
1 MHz
5 MHz
10 MHz
10 MHz, R
L
= 39
Ω
20 MHz
1 MHz
5 MHz
10 MHz
10 MHz, R
L
= 39
Ω
20 MHz
5 MHz
∆f
= 10 kHz
5 MHz
5 MHz
f = 10 kHz
f = 10 kHz, +In
f = 20 kHz, –In
f = 4.43 MHz, R
L
= 150
Ω
f = 4.43 MHz, R
L
= 18.75
Ω
f = 4.43 MHz, R
L
= 150
Ω
f = 4.43 MHz, R
L
=18.75
Ω
Min
180
130
30
3rd Harmonic
IMD
IP3
1 dB Gain Compression
Input Noise Voltage
Input Noise Current
Differential Gain
Differential Phase
DC PERFORMANCE
Input Offset Voltage
–73
–58
–53
–67
–44
–77
–63
–57
–63
–50
–73
42
21
2
3
20
0.02
0.02
0.02
0.03
5
12
15
135
200
12
20
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBc
dBm
dBm
nV√Hz
pA√Hz
pA√Hz
%
%
Degrees
Degrees
mV
mV
µV/°C
µA
µA
µA
µA
kΩ
Ω
pF
dB
V
kΩ
kΩ
T
MIN
–T
MAX
Offset Drift
Input Bias Current (–)
T
MIN
–T
MAX
Input Bias Current (+)
T
MIN
–T
MAX
INPUT CHARACTERISTICS
Input Resistance
Input Capacitance
Common-Mode Rejection Ratio
Input Common-Mode Voltage Range
Open Loop Transresistance
OUTPUT CHARACTERISTICS
Output Voltage Swing
R
L
= 18.75
Ω
R
L
= 150
Ω
Output Current
Short-Circuit Current
Capacitive Load Drive
POWER SUPPLY
Operating Range
Quiescent Current
Power Supply Rejection Ratio
Specifications subject to change without notice.
10
10
6
+Input
–Input
V
CM
=
±
2.5 V
V
OUT
=
±
2.5 V
T
MIN
–T
MAX
50
300
250
125
12.5
2.75
54
±
2.5
500
R
L
= 9
Ω
±
2.1
±
2.7
175
±
2.5
±
3.0
200
240
40
±
6.0
17
20
V
V
mA
mA
pF
V
mA
mA
dB
dB
±
4.5
15.5
T
MIN
to T
MAX
+V
S
= +4 V to +6 V, –V
S
= +5 V
+V
S
= +5 V, –V
S
= –4 V to –6 V
60
50
66
56
–2–
REV. A
AD8010
ABSOLUTE MAXIMUM RATINGS
1
MAXIMUM POWER DISSIPATION
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.6 V
Internal Power Dissipation
2
Plastic Package (N) . . . . . . . Observe Power Derating Curves
Small Outline Package (R) . . Observe Power Derating Curves
Wide Body SOIC (R-16) . . . . Observe Power Derating Curves
Input Voltage (Common-Mode) . . . . . . . . . . . . . . . . . . . .
±
V
S
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . .
±
1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . –65°C to +125°C
Operating Temperature Range (A Grade) . . . –40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . +300°C
NOTES
1
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
2
Specification is for device in free air:
8-Lead Plastic Package:
θ
JA
= 90°C/Watt
8-Lead SOIC Package:
θ
JA
= 122°C/Watt
16-Lead SOIC Package:
θ
JA
= 73°C/Watt
3.0
MAXIMUM POWER DISSIPATION – Watts
The maximum power that can be safely dissipated by the
AD8010 is limited by the associated rise in junction tempera-
ture. The maximum safe junction temperature for plastic
encapsulated devices is determined by the glass transition tem-
perature of the plastic, approximately +150°C. Temporarily
exceeding this limit may cause a shift in parametric perfor-
mance due to a change in the stresses exerted on the die by the
package. Exceeding a junction temperature of +175°C for an
extended period can result in device failure.
While the AD8010 is internally short circuit protected, this
may not be sufficient to guarantee that the maximum junction
temperature (+150°C) is not exceeded under all conditions. To
ensure proper operation, it is necessary to observe the maximum
power derating curves.
T
J
= +150 C
2.5
8-LEAD MINI-DIP PACKAGE
2.0
16-LEAD SOIC
PACKAGE (WIDEBODY)
1.5
1.0
8-LEAD SOIC PACKAGE
0.5
0
–50 –40 –30 –20 –10 0 10 20 30 40 50 60 70 80 90
AMBIENT TEMPERATURE – C
Figure 2. Plot of Maximum Power Dissipation vs. Temperature
ORDERING GUIDE
Model
AD8010AN
AD8010AR
AD8010AR-16
AD8010AR-REEL
AD8010AR-REEL7
AD8010AR-16-REEL
AD8010AR-16-REEL7
Temperature Range
–40°C to +85°C
–40°C to +85°C
–40°C to +85°C
Package Description
8-Lead Plastic DIP
8-Lead Plastic SOIC
16-Lead Wide Body SOIC
REEL SOIC
REEL SOIC
REEL SOIC
REEL SOIC
Package Options
N-8
SO-8
R-16
13" REEL
7" REEL
13" REEL
7" REEL
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD8010 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
REV. A
–3–

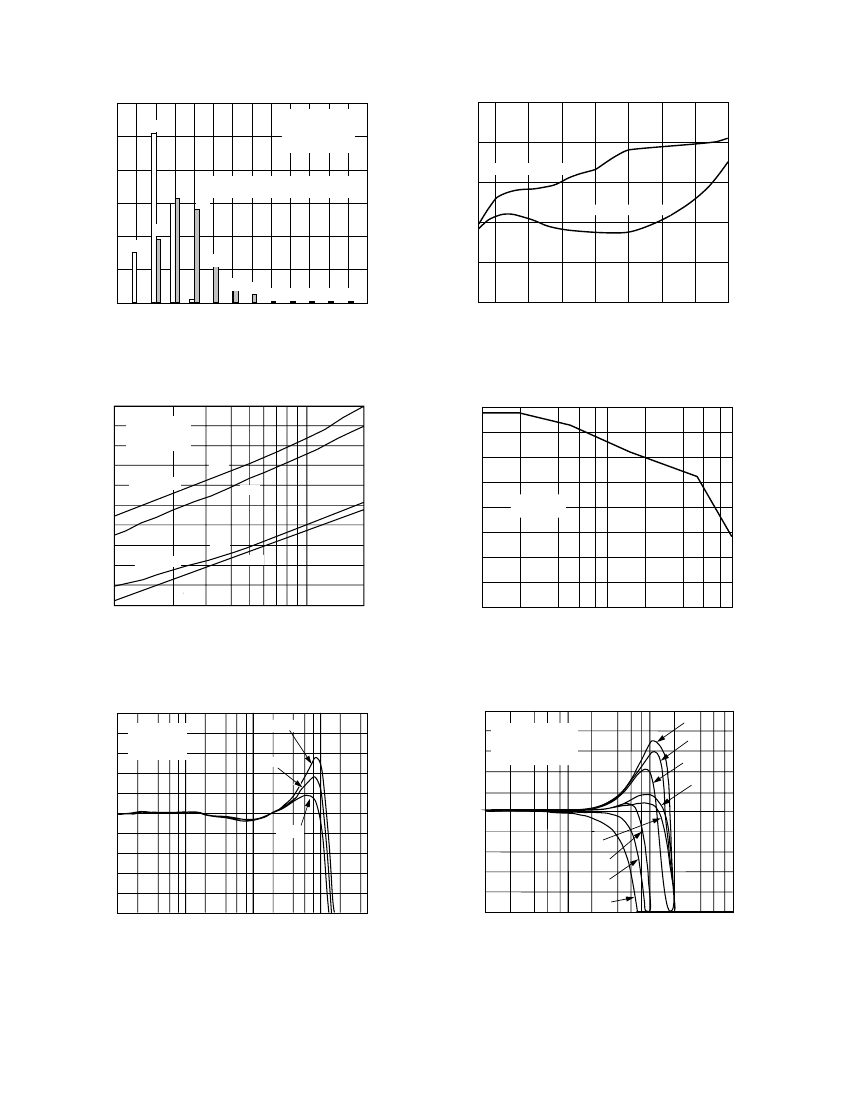

AD8010–Typical Performance Characteristics
60
dG
50
PERCENTAGE OF UNITS
SAMPLE SIZE = 300
G = +2
f = 4.43MHz (PAL)
R
L
= 18.75
DIFFERENTIAL GAIN – %
0.05
0.10
0.04
DIFFERENTIAL GAIN
0.03
DIFFERENTIAL PHASE
0.02
0.04
0.06
0.08
DIFFERENTIAL PHASE – Degrees
40
dG
d
d
DIFFERENTIAL GAIN dG IN %
DIFFERENTIAL PHASE d IN Degrees
30
20
dG
d
d
10
d
dG
0
0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13
dG (%)/d – Degrees
d
d
d
d
d
d
0.01
0.02
0
1
2
4
6
8
10
12
NUMBER OF VIDEO LOADS
14
16
0
Figure 3. Distribution of Differential Gain (dG) and
Differential Phase (d
φ
); R
L
= 18.75
Ω
Figure 6. Differential Gain and Phase vs. Number of Video
Loads Over Temperature (–40
°
C to +85
°
C); f = 4.43 MHz
–45
–50
HARMONIC DISTORTION – dBc
–55
–60
–65
–70
–75
–80
–85
–90
–95
1
2
3
4
5 6 7 8 9 10
FREQUENCY – MHz
20
R
L
= 100
3RD
2ND
R
L
= 18.75
G = +2
V
O
= 2V p-p
R
L
AS SHOWN
2ND
3RD
INTERCEPT POINT – dBm
45
40
35
30
25
20
15
10
5
1
10
FREQUENCY – MHz
100
G = +2
R
L
= 18.75
Figure 4. Harmonic Distortion vs. Frequency; G = +2
Figure 7. Two-Tone, 3rd Order IMD Intercept vs.
Frequency; G = +2, R
L
= 18.75
Ω
6.5
6.20
6.15
G = +2
R
L
= 18.75
V
O
= 0.2V p-p
+85 C
4
G = +2
V
O
= 0.2V p-p
NUMBER OF VIDEO
LOADS AS SHOWN
6.4
6.3
GAIN FLATNESS – dB
2
6
8
+25 C
GAIN FLATNESS – dB
6.10
6.05
6.0
5.95
5.90
5.85
5.80
0.1
1
10
FREQUENCY – MHz
100
500
–40 C
6.2
6.1
6.0
5.9
1
5.8
5.7
5.6
5.5
1
10
10
12
14
100
1000
FREQUENCY – MHz
Figure 5. Gain Flatness vs. Frequency Over Temperature
(–40
°
C to +85
°
C)
Figure 8. Gain Flatness vs. Frequency vs. Number of
Video Loads
–4–
REV. A

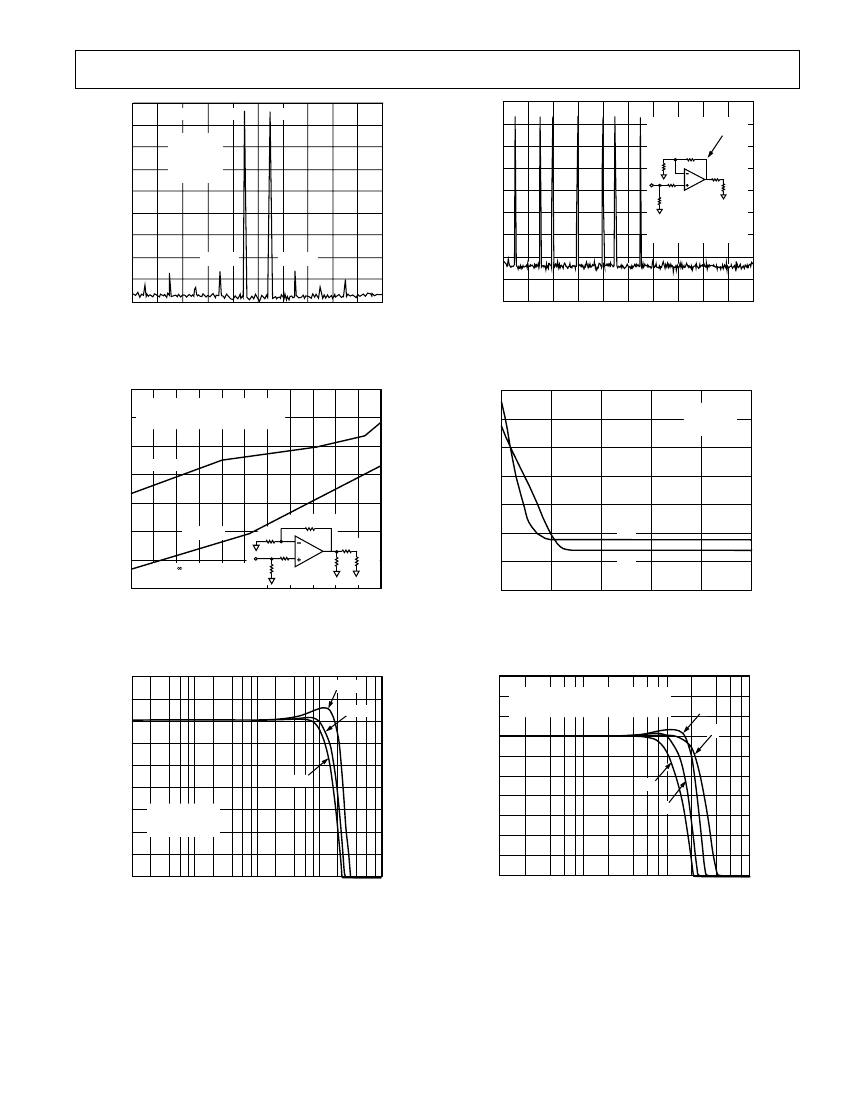

AD8010
5
P
OUT
INTERMODULATION DISTORTION – dBm
–5
–15
–25
–35
–45
–55
–65
–75
–85
4.965
4.985
5.0
5.015
FREQUENCY – MHz
5.035
–69dBm
–69dBm
G = +2
R
L
= 18.75
f
O
= 5MHz
f
= 10kHz
4dBm
4dBm
–10
–20
P
MEASURE
– dBm
–30
–40
–50
–60
–70
–80
–90
0
1
2
3
4
5
6
7
FREQUENCY – MHz
8
9
10
500kHz TONE SPACING FROM
500kHz TO 5.5MHz WITH
4 MISSING TONES
P
MEASURE
= 10dBm
(FULL SCALE)
0
GAIN = 6.6
R
F
R
G
50
150
50
50
Figure 9. Intermodulation Distortion
Figure 12. Multitone Distortion; R
L
= 100
Ω
–35
TOTAL HARMONIC DISTORTION – dBc
–45
FREQUENCY = 5MHz
G = +2
R
L
= AS SHOWN (SEE SCHEMATIC)
–55
–60
HARMONIC DISTORTION – dBc
G = +2
V
O
= 2V p-p
f = 5MHz
–55
R
L
= 18.75
–65
–75
R
F
–85
–95
R
L
= 100
R
G
150
P
IN
R
L1
= FOR R
L
= 100
R
L1
= 23.1 FOR R
L
= 18.75
–8
–6
–4
–2
0
50
R
L1
50
P
OUT
50
–65
–70
–75
–80
2
ND
3
RD
–85
–90
–105
–10
2
P
OUT
– dBm
4
6
8
10
12
15
100
200
300
LOAD –
400
500
Figure 10. Total Harmonic Distortion vs. P
OUT
; G = +2
Figure 13. Harmonic Distortion vs. Load
2
G = +1
1
G = +2
0
NORMALIZED GAIN – dB
–1
–2
–3
–4
–5
–6
–7
0.1
GAIN AS SHOWN
V
O
= 0.2V p-p
R
L
= 18.75
G = +3
GAIN – dB
8.0
7.0
6.0
5.0
4.0
12
3.0
8
2.0
1.0
0.0
1
10
100
FREQUENCY – MHz
1000
G = +2
V
O
= 0.2V p-p
NUMBER OF VIDEO LOADS AS SHOWN
4
1
1
10
FREQUENCY – MHz
100
1000
Figure 11. Small Signal Closed-Loop Frequency
Response; R
L
= 18.75
Ω
Figure 14. Closed-Loop Frequency Response vs.
Number of Video Loads
REV. A
–5–
京公网安备 11010802033920号
EEWORLD
