BZV55C18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BZV55C18

BZV55C18: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,18V V(Z),5%,DO-213AA; Categorysemiconductor Discrete semiconductor; File Size382KB，3 Pages; ManufacturerKingtronics; Websitehttp://www.kingtronics.com

Download Datasheet Parametric View All

BZV55C18 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZV55C18	-	-	View	Buy Now

BZV55C18 Overview

ZENER DIODE,SINGLE, TWO TERMINAL,18V V(Z),5%,DO-213AA

BZV55C18 Parametric

Parameter Name	Attribute value
state	CONSULT MFR
Diode type	Zener diode

Preview

Download Datasheet

View All

Website: www.kingtronics.com

Email: info@kingtronics.com

Tel: (852) 8106 7033

Fax: (852) 8106 7099

BZV55C-SERIES

SILICON PLANAR ZENER DIODES

LL-34

FEATURES

◆

Total power dissipation: max. 500 mW

◆

Two tolerance series: ± 2% and approx. ± 5%

Standard tolerance: approx. ±5% (refer to below "zener voltage

range") ; ±2% tolerance available on request.

Glass Case MiniMELF

Dimensions in mm

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings Ta=25℃

PARAMETER

Power Dissipation

Junction and

Storage Temperature Range

SYMBOL

Ptot

Tj, Tstg

VALUE

5001)

-65 to + 200

UNIT

℃

1)Valid provided that electrodes are kept at ambient temperature.

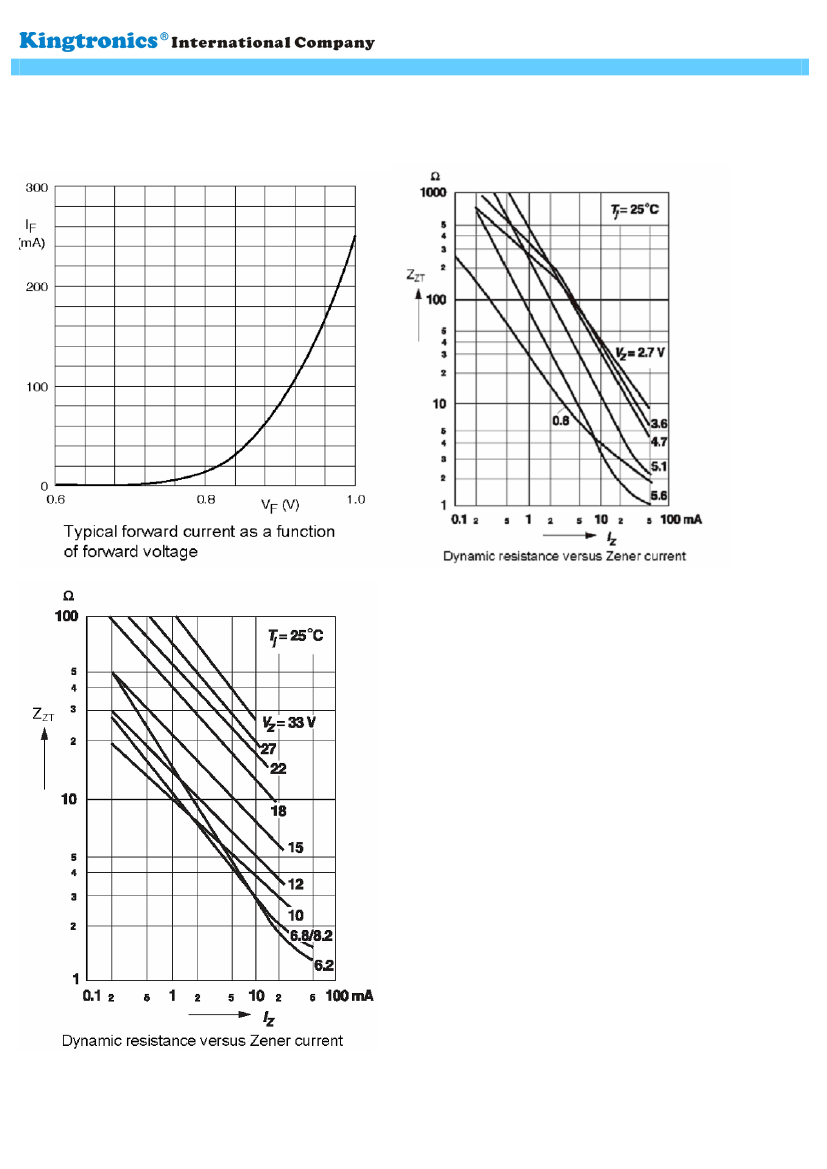

Characteristics at Ta=25℃

PARAMETER

Thermal Resistance Junction to Ambient Air

Forward Voltage at IF = 100 mA

1) Valid provided that electrodes are kept at ambient temperature.

SYMBOL

RthA

MAX

0.31)

0.9

UNIT

K/mW
