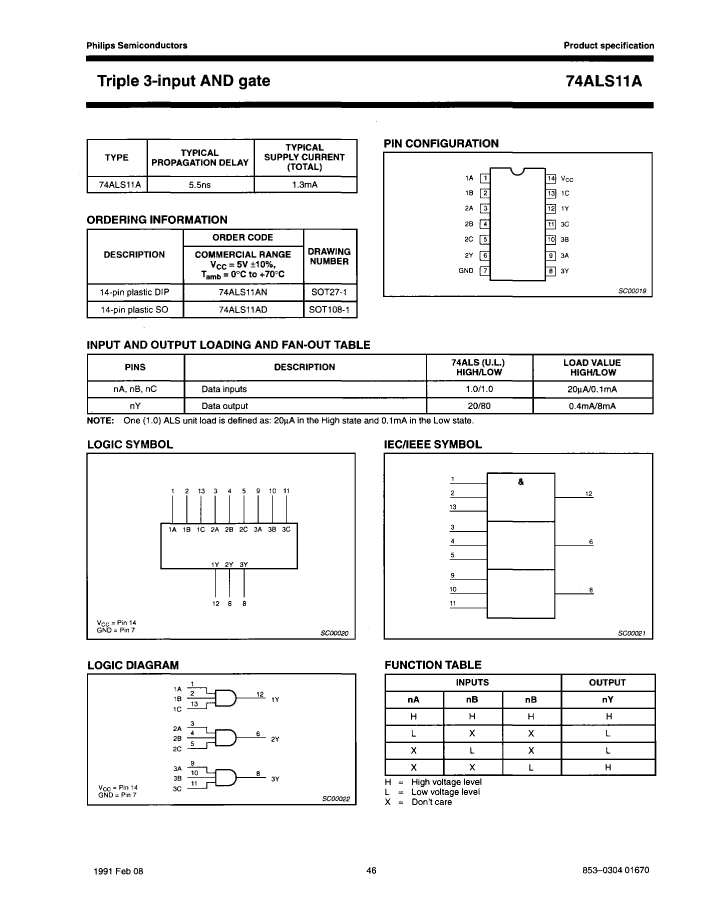

IC ALS SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, Gate

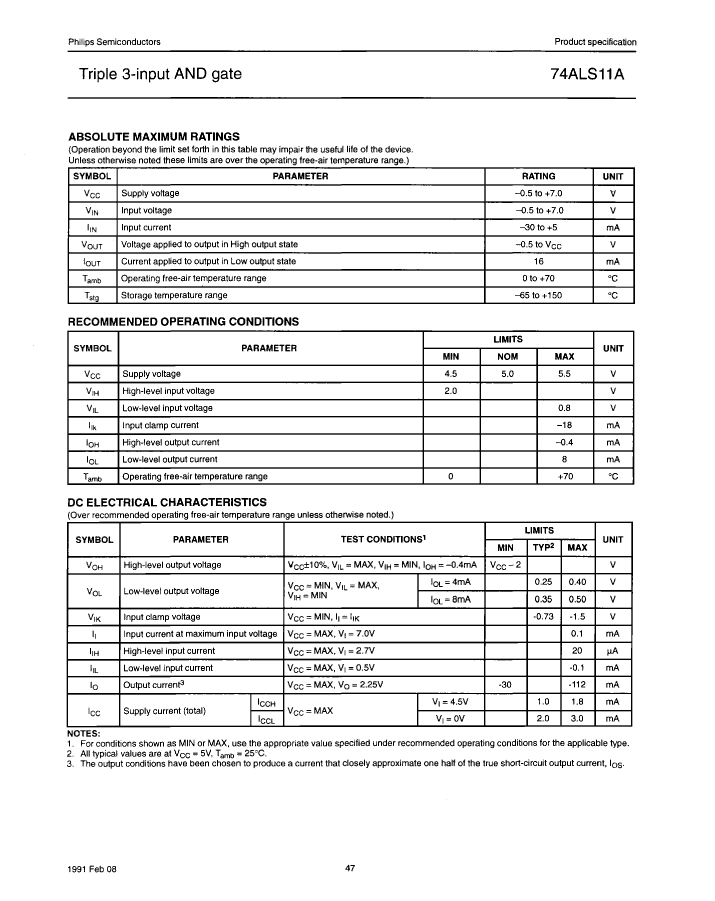

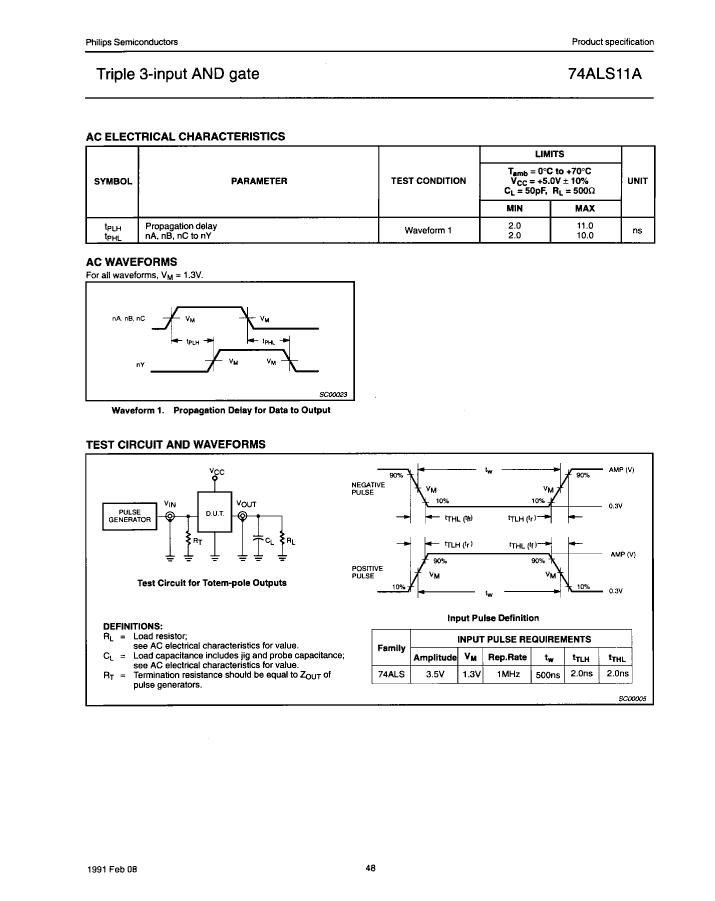

| Parameter Name | Attribute value |
| Maker | NXP |
| package instruction | SOP, |
| Reach Compliance Code | unknown |
| series | ALS |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | AND GATE |
| Number of functions | 3 |
| Number of entries | 3 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum supply current (ICC) | 3 mA |
| propagation delay (tpd) | 10 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| N74ALS11AD | N74ALS11AN | N74ALS11AD-T | |
|---|---|---|---|
| Description | IC ALS SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, Gate | IC ALS SERIES, TRIPLE 3-INPUT AND GATE, PDIP14, Gate | IC ALS SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, Gate |
| Maker | NXP | NXP | NXP |
| package instruction | SOP, | DIP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | ALS | ALS | ALS |
| JESD-30 code | R-PDSO-G14 | R-PDIP-T14 | R-PDSO-G14 |
| length | 8.65 mm | 19.025 mm | 8.65 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | AND GATE | AND GATE | AND GATE |
| Number of functions | 3 | 3 | 3 |
| Number of entries | 3 | 3 | 3 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 3 mA | 3 mA | 3 mA |
| propagation delay (tpd) | 10 ns | 10 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 4.2 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 3.9 mm | 7.62 mm | 3.9 mm |
