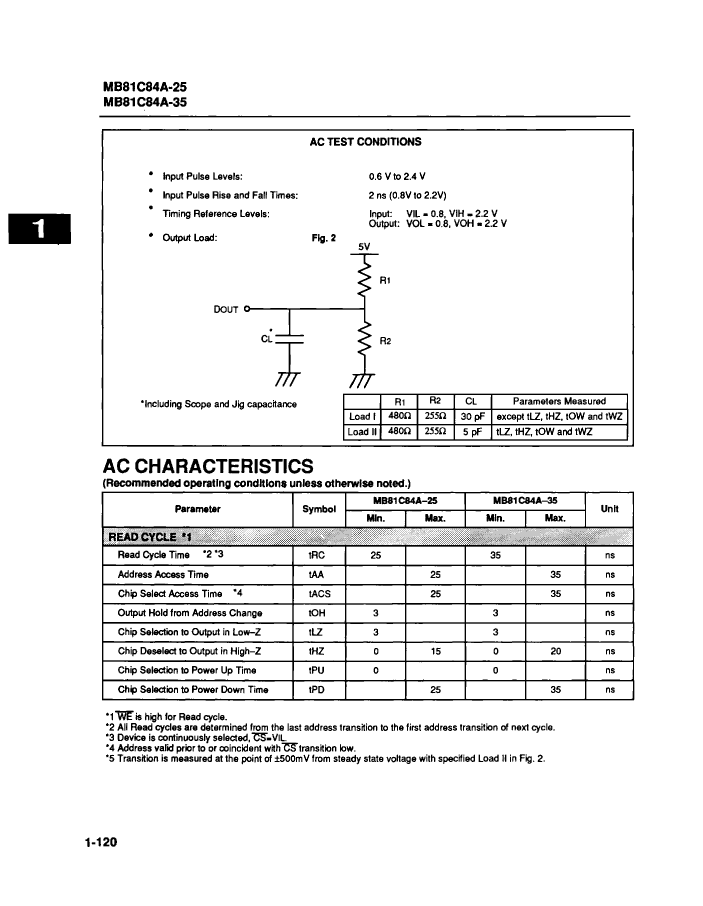

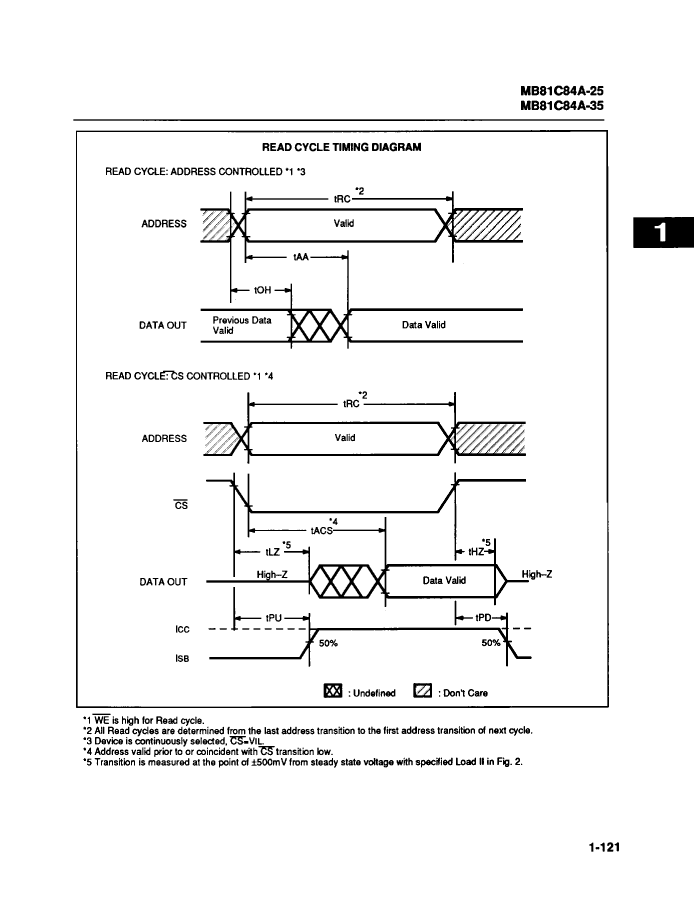

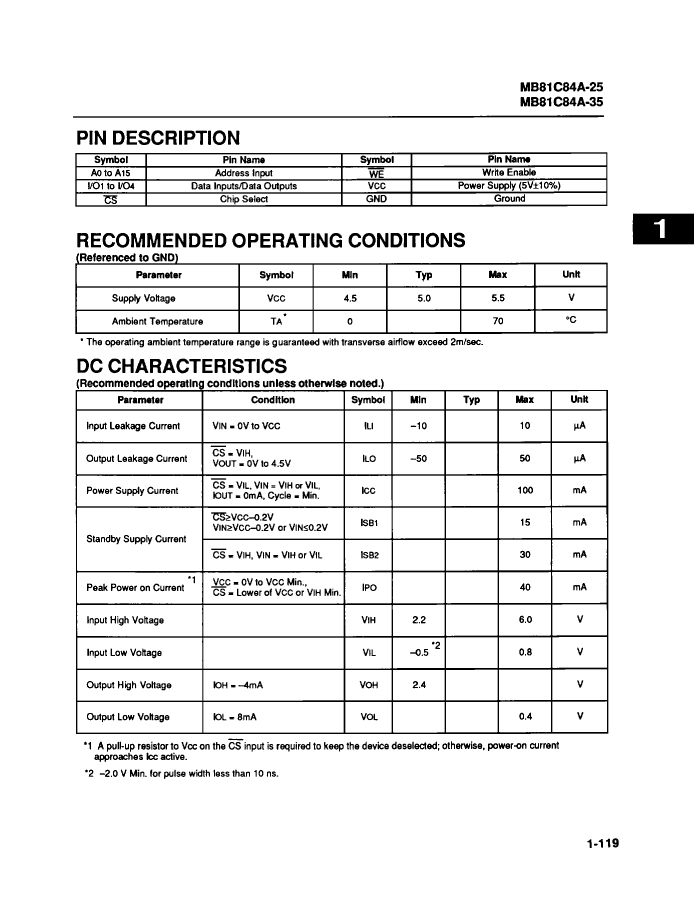

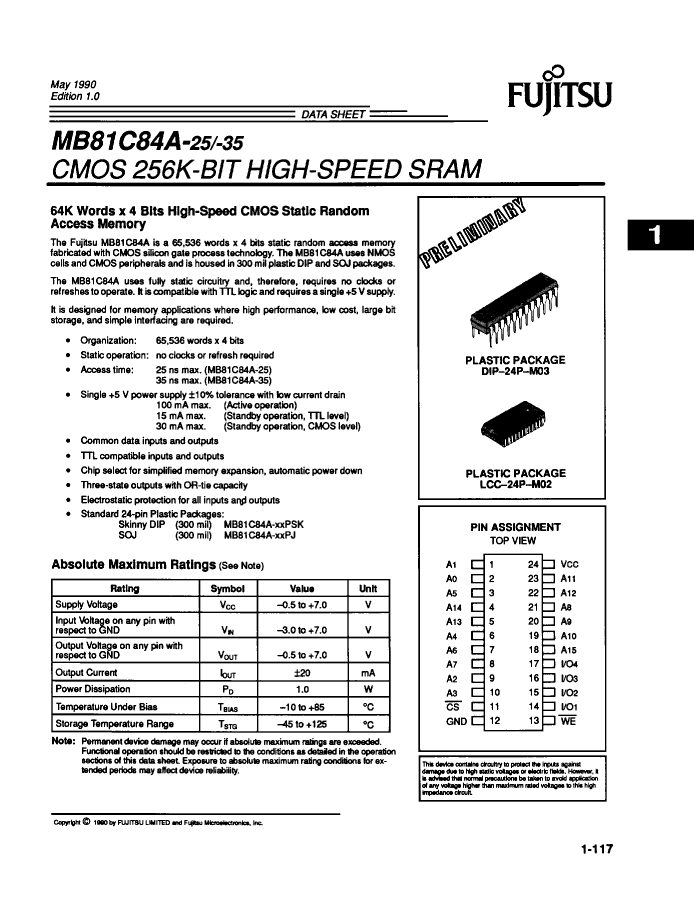

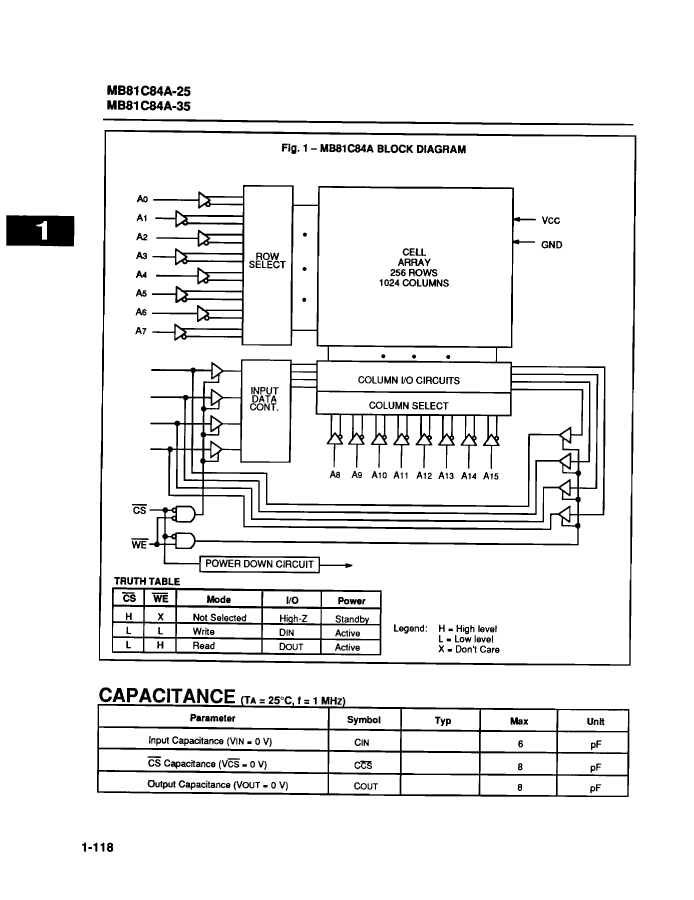

MB81C84A-25PSK: DescriptionStandard SRAM, 64KX4, 25ns, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24; Categorystorage storage; File Size201KB，10 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81C84A-25PSK Overview

Standard SRAM, 64KX4, 25ns, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24

MB81C84A-25PSK Parametric

Parameter Name	Attribute value
Objectid	1401378421
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	25 ns
JESD-30 code	R-PDIP-T24
length	29.72 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.36 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

MB81C84A-25PSK Related Products

	MB81C84A-25PSK	MB81C84A-25PJ	MB81C84A-35PJ	MB81C84A-35PSK
Description	Standard SRAM, 64KX4, 25ns, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24	Standard SRAM, 64KX4, 25ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 64KX4, 35ns, CMOS, PDSO24,	64KX4 STANDARD SRAM, 35ns, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24
package instruction	DIP,	SOJ,	SOP, SOP24,.4	DIP,
Reach Compliance Code	unknown	unknown	compliant	unknow
Maximum access time	25 ns	25 ns	35 ns	35 ns
JESD-30 code	R-PDIP-T24	R-PDSO-J24	R-PDSO-G24	R-PDIP-T24
memory density	262144 bit	262144 bit	262144 bit	262144 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of terminals	24	24	24	24
word count	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOJ	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
ECCN code	EAR99	EAR99	-	EAR99
length	29.72 mm	15.62 mm	-	29.72 mm
Number of functions	1	1	-	1
Number of ports	1	1	-	1
Exportable	NO	NO	-	NO
Maximum seat height	4.36 mm	3.66 mm	-	4.36 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
width	7.62 mm	7.62 mm	-	7.62 mm
