P29C53AA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> P29C53AA

P29C53AA: DescriptionDigital Transmission Interface, Basic, CMOS, PDIP28; CategoryWireless rf/communication Telecom circuit; File Size2MB，25 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

P29C53AA Overview

Digital Transmission Interface, Basic, CMOS, PDIP28

P29C53AA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP28,.6
Reach Compliance Code	compli
data rate	144 Mbps
ISDN access rate	BASIC
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output low current	0.002 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
reference point	S
standard	CCITT I.430
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

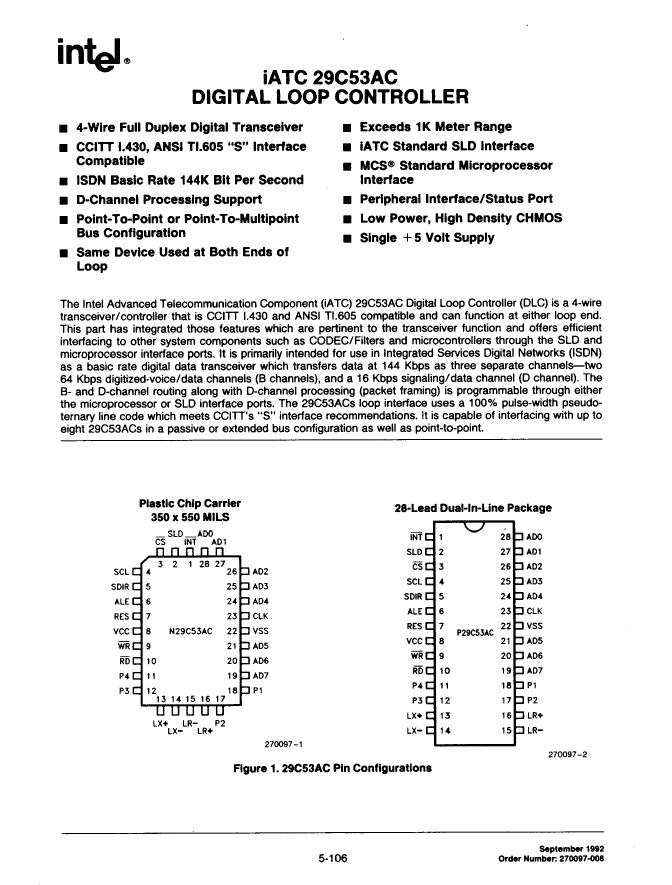

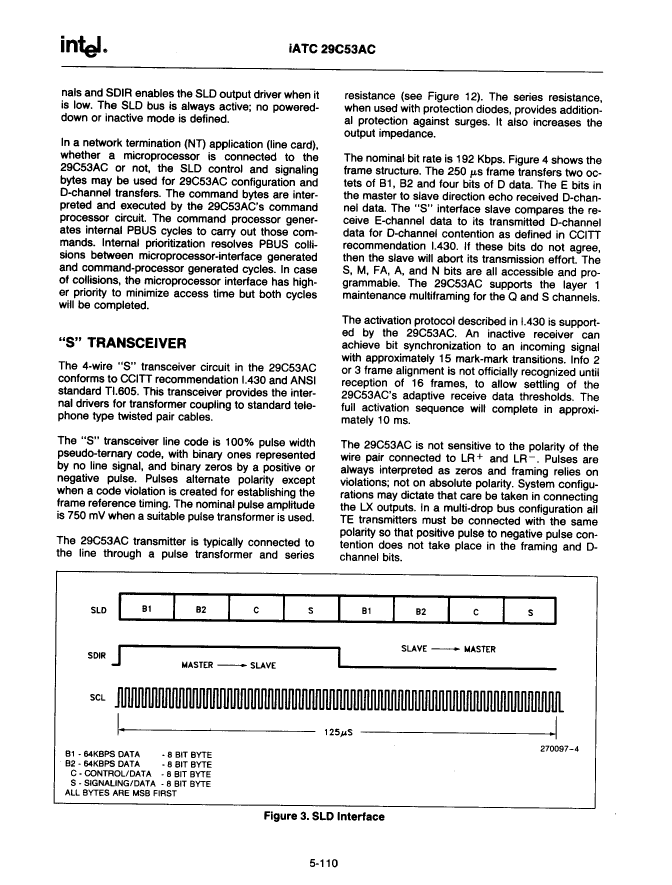

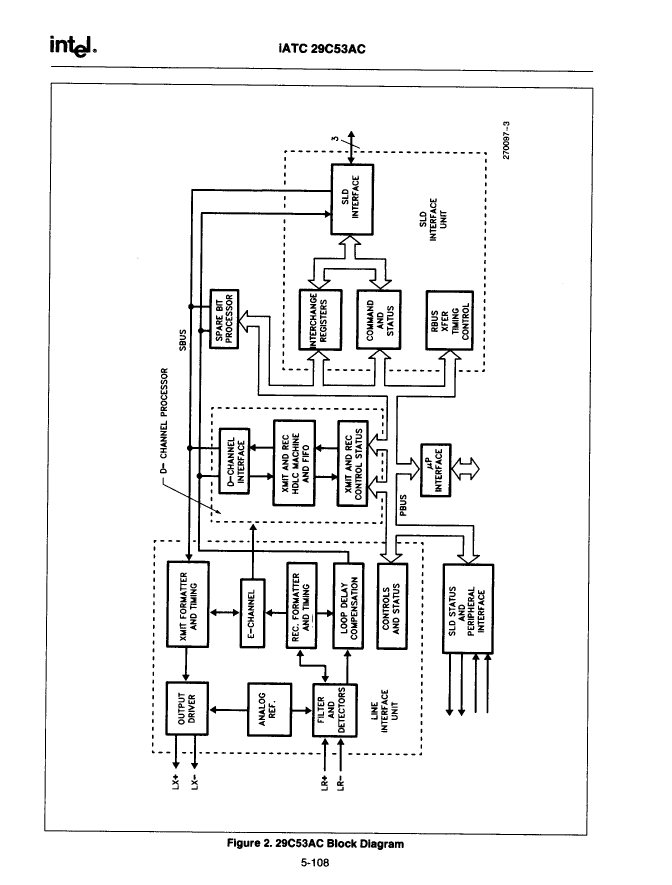

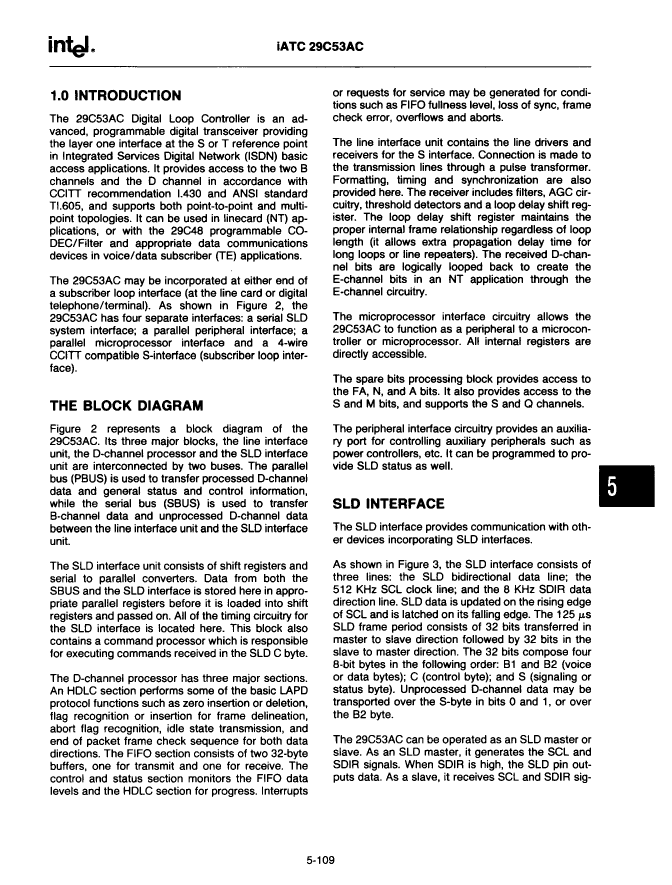

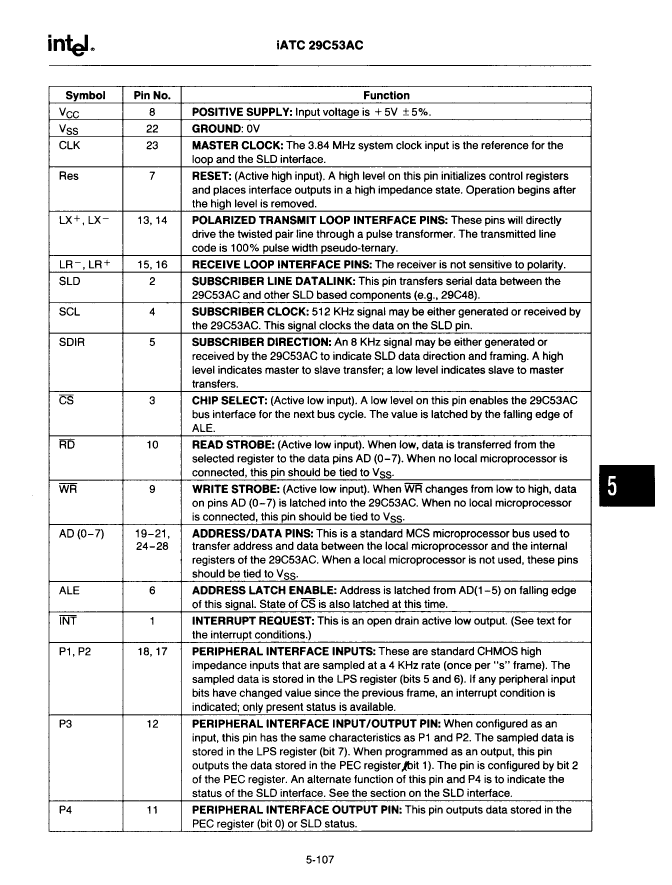

Preview

Download Datasheet

View All

P29C53AA Related Products

	P29C53AA	P29C53SZ128	N29C53AC	P29C53AC	P29C53SZ036	P29C53	N29C53	D29C53	N29C53AA
Description	Digital Transmission Interface, Basic, CMOS, PDIP28	Digital Transmission Interface, Basic, CMOS, PDIP28	Digital Transmission Interface, Basic, CMOS, PQCC28	Digital Transmission Interface, Basic, CMOS, PDIP28	Digital Transmission Interface, Basic, CMOS, PDIP28	Digital Transmission Interface, Basic, CMOS, PDIP28	Digital Transmission Interface, Basic, CMOS, PQCC28	Digital Transmission Interface, Basic, CMOS, CDIP28	Digital Transmission Interface, Basic, CMOS, PQCC28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compli	compli	compli	unknow	unknow	compli	compliant
data rate	144 Mbps	144 Mbps	144 Mbps	144 Mbps	144 Mbps	144 Mbps	144 Mbps	144 Mbps	144 Mbps
ISDN access rate	BASIC	BASIC	BASIC	BASIC	BASIC	BASIC	BASIC	BASIC	BASIC
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PQCC-J28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PQCC-J28	R-XDIP-T28	R-PQCC-J28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	28	28	28	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Maximum output low current	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A	0.002 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	DIP	DIP	QCCJ	DIP	QCCJ
Encapsulate equivalent code	DIP28,.6	DIP28,.6	LDCC28,.4X.6	DIP28,.6	DIP28,.6	DIP28,.6	LDCC28,.4X.6	DIP28,.6	LDCC28,.4X.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
reference point	S	S	S	S	S	S	S	S	S
standard	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430	CCITT I.430
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	-	-	DIP, DIP28,.6	DIP, DIP28,.6	QCCJ, LDCC28,.4X.6	DIP, DIP28,.6	QCCJ, LDCC28,.4X.6
Base Number Matches	1	1	1	1	1	1	1	1	-
